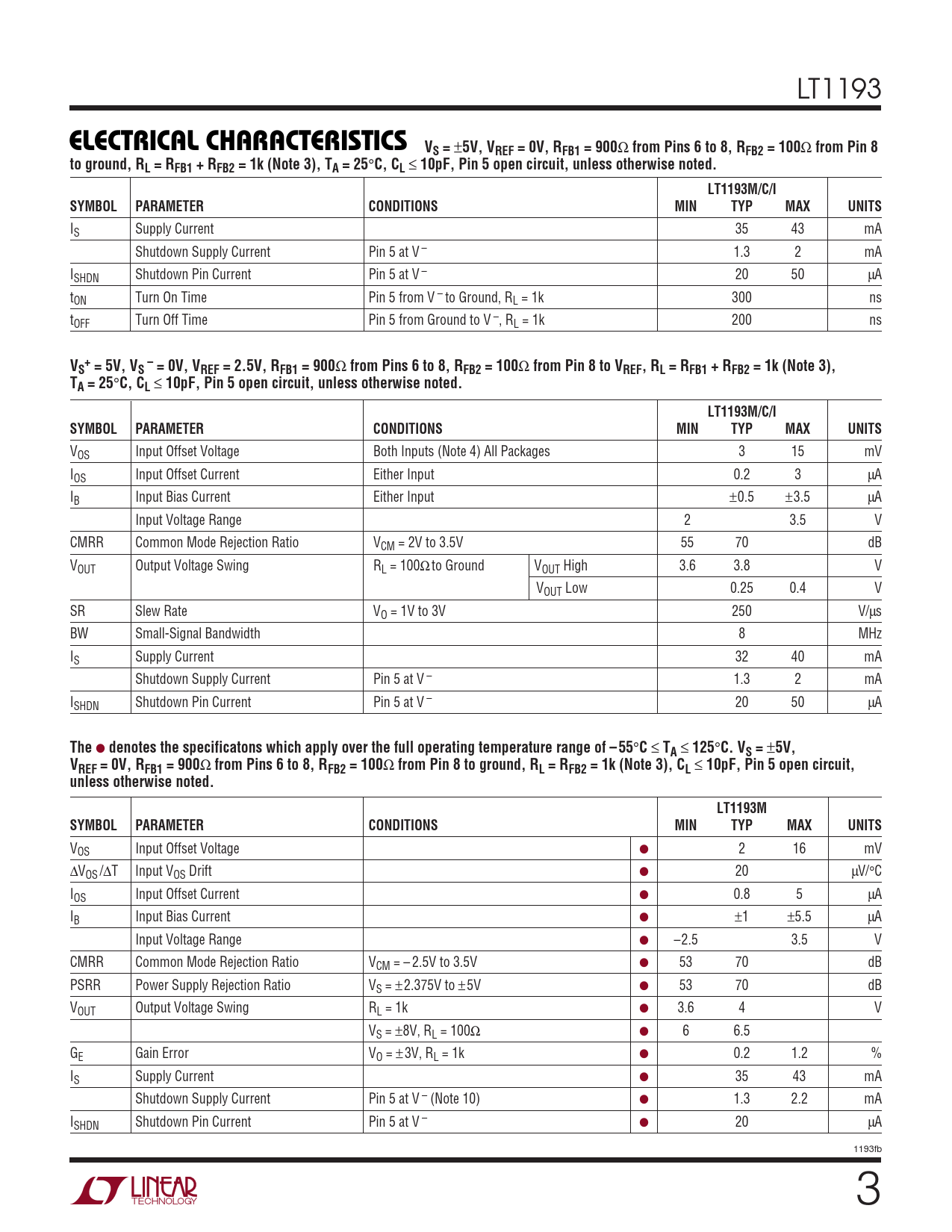

ELECTRICAL CHARACTERISTICS S =. 5V, VREF = 0V, RFB1 = 900. from Pins 6 to 8, RFB2 = 100. from Pin 8
Model Line for this Datasheet
Text Version of Document
LT1193
V ELECTRICAL CHARACTERISTICS S =
±
5V, VREF = 0V, RFB1 = 900
Ω
from Pins 6 to 8, RFB2 = 100
Ω
from Pin 8 to ground, RL = RFB1 + RFB2 = 1k (Note 3), TA = 25
°
C, CL
≤
10pF, Pin 5 open circuit, unless otherwise noted. LT1193M/C/I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current 35 43 mA Shutdown Supply Current Pin 5 at V – 1.3 2 mA ISHDN Shutdown Pin Current Pin 5 at V – 20 50 µA tON Turn On Time Pin 5 from V – to Ground, RL = 1k 300 ns tOFF Turn Off Time Pin 5 from Ground to V –, RL = 1k 200 ns
V + – S = 5V, VS = 0V, VREF = 2.5V, RFB1 = 900
Ω
from Pins 6 to 8, RFB2 = 100
Ω
from Pin 8 to VREF, RL = RFB1 + RFB2 = 1k (Note 3), TA = 25
°
C, CL
≤
10pF, Pin 5 open circuit, unless otherwise noted. LT1193M/C/I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage Both Inputs (Note 4) All Packages 3 15 mV IOS Input Offset Current Either Input 0.2 3 µA IB Input Bias Current Either Input ±0.5 ±3.5 µA Input Voltage Range 2 3.5 V CMRR Common Mode Rejection Ratio VCM = 2V to 3.5V 55 70 dB VOUT Output Voltage Swing RL = 100Ω to Ground VOUT High 3.6 3.8 V VOUT Low 0.25 0.4 V SR Slew Rate VO = 1V to 3V 250 V/µs BW Small-Signal Bandwidth 8 MHz IS Supply Current 32 40 mA Shutdown Supply Current Pin 5 at V – 1.3 2 mA ISHDN Shutdown Pin Current Pin 5 at V – 20 50 µA
The
●
denotes the specificatons which apply over the full operating temperature range of – 55
°
C
≤
TA
≤
125
°
C. VS =
±
5V, VREF = 0V, RFB1 = 900
Ω
from Pins 6 to 8, RFB2 = 100
Ω
from Pin 8 to ground, RL = RFB2 = 1k (Note 3), CL
≤
10pF, Pin 5 open circuit, unless otherwise noted. LT1193M SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 2 16 mV ∆VOS/∆T Input VOS Drift ● 20 µV/°C IOS Input Offset Current ● 0.8 5 µA IB Input Bias Current ● ±1 ±5.5 µA Input Voltage Range ● –2.5 3.5 V CMRR Common Mode Rejection Ratio VCM = – 2.5V to 3.5V ● 53 70 dB PSRR Power Supply Rejection Ratio VS = ±2.375V to ±5V ● 53 70 dB VOUT Output Voltage Swing RL = 1k ● 3.6 4 V VS = ±8V, RL = 100Ω ● 6 6.5 GE Gain Error VO = ± 3V, RL = 1k ● 0.2 1.2 % IS Supply Current ● 35 43 mA Shutdown Supply Current Pin 5 at V – (Note 10) ● 1.3 2.2 mA ISHDN Shutdown Pin Current Pin 5 at V – ● 20 µA 1193fb 3
