LT6018

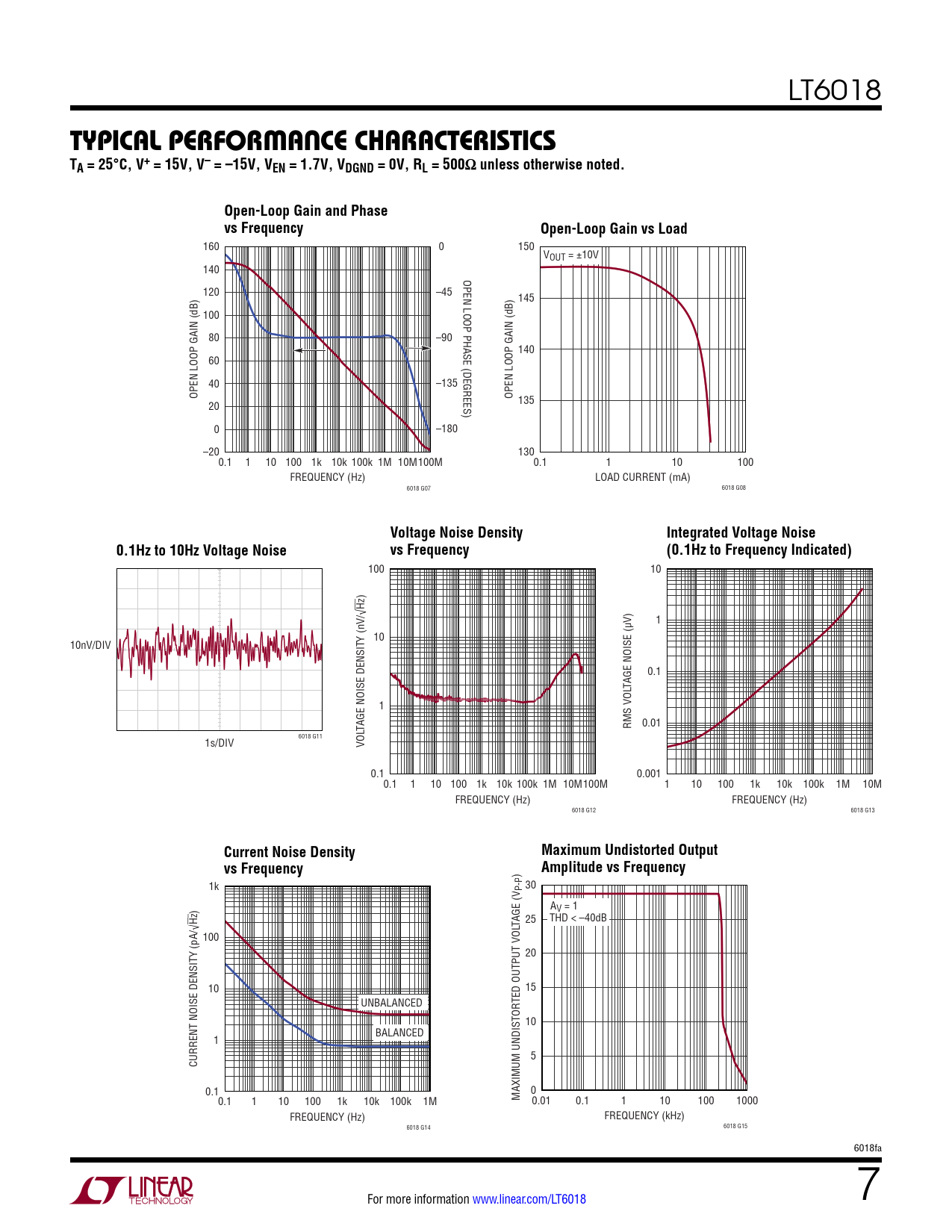

Typical perForMance characTerisTics TA = 25°C, V+ = 15V, V– = –15V, VEN = 1.7V, VDGND = 0V, RL = 500Ω unless otherwise noted. Open-Loop Gain and Phase vs Frequency Open-Loop Gain vs Load
160 0 150 VOUT = ±10V 140 OPEN LOOP PHASE (DEGREES) 120 –45 145 100 80 –90 140 60 40 –135 OPEN LOOP GAIN (dB) OPEN LOOP GAIN (dB) 20 135 0 –180 –20 130 0.1 1 10 100 1k 10k 100k 1M 10M100M 0.1 1 10 100 FREQUENCY (Hz) LOAD CURRENT (mA) 6018 G07 6018 G08
Voltage Noise Density Integrated Voltage Noise 0.1Hz to 10Hz Voltage Noise vs Frequency (0.1Hz to Frequency Indicated)
100 10 ) Hz /√ V) 1 Y (nV 10 10nV/DIV 0.1 TAGE NOISE (µ 1 TAGE NOISE DENSIT RMS VOL 0.01 1s/DIV 6018 G11 VOL 0.1 0.001 0.1 1 10 100 1k 10k 100k 1M 10M100M 1 10 100 1k 10k 100k 1M 10M FREQUENCY (Hz) FREQUENCY (Hz) 6018 G12 6018 G13
Current Noise Density Maximum Undistorted Output vs Frequency Amplitude vs Frequency
) 1k P-P 30 A ) V = 1 Hz 25 TAGE (V THD < –40dB 100 Y (pA/√ 20 10 15 TED OUTPUT VOL UNBALANCED 10 BALANCED 1 5 CURRENT NOISE DENSIT 0.1 0 MAXIMUM UNDISTOR 0.1 1 10 100 1k 10k 100k 1M 0.01 0.1 1 10 100 1000 FREQUENCY (Hz) FREQUENCY (kHz) 6018 G14 6018 G15 6018fa For more information www.linear.com/LT6018 7 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
