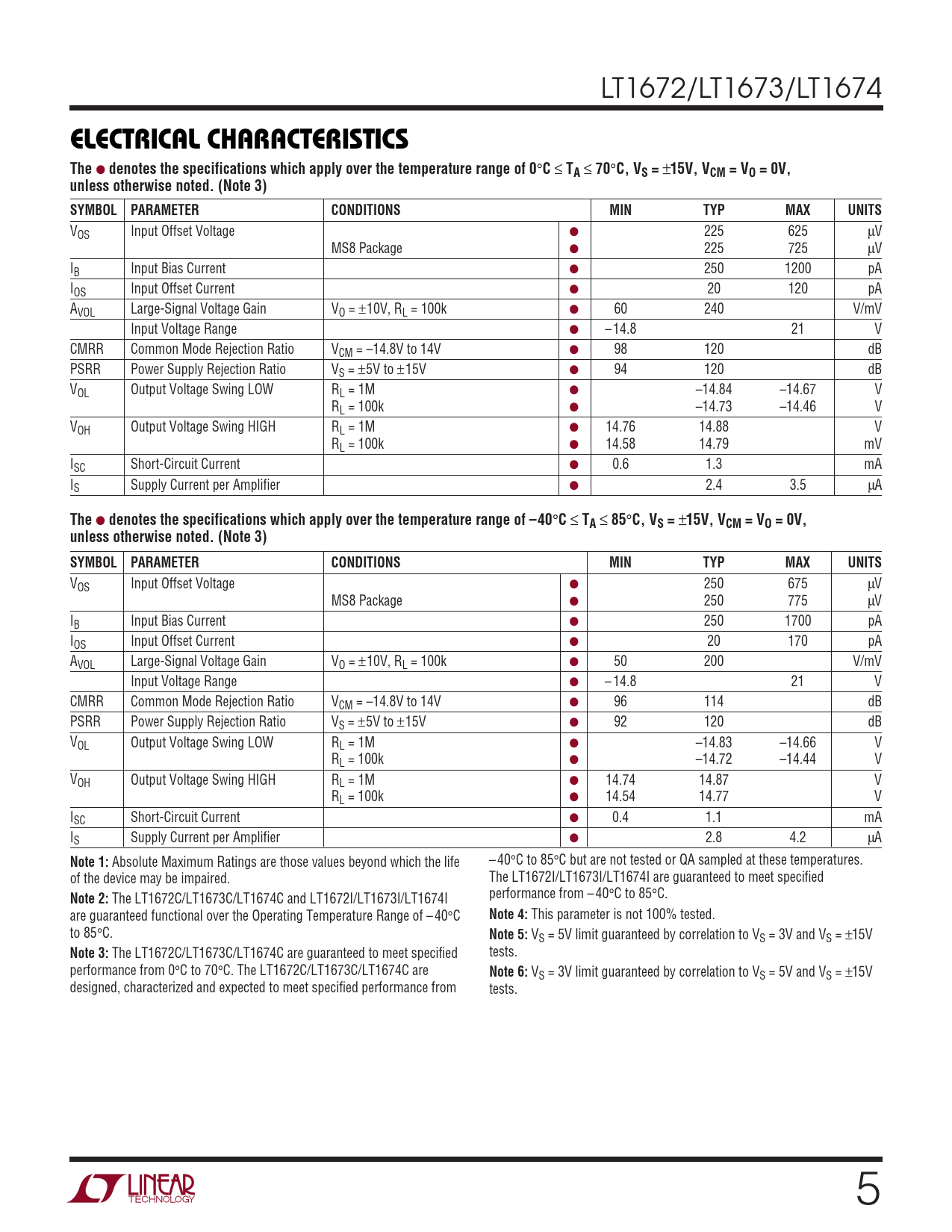

LT1672/LT1673/LT1674
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range of 0
°
C
≤
TA
≤
70
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 225 625 µV MS8 Package ● 225 725 µV IB Input Bias Current ● 250 1200 pA IOS Input Offset Current ● 20 120 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 60 240 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 98 120 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 94 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.84 –14.67 V RL = 100k ● –14.73 –14.46 V VOH Output Voltage Swing HIGH RL = 1M ● 14.76 14.88 V RL = 100k ● 14.58 14.79 mV ISC Short-Circuit Current ● 0.6 1.3 mA IS Supply Current per Amplifier ● 2.4 3.5 µA
The
●
denotes the specifications which apply over the temperature range of –40
°
C
≤
TA
≤
85
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 250 675 µV MS8 Package ● 250 775 µV IB Input Bias Current ● 250 1700 pA IOS Input Offset Current ● 20 170 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 50 200 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 96 114 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 92 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.83 –14.66 V RL = 100k ● –14.72 –14.44 V VOH Output Voltage Swing HIGH RL = 1M ● 14.74 14.87 V RL = 100k ● 14.54 14.77 V ISC Short-Circuit Current ● 0.4 1.1 mA IS Supply Current per Amplifier ● 2.8 4.2 µA
Note 1:
Absolute Maximum Ratings are those values beyond which the life – 40°C to 85°C but are not tested or QA sampled at these temperatures. of the device may be impaired. The LT1672I/LT1673I/LT1674I are guaranteed to meet specified
Note 2:
The LT1672C/LT1673C/LT1674C and LT1672I/LT1673I/LT1674I performance from – 40°C to 85°C. are guaranteed functional over the Operating Temperature Range of – 40°C
Note 4:
This parameter is not 100% tested. to 85°C.
Note 5:
VS = 5V limit guaranteed by correlation to VS = 3V and VS = ±15V
Note 3:
The LT1672C/LT1673C/LT1674C are guaranteed to meet specified tests. performance from 0°C to 70°C. The LT1672C/LT1673C/LT1674C are
Note 6:
VS = 3V limit guaranteed by correlation to VS = 5V and VS = ±15V designed, characterized and expected to meet specified performance from tests. 5
