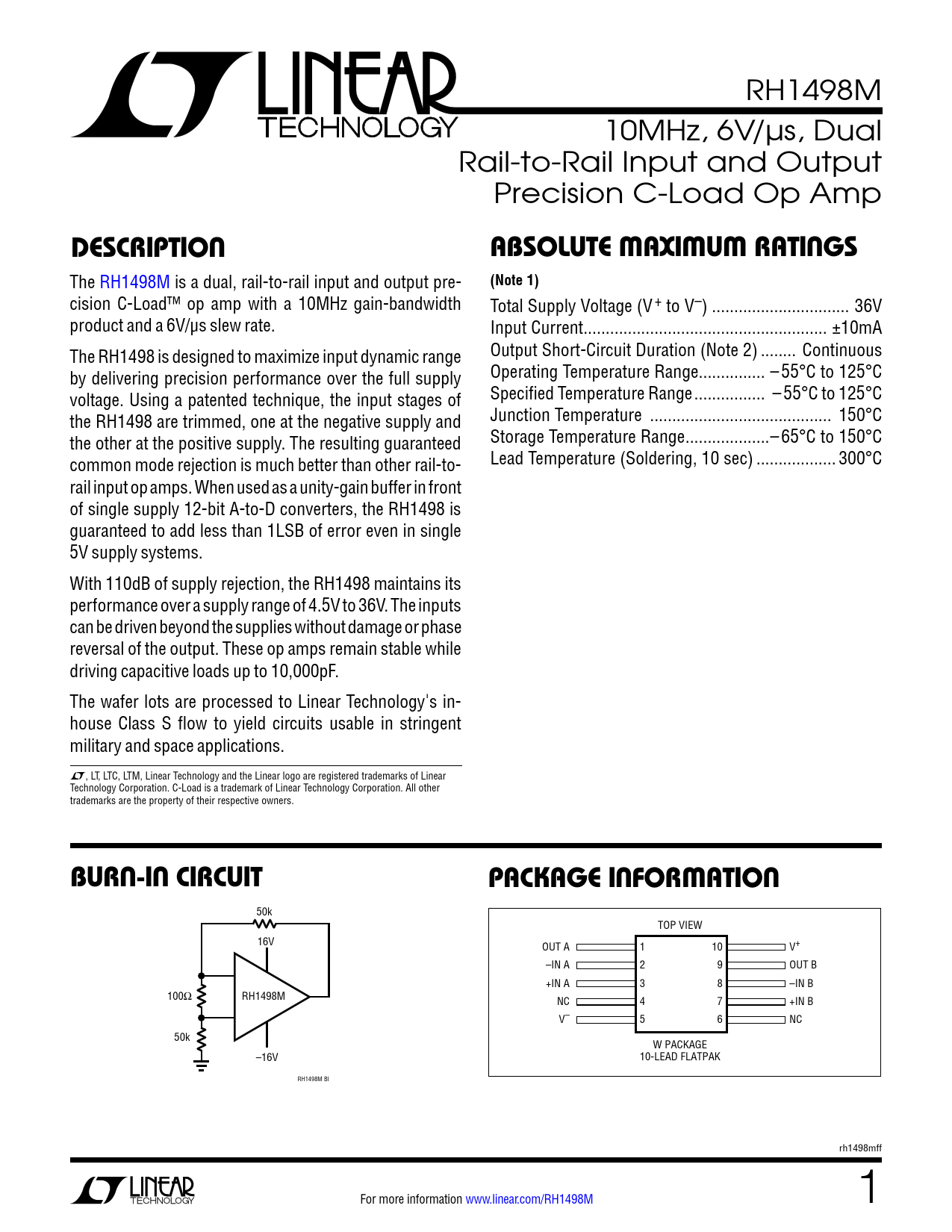

RH1498M 10MHz, 6V/µs, Dual Rail-to-Rail Input and Output Precision C-Load Op Amp
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH1498M is a dual, rail-to-rail input and output pre-
(Note 1)
cision C-Load™ op amp with a 10MHz gain-bandwidth Total Supply Voltage (V+ to V–) ... 36V product and a 6V/µs slew rate. Input Current ... ±10mA Output Short-Circuit Duration (Note 2) .. Continuous The RH1498 is designed to maximize input dynamic range Operating Temperature Range... –55°C to 125°C by delivering precision performance over the ful supply Specified Temperature Range .. –55°C to 125°C voltage. Using a patented technique, the input stages of Junction Temperature ... 150°C the RH1498 are trimmed, one at the negative supply and Storage Temperature Range ...–65°C to 150°C the other at the positive supply. The resulting guaranteed Lead Temperature (Soldering, 10 sec) .. 300°C common mode rejection is much better than other rail-to- rail input op amps. When used as a unity-gain buffer in front of single supply 12-bit A-to-D converters, the RH1498 is guaranteed to add less than 1LSB of error even in single 5V supply systems. With 110dB of supply rejection, the RH1498 maintains its performance over a supply range of 4.5V to 36V. The inputs can be driven beyond the supplies without damage or phase reversal of the output. These op amps remain stable while driving capacitive loads up to 10,000pF. The wafer lots are processed to Linear Technology's in- house Class S flow to yield circuits usable in stringent military and space applications. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. C-Load is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
BURN-IN CIRCUIT PACKAGE INFORMATION
50k TOP VIEW 16V OUT A 1 10 V+ –IN A 2 9 OUT B +IN A 3 8 –IN B 100Ω RH1498M NC 4 7 +IN B V– 5 6 NC 50k W PACKAGE –16V 10-LEAD FLATPAK RH1498M BI rh1498mff For more information www.linear.com/RH1498M 1 Document Outline Description Absolute Maximum Ratings Burn-In Circuit Package Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Characteristics Table 2A: Electrical Characteristics TYPICAL PERFORMANCE CHARACTERISTICS
