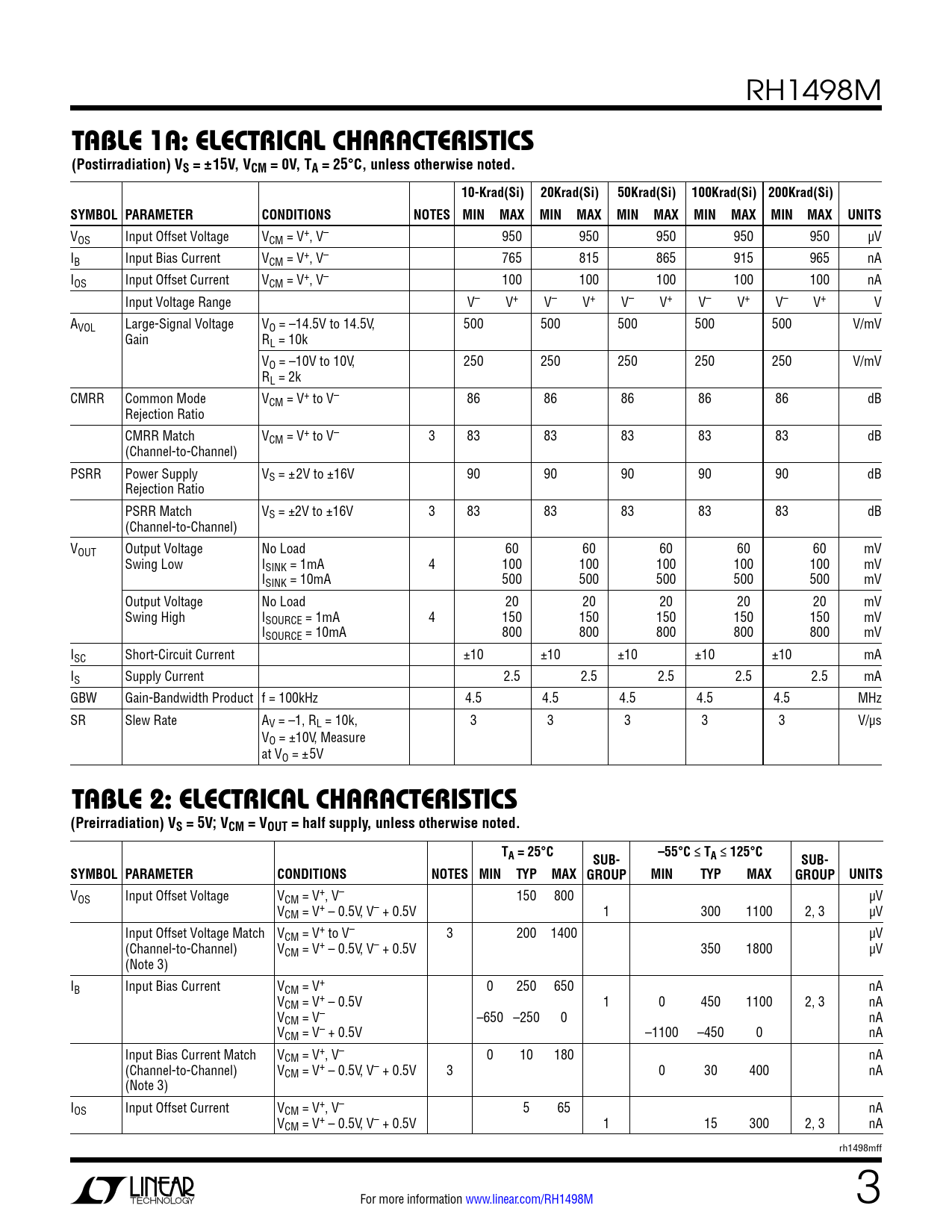

TABLE 1A: ELECTRICAL CHARACTERISTICS. (Postirradiation) VS = ±15V, VCM = 0V, TA = 25°C, unless otherwise noted
Model Line for this Datasheet
Text Version of Document
RH1498M
TABLE 1A: ELECTRICAL CHARACTERISTICS (Postirradiation) VS = ±15V, VCM = 0V, TA = 25°C, unless otherwise noted. 10-Krad(Si) 20Krad(Si) 50Krad(Si) 100Krad(Si) 200Krad(Si) SYMBOL PARAMETER CONDITIONS NOTES MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX UNITS
VOS Input Offset Voltage VCM = V+, V– 950 950 950 950 950 µV IB Input Bias Current VCM = V+, V– 765 815 865 915 965 nA IOS Input Offset Current VCM = V+, V– 100 100 100 100 100 nA Input Voltage Range V– V+ V– V+ V– V+ V– V+ V– V+ V AVOL Large-Signal Voltage VO = –14.5V to 14.5V, 500 500 500 500 500 V/mV Gain RL = 10k VO = –10V to 10V, 250 250 250 250 250 V/mV RL = 2k CMRR Common Mode VCM = V+ to V– 86 86 86 86 86 dB Rejection Ratio CMRR Match VCM = V+ to V– 3 83 83 83 83 83 dB (Channel-to-Channel) PSRR Power Supply VS = ±2V to ±16V 90 90 90 90 90 dB Rejection Ratio PSRR Match VS = ±2V to ±16V 3 83 83 83 83 83 dB (Channel-to-Channel) VOUT Output Voltage No Load 60 60 60 60 60 mV Swing Low ISINK = 1mA 4 100 100 100 100 100 mV ISINK = 10mA 500 500 500 500 500 mV Output Voltage No Load 20 20 20 20 20 mV Swing High ISOURCE = 1mA 4 150 150 150 150 150 mV ISOURCE = 10mA 800 800 800 800 800 mV ISC Short-Circuit Current ±10 ±10 ±10 ±10 ±10 mA IS Supply Current 2.5 2.5 2.5 2.5 2.5 mA GBW Gain-Bandwidth Product f = 100kHz 4.5 4.5 4.5 4.5 4.5 MHz SR Slew Rate AV = –1, RL = 10k, 3 3 3 3 3 V/µs VO = ±10V, Measure at VO = ±5V
TABLE 2: ELECTRICAL CHARACTERISTICS (Preirradiation) VS = 5V; VCM = VOUT = half supply, unless otherwise noted. TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VOS Input Offset Voltage VCM = V+, V– 150 800 µV VCM = V+ – 0.5V, V– + 0.5V 1 300 1100 2, 3 µV Input Offset Voltage Match VCM = V+ to V– 3 200 1400 µV (Channel-to-Channel) VCM = V+ – 0.5V, V– + 0.5V 350 1800 µV (Note 3) IB Input Bias Current VCM = V+ 0 250 650 nA VCM = V+ – 0.5V 1 0 450 1100 2, 3 nA VCM = V– –650 –250 0 nA VCM = V– + 0.5V –1100 –450 0 nA Input Bias Current Match VCM = V+, V– 0 10 180 nA (Channel-to-Channel) VCM = V+ – 0.5V, V– + 0.5V 3 0 30 400 nA (Note 3) IOS Input Offset Current VCM = V+, V– 5 65 nA VCM = V+ – 0.5V, V– + 0.5V 1 15 300 2, 3 nA rh1498mff For more information www.linear.com/RH1498M 3 Document Outline Description Absolute Maximum Ratings Burn-In Circuit Package Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Characteristics Table 2A: Electrical Characteristics TYPICAL PERFORMANCE CHARACTERISTICS
