| Description | 10MHz, 6V/µs, Dual Rail-to-Rail Input and Output Precision C-Load Op Amp |
| Pages / Page | 8 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. Input Bias Current. Supply Current … |
| File Format / Size | PDF / 130 Kb |
| Document Language | English |

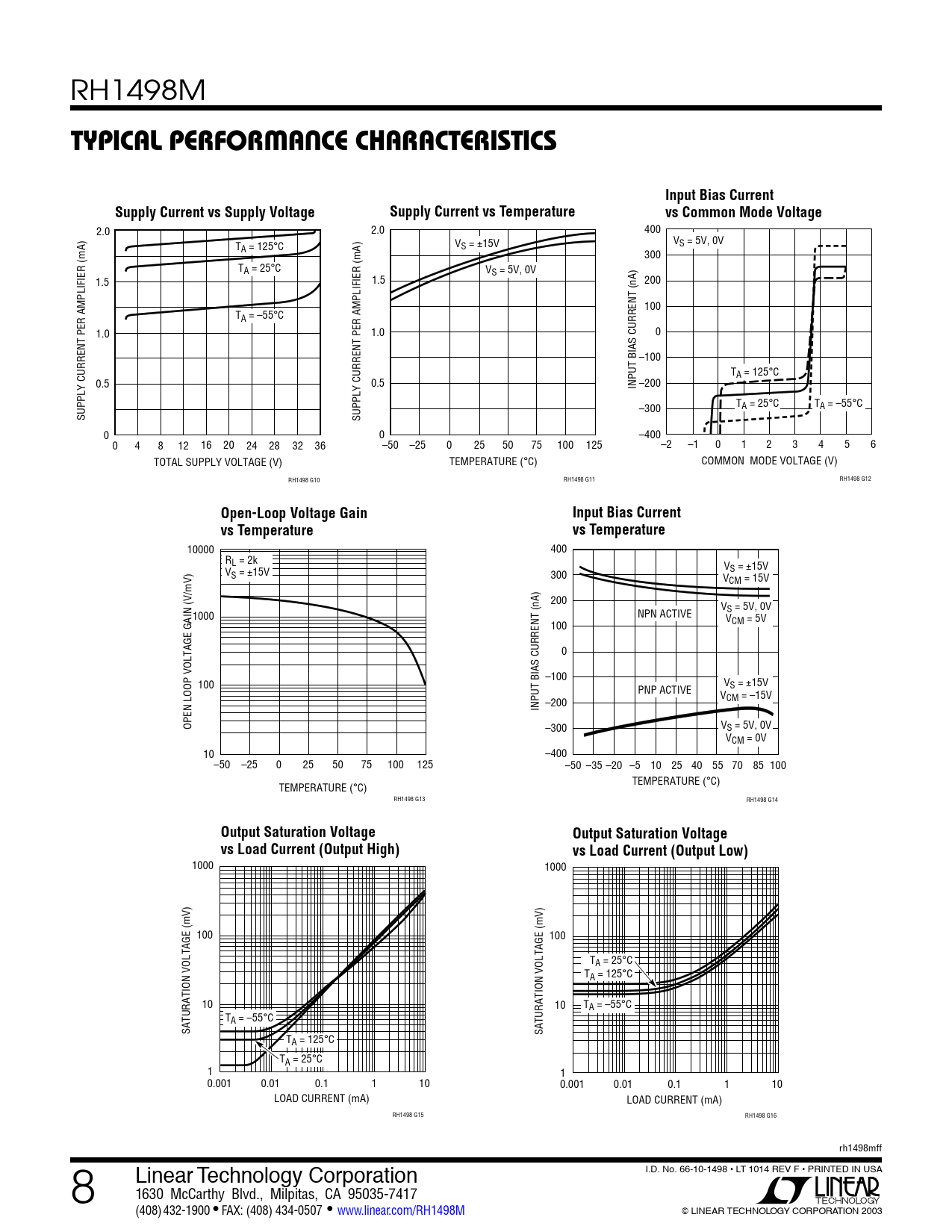

TYPICAL PERFORMANCE CHARACTERISTICS. Input Bias Current. Supply Current vs Supply Voltage. Supply Current vs Temperature
