Datasheet LT1366, LT1367, LT1368, LT1369 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Dual and Quad Precision Rail-to-Rail Input and Output Op Amps |
| Pages / Page | 20 / 1 — Input Common Mode Range Includes Both Rails. Output Swings Rail-to-Rail. … |
| File Format / Size | PDF / 396 Kb |
| Document Language | English |
Input Common Mode Range Includes Both Rails. Output Swings Rail-to-Rail. Low Input Offset Voltage: 150µV
Model Line for this Datasheet
Text Version of Document

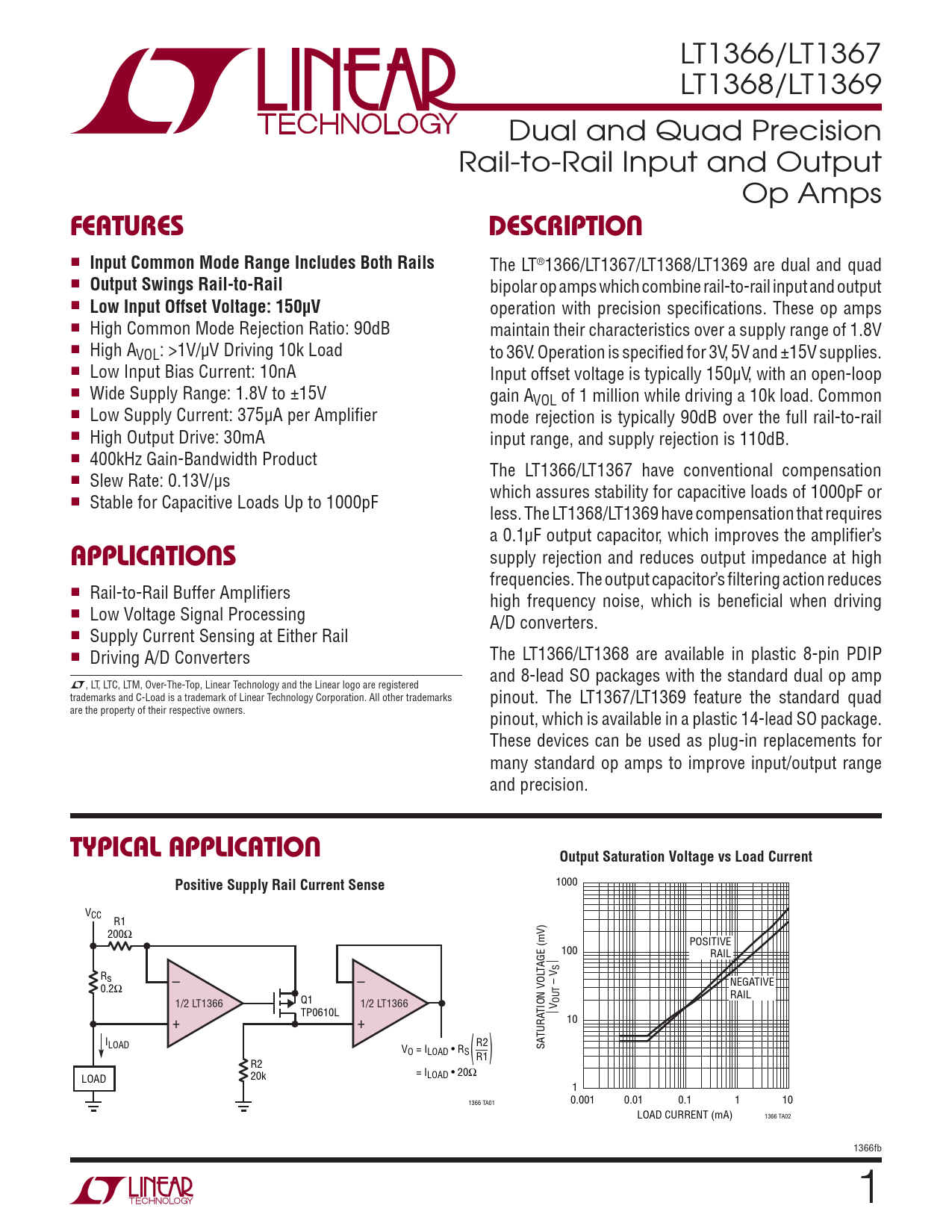

LT1366/LT1367 LT1368/LT1369 Dual and Quad Precision Rail-to-Rail Input and Output Op Amps FeaTures DescripTion n
Input Common Mode Range Includes Both Rails
The LT®1366/LT1367/LT1368/LT1369 are dual and quad n
Output Swings Rail-to-Rail
bipolar op amps which combine rail-to-rail input and output n
Low Input Offset Voltage: 150µV
operation with precision specifications. These op amps n High Common Mode Rejection Ratio: 90dB maintain their characteristics over a supply range of 1.8V n High AVOL: >1V/µV Driving 10k Load to 36V. Operation is specified for 3V, 5V and ±15V supplies. n Low Input Bias Current: 10nA Input offset voltage is typically 150µV, with an open-loop n Wide Supply Range: 1.8V to ±15V gain AVOL of 1 million while driving a 10k load. Common n Low Supply Current: 375µA per Amplifier mode rejection is typically 90dB over the full rail-to-rail n High Output Drive: 30mA input range, and supply rejection is 110dB. n 400kHz Gain-Bandwidth Product The LT1366/LT1367 have conventional compensation n Slew Rate: 0.13V/µs which assures stability for capacitive loads of 1000pF or n Stable for Capacitive Loads Up to 1000pF less. The LT1368/LT1369 have compensation that requires a 0.1µF output capacitor, which improves the amplifier’s applicaTions supply rejection and reduces output impedance at high frequencies. The output capacitor’s filtering action reduces n Rail-to-Rail Buffer Amplifiers high frequency noise, which is beneficial when driving n Low Voltage Signal Processing A/D converters. n Supply Current Sensing at Either Rail n Driving A/D Converters The LT1366/LT1368 are available in plastic 8-pin PDIP and 8-lead SO packages with the standard dual op amp L, LT, LTC, LTM, Over-The-Top, Linear Technology and the Linear logo are registered trademarks and C-Load is a trademark of Linear Technology Corporation. All other trademarks pinout. The LT1367/LT1369 feature the standard quad are the property of their respective owners. pinout, which is available in a plastic 14-lead SO package. These devices can be used as plug-in replacements for many standard op amps to improve input/output range and precision. Typical applicaTion
Output Saturation Voltage vs Load Current Positive Supply Rail Current Sense
1000 VCC R1 200Ω POSITIVE 100 RAIL | TAGE (mV) S Rs – – – V NEGATIVE 0.2Ω RAIL 1/2 LT1366 Q1 1/2 LT1366 TION VOL TP0610L |V OUT 10 + + TURA ILOAD R2 SA VO = ILOAD • RS(R1) R2 LOAD 20k = ILOAD • 20Ω 1 1366 TA01 0.001 0.01 0.1 1 10 LOAD CURRENT (mA) 1366 TA02 1366fb Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications information Typical Applications Package Description Revision History Typical Application Related Parts
