Datasheet LT1366, LT1367, LT1368, LT1369 (Analog Devices) - 3

ManufacturerAnalog Devices
DescriptionDual and Quad Precision Rail-to-Rail Input and Output Op Amps
Pages / Page20 / 3 — TA = 25°C; VS = 5V, 0V; VCM = 2.5V; VO = 2.5V, unless otherwise noted. …
File Format / SizePDF / 396 Kb
Document LanguageEnglish

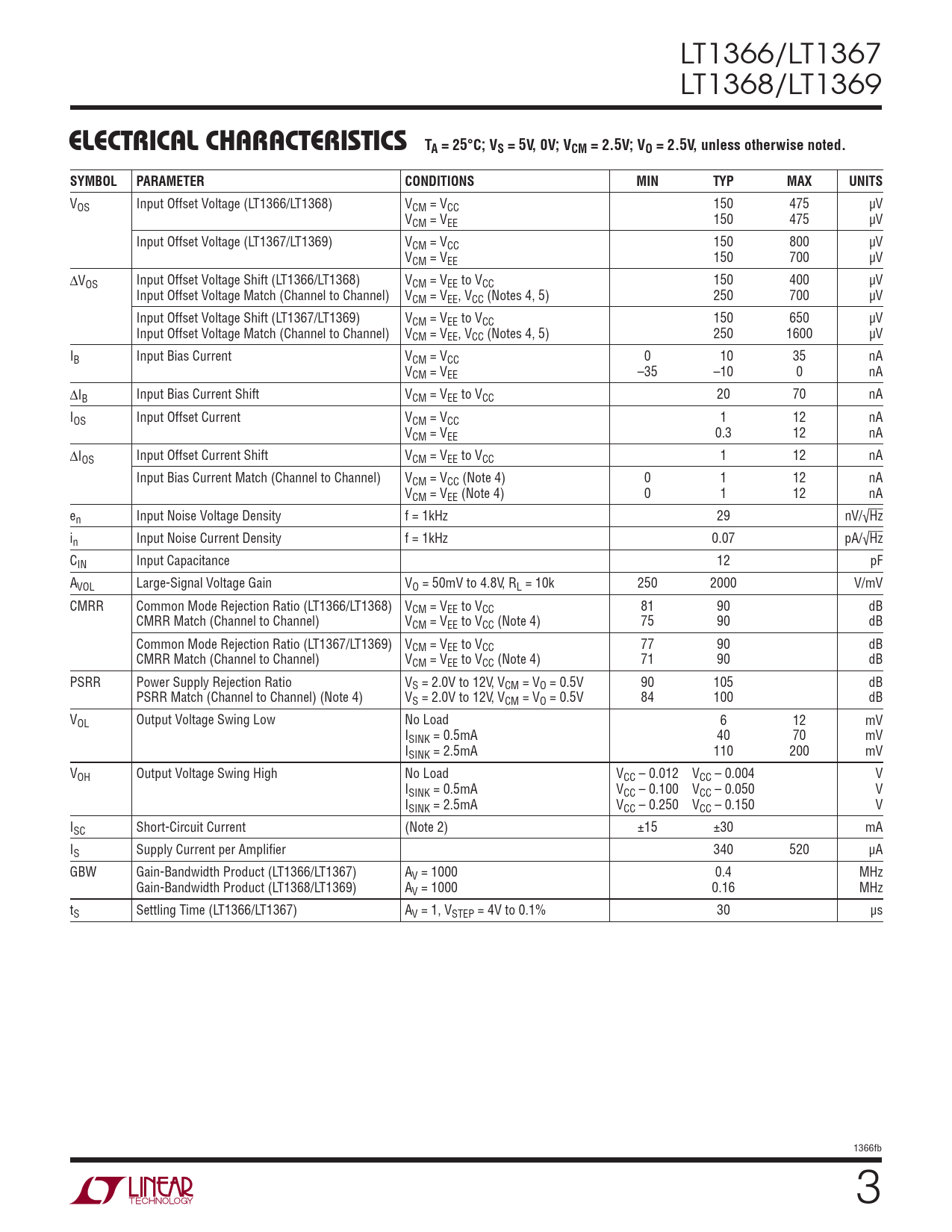

TA = 25°C; VS = 5V, 0V; VCM = 2.5V; VO = 2.5V, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS

TA = 25°C; VS = 5V, 0V; VCM = 2.5V; VO = 2.5V, unless otherwise noted SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

Model Line for this Datasheet

Text Version of Document

LT1366/LT1367 LT1368/LT1369 e lecTrical characTerisTics
TA = 25°C; VS = 5V, 0V; VCM = 2.5V; VO = 2.5V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (LT1366/LT1368) VCM = VCC 150 475 µV VCM = VEE 150 475 µV Input Offset Voltage (LT1367/LT1369) VCM = VCC 150 800 µV VCM = VEE 150 700 µV ∆VOS Input Offset Voltage Shift (LT1366/LT1368) VCM = VEE to VCC 150 400 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 250 700 µV Input Offset Voltage Shift (LT1367/LT1369) VCM = VEE to VCC 150 650 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 250 1600 µV IB Input Bias Current VCM = VCC 0 10 35 nA VCM = VEE –35 –10 0 nA ∆IB Input Bias Current Shift VCM = VEE to VCC 20 70 nA IOS Input Offset Current VCM = VCC 1 12 nA VCM = VEE 0.3 12 nA ∆IOS Input Offset Current Shift VCM = VEE to VCC 1 12 nA Input Bias Current Match (Channel to Channel) VCM = VCC (Note 4) 0 1 12 nA VCM = VEE (Note 4) 0 1 12 nA en Input Noise Voltage Density f = 1kHz 29 nV/√Hz in Input Noise Current Density f = 1kHz 0.07 pA/√Hz CIN Input Capacitance 12 pF AVOL Large-Signal Voltage Gain VO = 50mV to 4.8V, RL = 10k 250 2000 V/mV CMRR Common Mode Rejection Ratio (LT1366/LT1368) VCM = VEE to VCC 81 90 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 75 90 dB Common Mode Rejection Ratio (LT1367/LT1369) VCM = VEE to VCC 77 90 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 71 90 dB PSRR Power Supply Rejection Ratio VS = 2.0V to 12V, VCM = VO = 0.5V 90 105 dB PSRR Match (Channel to Channel) (Note 4) VS = 2.0V to 12V, VCM = VO = 0.5V 84 100 dB VOL Output Voltage Swing Low No Load 6 12 mV ISINK = 0.5mA 40 70 mV ISINK = 2.5mA 110 200 mV VOH Output Voltage Swing High No Load VCC – 0.012 VCC – 0.004 V ISINK = 0.5mA VCC – 0.100 VCC – 0.050 V ISINK = 2.5mA VCC – 0.250 VCC – 0.150 V ISC Short-Circuit Current (Note 2) ±15 ±30 mA IS Supply Current per Amplifier 340 520 µA GBW Gain-Bandwidth Product (LT1366/LT1367) AV = 1000 0.4 MHz Gain-Bandwidth Product (LT1368/LT1369) AV = 1000 0.16 MHz tS Settling Time (LT1366/LT1367) AV = 1, VSTEP = 4V to 0.1% 30 µs 1366fb Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications information Typical Applications Package Description Revision History Typical Application Related Parts
