TA = 25°C, VS = ±15V, VCM = 0V, VO = 0V, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document

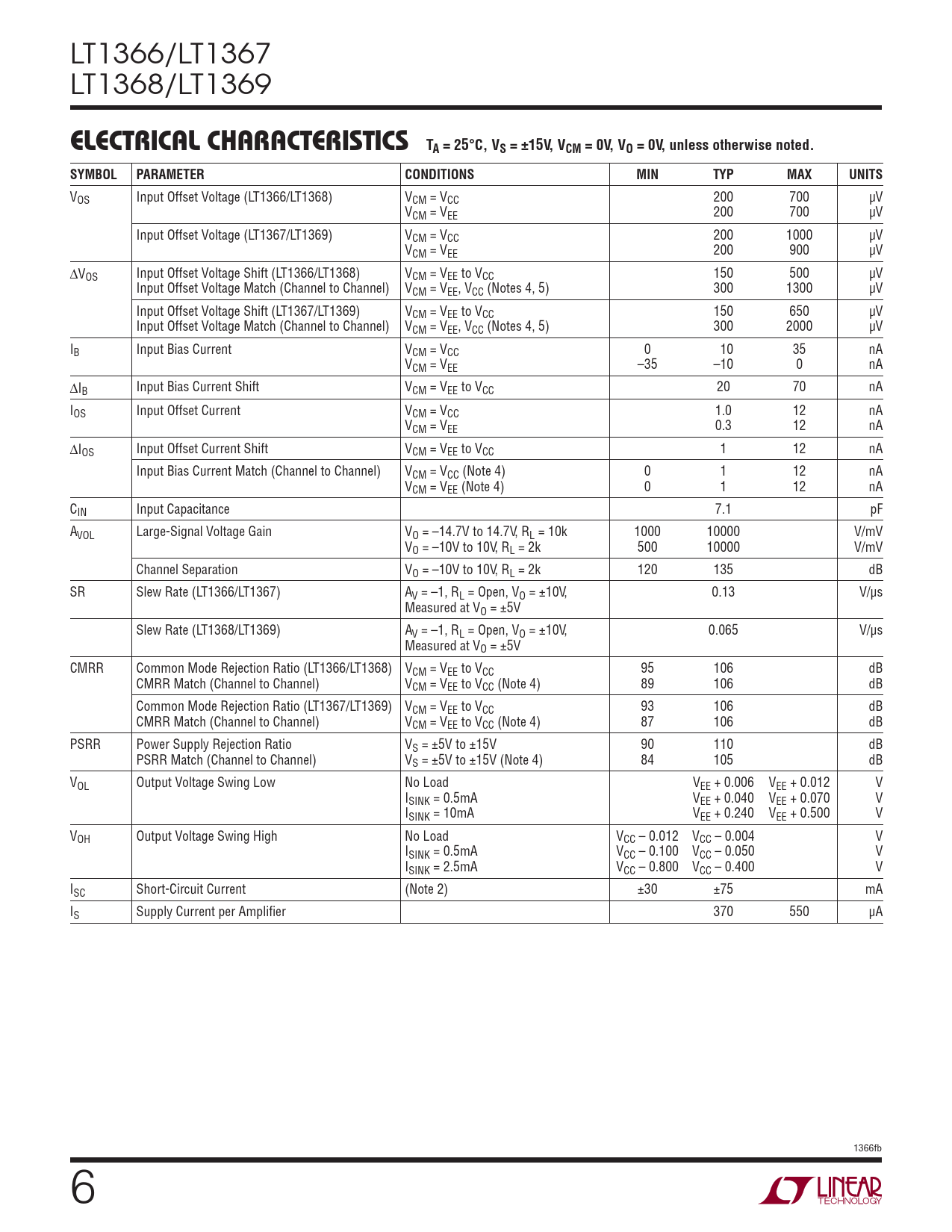

LT1366/LT1367 LT1368/LT1369 e lecTrical characTerisTics
TA = 25°C, VS = ±15V, VCM = 0V, VO = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (LT1366/LT1368) VCM = VCC 200 700 µV VCM = VEE 200 700 µV Input Offset Voltage (LT1367/LT1369) VCM = VCC 200 1000 µV VCM = VEE 200 900 µV ∆VOS Input Offset Voltage Shift (LT1366/LT1368) VCM = VEE to VCC 150 500 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 300 1300 µV Input Offset Voltage Shift (LT1367/LT1369) VCM = VEE to VCC 150 650 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 300 2000 µV IB Input Bias Current VCM = VCC 0 10 35 nA VCM = VEE –35 –10 0 nA ∆IB Input Bias Current Shift VCM = VEE to VCC 20 70 nA IOS Input Offset Current VCM = VCC 1.0 12 nA VCM = VEE 0.3 12 nA ∆IOS Input Offset Current Shift VCM = VEE to VCC 1 12 nA Input Bias Current Match (Channel to Channel) VCM = VCC (Note 4) 0 1 12 nA VCM = VEE (Note 4) 0 1 12 nA CIN Input Capacitance 7.1 pF AVOL Large-Signal Voltage Gain VO = –14.7V to 14.7V, RL = 10k 1000 10000 V/mV VO = –10V to 10V, RL = 2k 500 10000 V/mV Channel Separation VO = –10V to 10V, RL = 2k 120 135 dB SR Slew Rate (LT1366/LT1367) AV = –1, RL = Open, VO = ±10V, 0.13 V/µs Measured at VO = ±5V Slew Rate (LT1368/LT1369) AV = –1, RL = Open, VO = ±10V, 0.065 V/µs Measured at VO = ±5V CMRR Common Mode Rejection Ratio (LT1366/LT1368) VCM = VEE to VCC 95 106 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 89 106 dB Common Mode Rejection Ratio (LT1367/LT1369) VCM = VEE to VCC 93 106 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 87 106 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V 90 110 dB PSRR Match (Channel to Channel) VS = ±5V to ±15V (Note 4) 84 105 dB VOL Output Voltage Swing Low No Load VEE + 0.006 VEE + 0.012 V ISINK = 0.5mA VEE + 0.040 VEE + 0.070 V ISINK = 10mA VEE + 0.240 VEE + 0.500 V VOH Output Voltage Swing High No Load VCC – 0.012 VCC – 0.004 V ISINK = 0.5mA VCC – 0.100 VCC – 0.050 V ISINK = 2.5mA VCC – 0.800 VCC – 0.400 V ISC Short-Circuit Current (Note 2) ±30 ±75 mA IS Supply Current per Amplifier 370 550 µA 1366fb Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications information Typical Applications Package Description Revision History Typical Application Related Parts
TA = 25°C, VS = ±15V, VCM = 0V, VO = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (LT1366/LT1368) VCM = VCC 200 700 µV VCM = VEE 200 700 µV Input Offset Voltage (LT1367/LT1369) VCM = VCC 200 1000 µV VCM = VEE 200 900 µV ∆VOS Input Offset Voltage Shift (LT1366/LT1368) VCM = VEE to VCC 150 500 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 300 1300 µV Input Offset Voltage Shift (LT1367/LT1369) VCM = VEE to VCC 150 650 µV Input Offset Voltage Match (Channel to Channel) VCM = VEE, VCC (Notes 4, 5) 300 2000 µV IB Input Bias Current VCM = VCC 0 10 35 nA VCM = VEE –35 –10 0 nA ∆IB Input Bias Current Shift VCM = VEE to VCC 20 70 nA IOS Input Offset Current VCM = VCC 1.0 12 nA VCM = VEE 0.3 12 nA ∆IOS Input Offset Current Shift VCM = VEE to VCC 1 12 nA Input Bias Current Match (Channel to Channel) VCM = VCC (Note 4) 0 1 12 nA VCM = VEE (Note 4) 0 1 12 nA CIN Input Capacitance 7.1 pF AVOL Large-Signal Voltage Gain VO = –14.7V to 14.7V, RL = 10k 1000 10000 V/mV VO = –10V to 10V, RL = 2k 500 10000 V/mV Channel Separation VO = –10V to 10V, RL = 2k 120 135 dB SR Slew Rate (LT1366/LT1367) AV = –1, RL = Open, VO = ±10V, 0.13 V/µs Measured at VO = ±5V Slew Rate (LT1368/LT1369) AV = –1, RL = Open, VO = ±10V, 0.065 V/µs Measured at VO = ±5V CMRR Common Mode Rejection Ratio (LT1366/LT1368) VCM = VEE to VCC 95 106 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 89 106 dB Common Mode Rejection Ratio (LT1367/LT1369) VCM = VEE to VCC 93 106 dB CMRR Match (Channel to Channel) VCM = VEE to VCC (Note 4) 87 106 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V 90 110 dB PSRR Match (Channel to Channel) VS = ±5V to ±15V (Note 4) 84 105 dB VOL Output Voltage Swing Low No Load VEE + 0.006 VEE + 0.012 V ISINK = 0.5mA VEE + 0.040 VEE + 0.070 V ISINK = 10mA VEE + 0.240 VEE + 0.500 V VOH Output Voltage Swing High No Load VCC – 0.012 VCC – 0.004 V ISINK = 0.5mA VCC – 0.100 VCC – 0.050 V ISINK = 2.5mA VCC – 0.800 VCC – 0.400 V ISC Short-Circuit Current (Note 2) ±30 ±75 mA IS Supply Current per Amplifier 370 550 µA 1366fb Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Available Options Order Information Electrical Characteristics Typical Performance Characteristics Applications information Typical Applications Package Description Revision History Typical Application Related Parts
