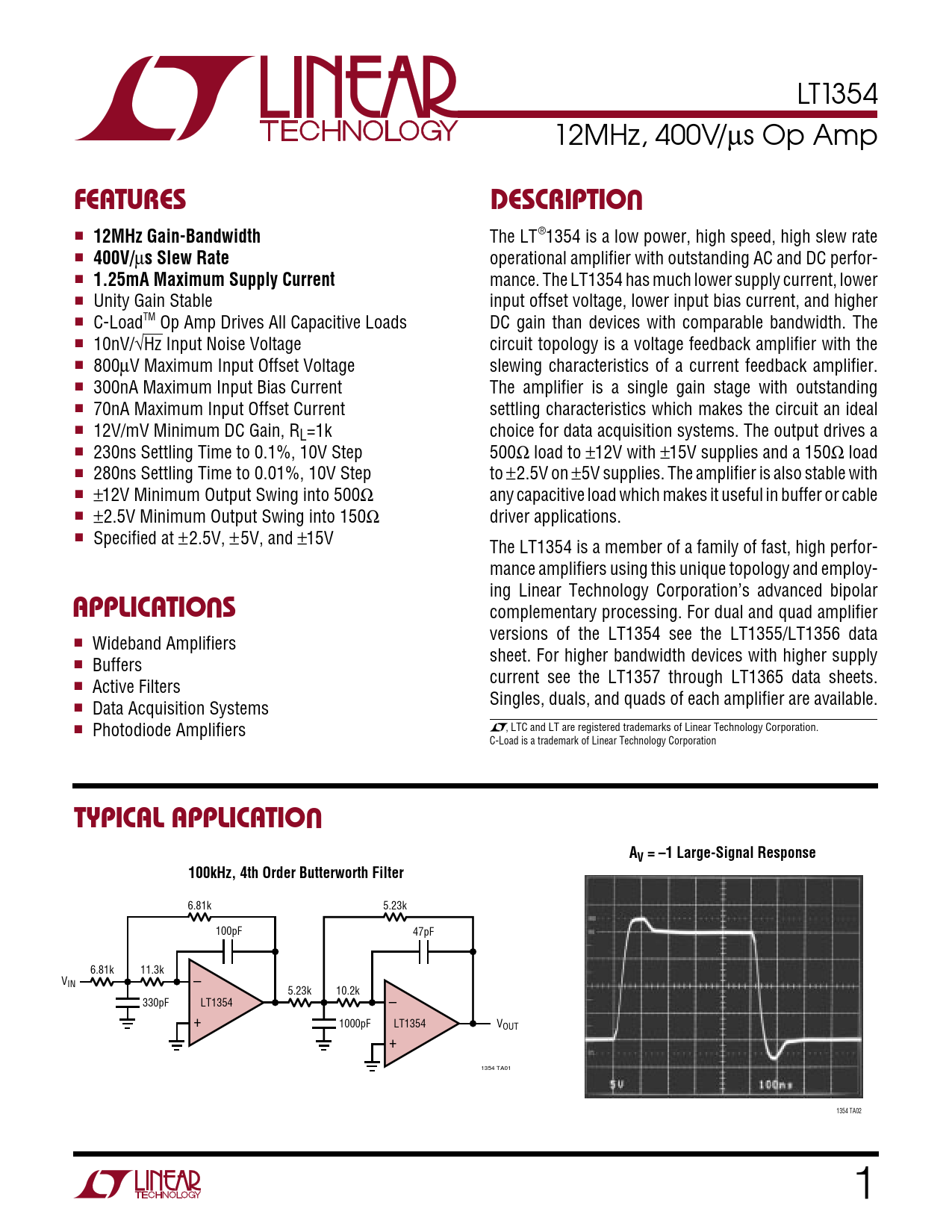

LT1354 12MHz, 400V/µs Op Amp
U FEATURES DESCRIPTION
■
12MHz Gain-Bandwidth
The LT®1354 is a low power, high speed, high slew rate ■
400V/
µ
s Slew Rate
operational amplifier with outstanding AC and DC perfor- ■
1.25mA Maximum Supply Current
mance. The LT1354 has much lower supply current, lower ■ Unity Gain Stable input offset voltage, lower input bias current, and higher ■ C-LoadTM Op Amp Drives All Capacitive Loads DC gain than devices with comparable bandwidth. The ■ 10nV/√Hz Input Noise Voltage circuit topology is a voltage feedback amplifier with the ■ 800µV Maximum Input Offset Voltage slewing characteristics of a current feedback amplifier. ■ 300nA Maximum Input Bias Current The amplifier is a single gain stage with outstanding ■ 70nA Maximum Input Offset Current settling characteristics which makes the circuit an ideal ■ 12V/mV Minimum DC Gain, RL=1k choice for data acquisition systems. The output drives a ■ 230ns Settling Time to 0.1%, 10V Step 500Ω load to ±12V with ±15V supplies and a 150Ω load ■ 280ns Settling Time to 0.01%, 10V Step to ±2.5V on ±5V supplies. The amplifier is also stable with ■ ±12V Minimum Output Swing into 500Ω any capacitive load which makes it useful in buffer or cable ■ ±2.5V Minimum Output Swing into 150Ω driver applications. ■ Specified at ±2.5V, ±5V, and ±15V The LT1354 is a member of a family of fast, high perfor- mance amplifiers using this unique topology and employ-
U
ing Linear Technology Corporation’s advanced bipolar
APPLICATIONS
complementary processing. For dual and quad amplifier versions of the LT1354 see the LT1355/LT1356 data ■ Wideband Amplifiers sheet. For higher bandwidth devices with higher supply ■ Buffers current see the LT1357 through LT1365 data sheets. ■ Active Filters Singles, duals, and quads of each amplifier are available. ■ Data Acquisition Systems ■ Photodiode Amplifiers , LTC and LT are registered trademarks of Linear Technology Corporation. C-Load is a trademark of Linear Technology Corporation
U TYPICAL APPLICATION AV = –1 Large-Signal Response 100kHz, 4th Order Butterworth Filter
6.81k 5.23k 100pF 47pF 6.81k 11.3k VIN – 5.23k 10.2k 330pF LT1354 – + 1000pF LT1354 VOUT + 1354 TA01 1354 TA02 1
