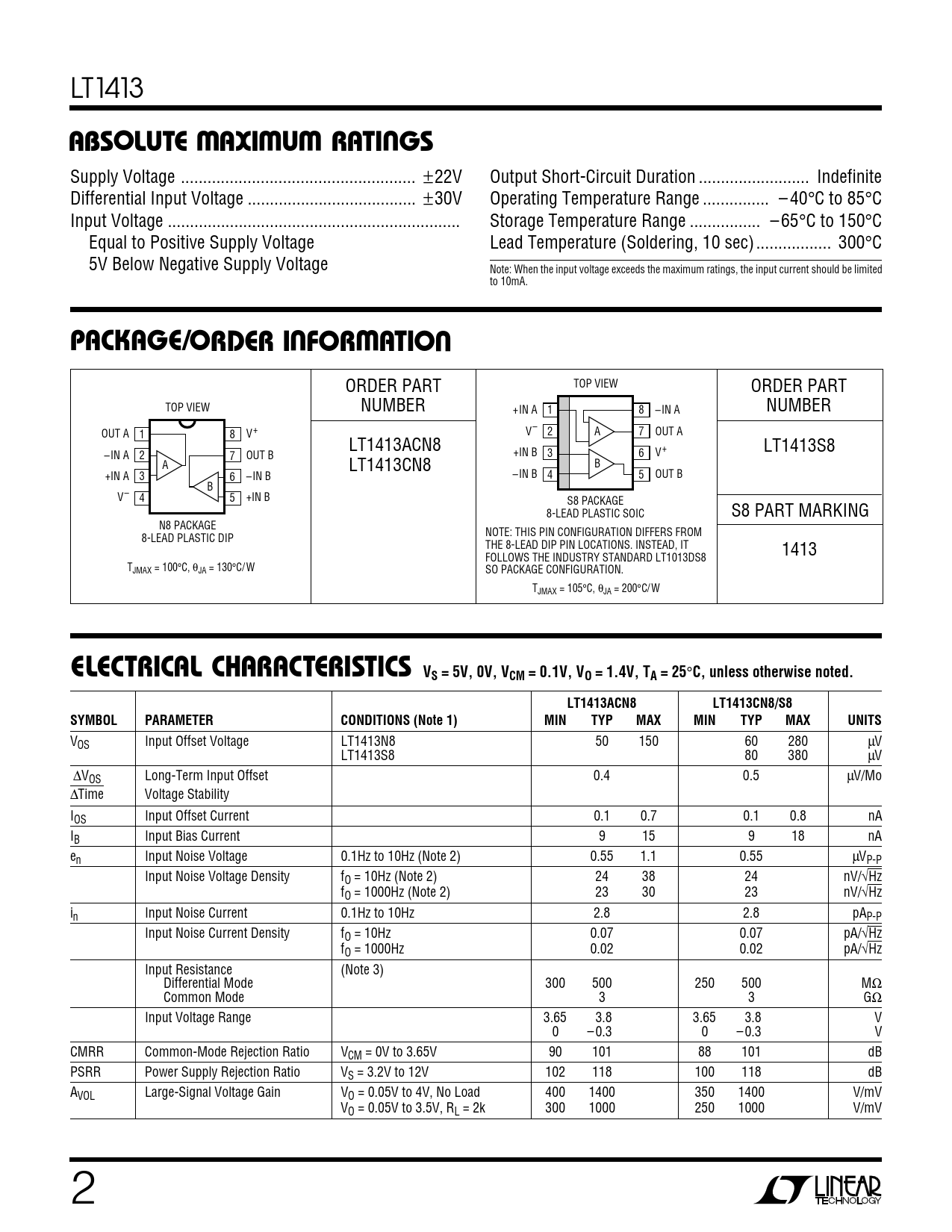

LT1413
W W W U ABSOLUTE AXI U A R TI GS
Supply Voltage ... ±22V Output Short-Circuit Duration ... Indefinite Differential Input Voltage .. ±30V Operating Temperature Range ... – 40°C to 85°C Input Voltage .. Storage Temperature Range .. – 65°C to 150°C Equal to Positive Supply Voltage Lead Temperature (Soldering, 10 sec) ... 300°C 5V Below Negative Supply Voltage Note: When the input voltage exceeds the maximum ratings, the input current should be limited to 10mA.
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART ORDER PART TOP VIEW NUMBER +IN A 1 8 –IN A NUMBER V– 2 A 7 OUT A OUT A 1 8 V+ LT1413ACN8 LT1413S8 +IN B 3 6 V+ –IN A 2 7 OUT B A B LT1413CN8 –IN B +IN A 3 –IN B 4 5 OUT B 6 B V– 4 5 +IN B S8 PACKAGE 8-LEAD PLASTIC SOIC S8 PART MARKING N8 PACKAGE NOTE: THIS PIN CONFIGURATION DIFFERS FROM 8-LEAD PLASTIC DIP THE 8-LEAD DIP PIN LOCATIONS. INSTEAD, IT 1413 FOLLOWS THE INDUSTRY STANDARD LT1013DS8 TJMAX = 100°C, θJA = 130°C/ W SO PACKAGE CONFIGURATION. TJMAX = 105°C, θJA = 200°C/ W
ELECTRICAL CHAR C A TERISTICS VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25
°
C, unless otherwise noted. LT1413ACN8 LT1413CN8/S8 SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage LT1413N8 50 150 60 280 µV LT1413S8 80 380 µV ∆VOS Long-Term Input Offset 0.4 0.5 µV/Mo ∆Time Voltage Stability IOS Input Offset Current 0.1 0.7 0.1 0.8 nA IB Input Bias Current 9 15 9 18 nA en Input Noise Voltage 0.1Hz to 10Hz (Note 2) 0.55 1.1 0.55 µVP-P Input Noise Voltage Density fO = 10Hz (Note 2) 24 38 24 nV/√Hz fO = 1000Hz (Note 2) 23 30 23 nV/√Hz in Input Noise Current 0.1Hz to 10Hz 2.8 2.8 pAP-P Input Noise Current Density fO = 10Hz 0.07 0.07 pA/√Hz fO = 1000Hz 0.02 0.02 pA/√Hz Input Resistance (Note 3) Differential Mode 300 500 250 500 MΩ Common Mode 3 3 GΩ Input Voltage Range 3.65 3.8 3.65 3.8 V 0 – 0.3 0 – 0.3 V CMRR Common-Mode Rejection Ratio VCM = 0V to 3.65V 90 101 88 101 dB PSRR Power Supply Rejection Ratio VS = 3.2V to 12V 102 118 100 118 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 4V, No Load 400 1400 350 1400 V/mV VO = 0.05V to 3.5V, RL = 2k 300 1000 250 1000 V/mV 2
