| Description | 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps |
| Pages / Page | 20 / 2 — ABSOLUTE. AXI U. R TI GS (Note 1). (OBSOLETE) .. (OBSOLETE) ... … |
| File Format / Size | PDF / 347 Kb |
| Document Language | English |
ABSOLUTE. AXI U. R TI GS (Note 1). (OBSOLETE) .. (OBSOLETE) ... PACKAGE/ORDER I FOR ATIO. OBSOLETE PACKAGE
Model Line for this Datasheet
Text Version of Document

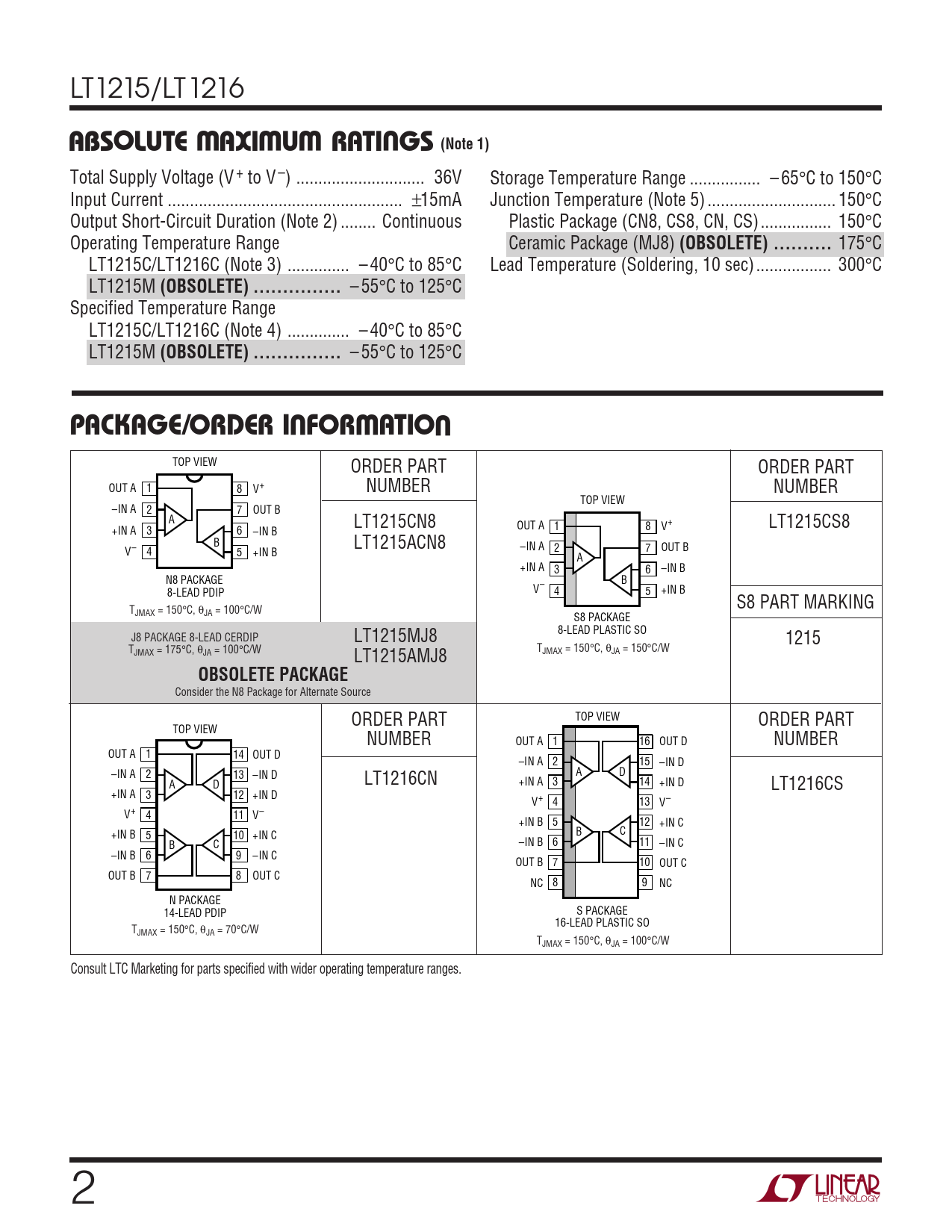

LT1215/LT1216
W W W U ABSOLUTE AXI U A R TI GS (Note 1)
Total Supply Voltage (V + to V –) ... 36V Storage Temperature Range .. – 65°C to 150°C Input Current ... ±15mA Junction Temperature (Note 5) ... 150°C Output Short-Circuit Duration (Note 2) .. Continuous Plastic Package (CN8, CS8, CN, CS).. 150°C Operating Temperature Range Ceramic Package (MJ8)
(OBSOLETE) ..
175°C LT1215C/LT1216C (Note 3) .. – 40°C to 85°C Lead Temperature (Soldering, 10 sec)... 300°C LT1215M
(OBSOLETE) ...
– 55°C to 125°C Specified Temperature Range LT1215C/LT1216C (Note 4) .. – 40°C to 85°C LT1215M
(OBSOLETE) ...
– 55°C to 125°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART ORDER PART OUT A 1 8 V+ NUMBER NUMBER TOP VIEW –IN A 2 7 OUT B A LT1215CN8 OUT A 1 8 V+ LT1215CS8 +IN A 3 6 –IN B B LT1215ACN8 –IN A V– 4 OUT B 5 +IN B 2 7 A +IN A 3 6 –IN B N8 PACKAGE B 8-LEAD PDIP V– 4 5 +IN B S8 PART MARKING TJMAX = 150°C, θJA = 100°C/W S8 PACKAGE 8-LEAD PLASTIC SO J8 PACKAGE 8-LEAD CERDIP LT1215MJ8 1215 T T JMAX = 175°C, θJA = 100°C/W JMAX = 150°C, θJA = 150°C/W LT1215AMJ8
OBSOLETE PACKAGE
Consider the N8 Package for Alternate Source ORDER PART TOP VIEW ORDER PART TOP VIEW NUMBER OUT A 1 16 OUT D NUMBER OUT A 1 14 OUT D –IN A 2 15 –IN D A D –IN A 2 13 –IN D LT1216CN +IN A 3 14 +IN D A D LT1216CS +IN A 3 12 +IN D V+ 4 13 V– V+ 4 11 V– +IN B 5 12 +IN C B C +IN B 5 10 +IN C B C –IN B 6 11 –IN C –IN B 6 9 –IN C OUT B 7 10 OUT C OUT B 7 8 OUT C NC 8 9 NC N PACKAGE S PACKAGE 14-LEAD PDIP 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 70°C/W TJMAX = 150°C, θJA = 100°C/W Consult LTC Marketing for parts specified with wider operating temperature ranges. 2
W W W U ABSOLUTE AXI U A R TI GS (Note 1)
Total Supply Voltage (V + to V –) ... 36V Storage Temperature Range .. – 65°C to 150°C Input Current ... ±15mA Junction Temperature (Note 5) ... 150°C Output Short-Circuit Duration (Note 2) .. Continuous Plastic Package (CN8, CS8, CN, CS).. 150°C Operating Temperature Range Ceramic Package (MJ8)
(OBSOLETE) ..
175°C LT1215C/LT1216C (Note 3) .. – 40°C to 85°C Lead Temperature (Soldering, 10 sec)... 300°C LT1215M
(OBSOLETE) ...
– 55°C to 125°C Specified Temperature Range LT1215C/LT1216C (Note 4) .. – 40°C to 85°C LT1215M
(OBSOLETE) ...
– 55°C to 125°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART ORDER PART OUT A 1 8 V+ NUMBER NUMBER TOP VIEW –IN A 2 7 OUT B A LT1215CN8 OUT A 1 8 V+ LT1215CS8 +IN A 3 6 –IN B B LT1215ACN8 –IN A V– 4 OUT B 5 +IN B 2 7 A +IN A 3 6 –IN B N8 PACKAGE B 8-LEAD PDIP V– 4 5 +IN B S8 PART MARKING TJMAX = 150°C, θJA = 100°C/W S8 PACKAGE 8-LEAD PLASTIC SO J8 PACKAGE 8-LEAD CERDIP LT1215MJ8 1215 T T JMAX = 175°C, θJA = 100°C/W JMAX = 150°C, θJA = 150°C/W LT1215AMJ8
OBSOLETE PACKAGE
Consider the N8 Package for Alternate Source ORDER PART TOP VIEW ORDER PART TOP VIEW NUMBER OUT A 1 16 OUT D NUMBER OUT A 1 14 OUT D –IN A 2 15 –IN D A D –IN A 2 13 –IN D LT1216CN +IN A 3 14 +IN D A D LT1216CS +IN A 3 12 +IN D V+ 4 13 V– V+ 4 11 V– +IN B 5 12 +IN C B C +IN B 5 10 +IN C B C –IN B 6 11 –IN C –IN B 6 9 –IN C OUT B 7 10 OUT C OUT B 7 8 OUT C NC 8 9 NC N PACKAGE S PACKAGE 14-LEAD PDIP 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 70°C/W TJMAX = 150°C, θJA = 100°C/W Consult LTC Marketing for parts specified with wider operating temperature ranges. 2
