| Manufacturer | Analog Devices |
| Description | 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps |
| Pages / Page | 20 / 3 — AVAILABLE OPTIO S. PACKAGE. NUMBER OF. MAX TC VOS. CERAMIC (J). PLASTIC … |
| File Format / Size | PDF / 347 Kb |
| Document Language | English |

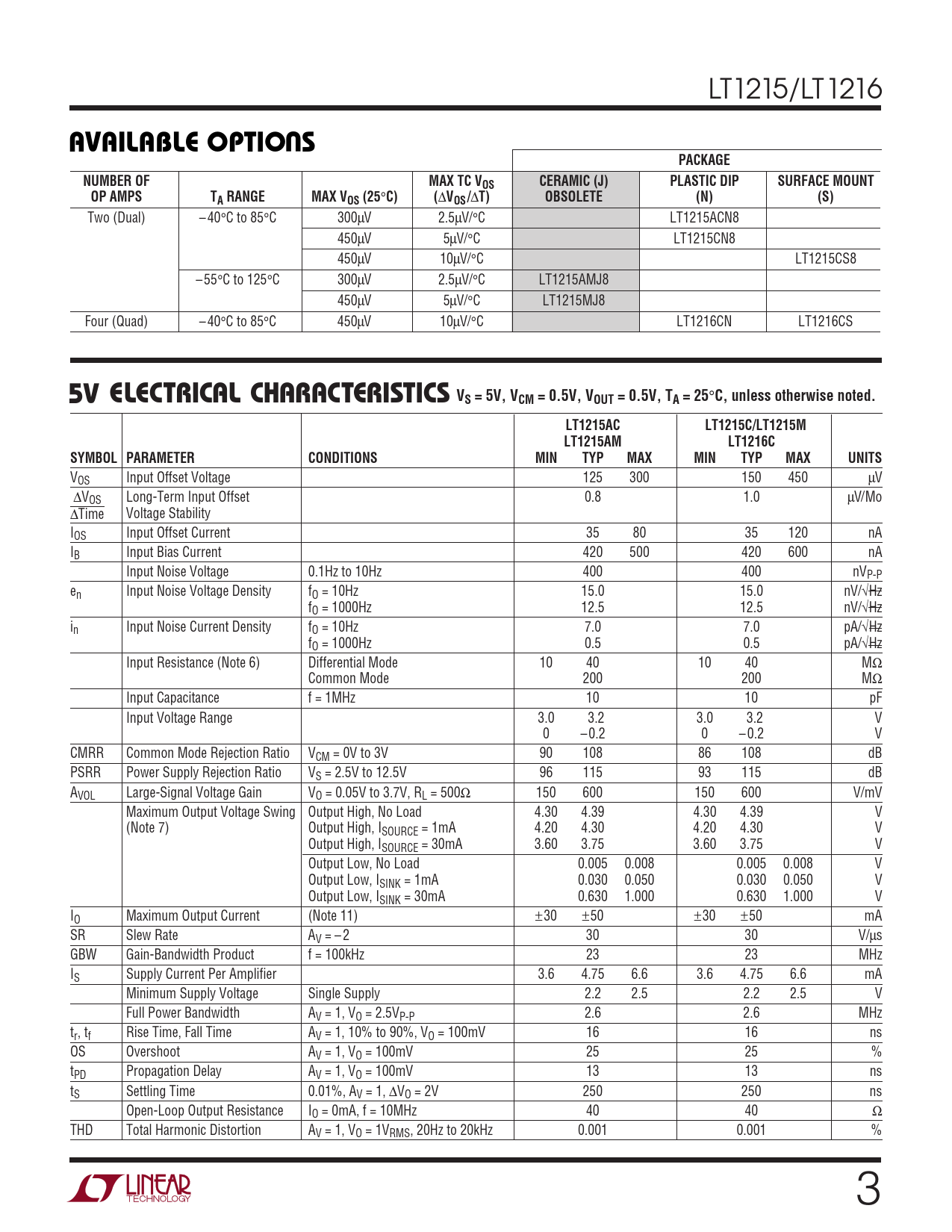

AVAILABLE OPTIO S. PACKAGE. NUMBER OF. MAX TC VOS. CERAMIC (J). PLASTIC DIP. SURFACE MOUNT. OP AMPS. TA RANGE. MAX VOS (25. VOS/. OBSOLETE. (N)
Model Line for this Datasheet
Text Version of Document
LT1215/LT1216
U AVAILABLE OPTIO S PACKAGE NUMBER OF MAX TC VOS CERAMIC (J) PLASTIC DIP SURFACE MOUNT OP AMPS TA RANGE MAX VOS (25
°
C) (
∆
VOS/
∆
T) OBSOLETE (N) (S)
Two (Dual) – 40°C to 85°C 300µV 2.5µV/°C LT1215ACN8 450µV 5µV/°C LT1215CN8 450µV 10µV/°C LT1215CS8 – 55°C to 125°C 300µV 2.5µV/°C LT1215AMJ8 450µV 5µV/°C LT1215MJ8 Four (Quad) – 40°C to 85°C 450µV 10µV/°C LT1216CN LT1216CS
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, TA = 25
°
C, unless otherwise noted. LT1215AC LT1215C/LT1215M LT1215AM LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 125 300 150 450 µV ∆VOS Long-Term Input Offset 0.8 1.0 µV/Mo ∆Time Voltage Stability IOS Input Offset Current 35 80 35 120 nA IB Input Bias Current 420 500 420 600 nA Input Noise Voltage 0.1Hz to 10Hz 400 400 nVP-P en Input Noise Voltage Density fO = 10Hz 15.0 15.0 nV/√Hz fO = 1000Hz 12.5 12.5 nV/√Hz in Input Noise Current Density fO = 10Hz 7.0 7.0 pA/√Hz fO = 1000Hz 0.5 0.5 pA/√Hz Input Resistance (Note 6) Differential Mode 10 40 10 40 MΩ Common Mode 200 200 MΩ Input Capacitance f = 1MHz 10 10 pF Input Voltage Range 3.0 3.2 3.0 3.2 V 0 – 0.2 0 – 0.2 V CMRR Common Mode Rejection Ratio VCM = 0V to 3V 90 108 86 108 dB PSRR Power Supply Rejection Ratio VS = 2.5V to 12.5V 96 115 93 115 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 150 600 150 600 V/mV Maximum Output Voltage Swing Output High, No Load 4.30 4.39 4.30 4.39 V (Note 7) Output High, ISOURCE = 1mA 4.20 4.30 4.20 4.30 V Output High, ISOURCE = 30mA 3.60 3.75 3.60 3.75 V Output Low, No Load 0.005 0.008 0.005 0.008 V Output Low, ISINK = 1mA 0.030 0.050 0.030 0.050 V Output Low, ISINK = 30mA 0.630 1.000 0.630 1.000 V IO Maximum Output Current (Note 11) ±30 ±50 ±30 ±50 mA SR Slew Rate AV = – 2 30 30 V/µs GBW Gain-Bandwidth Product f = 100kHz 23 23 MHz IS Supply Current Per Amplifier 3.6 4.75 6.6 3.6 4.75 6.6 mA Minimum Supply Voltage Single Supply 2.2 2.5 2.2 2.5 V Full Power Bandwidth AV = 1, VO = 2.5VP-P 2.6 2.6 MHz tr, tf Rise Time, Fall Time AV = 1, 10% to 90%, VO = 100mV 16 16 ns OS Overshoot AV = 1, VO = 100mV 25 25 % tPD Propagation Delay AV = 1, VO = 100mV 13 13 ns tS Settling Time 0.01%, AV = 1, ∆VO = 2V 250 250 ns Open-Loop Output Resistance IO = 0mA, f = 10MHz 40 40 Ω THD Total Harmonic Distortion AV = 1, VO = 1VRMS, 20Hz to 20kHz 0.001 0.001 % 3
