Datasheet LTC6258, LTC6259, LTC6260 (Analog Devices)

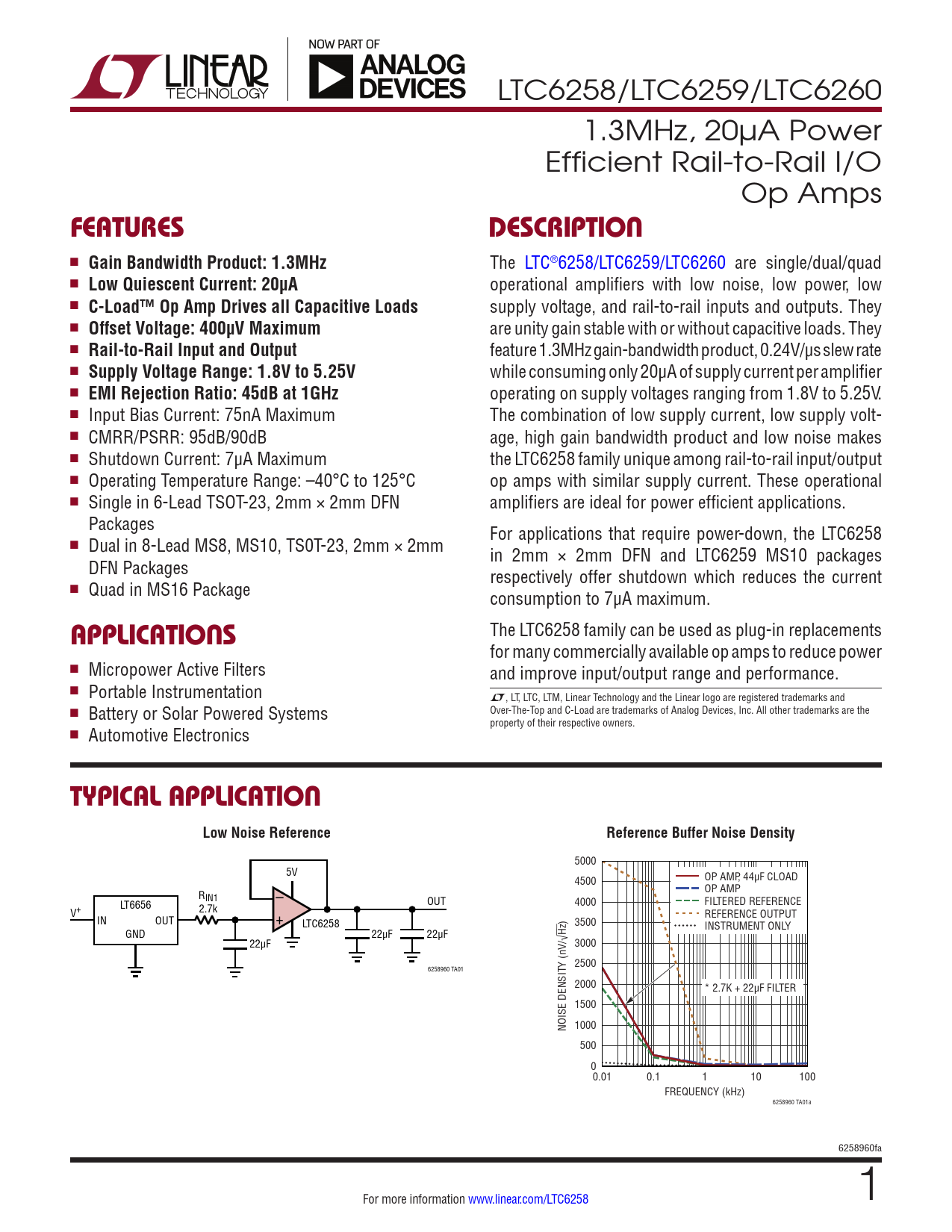

LTC6258/LTC6259/LTC6260 1.3MHz, 20µA Power Efficient Rail-to-Rail I/O Op Amps
FEATURES DESCRIPTION
n
Gain Bandwidth Product: 1.3MHz
The LTC®6258/LTC6259/LTC6260 are single/dual/quad n
Low Quiescent Current: 20µA
operational amplifiers with low noise, low power, low n
C-Load™ Op Amp Drives all Capacitive Loads
supply voltage, and rail-to-rail inputs and outputs. They n
Offset Voltage: 400µV Maximum
are unity gain stable with or without capacitive loads. They n
Rail-to-Rail Input and Output
feature 1.3MHz gain-bandwidth product, 0.24V/µs slew rate n
Supply Voltage Range: 1.8V to 5.25V
while consuming only 20µA of supply current per amplifier n
EMI Rejection Ratio: 45dB at 1GHz
operating on supply voltages ranging from 1.8V to 5.25V. n Input Bias Current: 75nA Maximum The combination of low supply current, low supply volt- n CMRR/PSRR: 95dB/90dB age, high gain bandwidth product and low noise makes n Shutdown Current: 7µA Maximum the LTC6258 family unique among rail-to-rail input/output n Operating Temperature Range: –40°C to 125°C op amps with similar supply current. These operational n Single in 6-Lead TSOT-23, 2mm × 2mm DFN amplifiers are ideal for power efficient applications. Packages For applications that require power-down, the LTC6258 n Dual in 8-Lead MS8, MS10, TS0T-23, 2mm × 2mm in 2mm × 2mm DFN and LTC6259 MS10 packages DFN Packages respectively offer shutdown which reduces the current n Quad in MS16 Package consumption to 7µA maximum.
APPLICATIONS
The LTC6258 family can be used as plug-in replacements for many commercially available op amps to reduce power n Micropower Active Filters and improve input/output range and performance. n Portable Instrumentation L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Battery or Solar Powered Systems Over-The-Top and C-Load are trademarks of Analog Devices, Inc. All other trademarks are the property of their respective owners. n Automotive Electronics
TYPICAL APPLICATION Low Noise Reference Reference Buffer Noise Density
5000 5V OP AMP, 44µF CLOAD 4500 R OP AMP IN1 – OUT LT6656 4000 FILTERED REFERENCE V+ 2.7k IN OUT + REFERENCE OUTPUT LTC6258 ) 3500 INSTRUMENT ONLY GND 22µF 22µF Hz 22µF /√ 3000 Y (nV 2500 6258960 TA01 2000 * 2.7K + 22µF FILTER 1500 NOISE DENSIT 1000 500 00.01 0.1 1 10 100 FREQUENCY (kHz) 6258960 TA01a 6258960fa For more information www.linear.com/LTC6258 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Typical Application Related Parts
