LTC6261/LTC6262/LTC6263

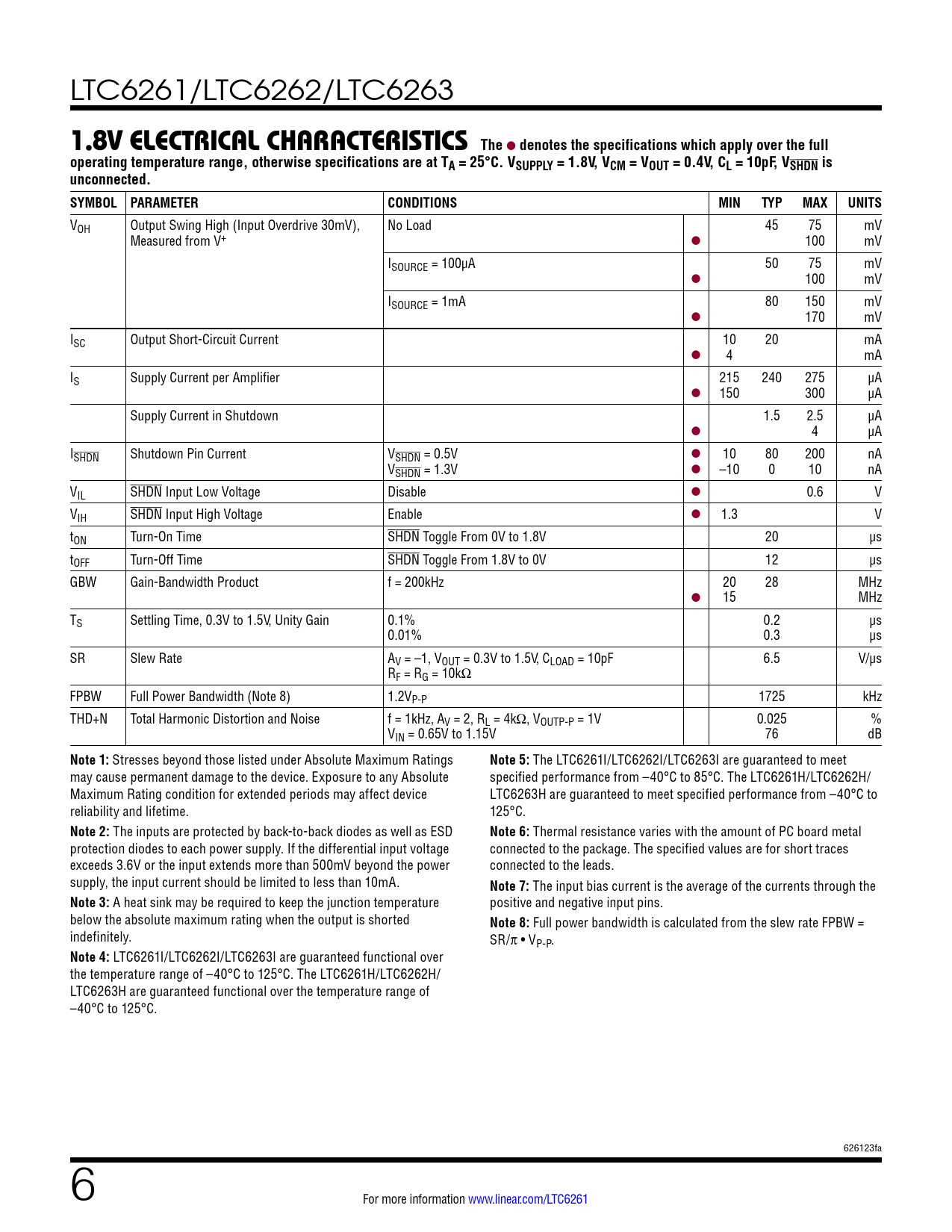

1.8V electricAl chArActeristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 1.8V, VCM = VOUT = 0.4V, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOH Output Swing High (Input Overdrive 30mV), No Load 45 75 mV Measured from V+ l 100 mV ISOURCE = 100µA 50 75 mV l 100 mV ISOURCE = 1mA 80 150 mV l 170 mV ISC Output Short-Circuit Current 10 20 mA l 4 mA IS Supply Current per Amplifier 215 240 275 µA l 150 300 µA Supply Current in Shutdown 1.5 2.5 µA l 4 µA ISHDN Shutdown Pin Current VSHDN = 0.5V l 10 80 200 nA VSHDN = 1.3V l –10 0 10 nA VIL SHDN Input Low Voltage Disable l 0.6 V VIH SHDN Input High Voltage Enable l 1.3 V tON Turn-On Time SHDN Toggle From 0V to 1.8V 20 µs tOFF Turn-Off Time SHDN Toggle From 1.8V to 0V 12 µs GBW Gain-Bandwidth Product f = 200kHz 20 28 MHz l 15 MHz TS Settling Time, 0.3V to 1.5V, Unity Gain 0.1% 0.2 µs 0.01% 0.3 µs SR Slew Rate AV = –1, VOUT = 0.3V to 1.5V, CLOAD = 10pF 6.5 V/µs RF = RG = 10kΩ FPBW Full Power Bandwidth (Note 8) 1.2VP-P 1725 kHz THD+N Total Harmonic Distortion and Noise f = 1kHz, AV = 2, RL = 4kΩ, VOUTP-P = 1V 0.025 % VIN = 0.65V to 1.15V 76 dB
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
The LTC6261I/LTC6262I/LTC6263I are guaranteed to meet may cause permanent damage to the device. Exposure to any Absolute specified performance from –40°C to 85°C. The LTC6261H/LTC6262H/ Maximum Rating condition for extended periods may affect device LTC6263H are guaranteed to meet specified performance from –40°C to reliability and lifetime. 125°C.
Note 2:
The inputs are protected by back-to-back diodes as well as ESD
Note 6:
Thermal resistance varies with the amount of PC board metal protection diodes to each power supply. If the differential input voltage connected to the package. The specified values are for short traces exceeds 3.6V or the input extends more than 500mV beyond the power connected to the leads. supply, the input current should be limited to less than 10mA.
Note 7:
The input bias current is the average of the currents through the
Note 3:
A heat sink may be required to keep the junction temperature positive and negative input pins. below the absolute maximum rating when the output is shorted
Note 8:
Full power bandwidth is calculated from the slew rate FPBW = indefinitely. SR/π • VP-P.
Note 4:
LTC6261I/LTC6262I/LTC6263I are guaranteed functional over the temperature range of –40°C to 125°C. The LTC6261H/LTC6262H/ LTC6263H are guaranteed functional over the temperature range of –40°C to 125°C. 626123fa 6 For more information www.linear.com/LTC6261 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
