Datasheet LTC6261, LTC6262, LTC6263 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 30MHz, 240µA Power Efficient Rail-to-Rail I/O Op Amps |
| Pages / Page | 26 / 7 — typicAl perForMAnce chArActeristics. Input VOS Histogram. VOS vs … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
typicAl perForMAnce chArActeristics. Input VOS Histogram. VOS vs Temperature. VOS vs Common Mode. VOS TC (–40°C to 125°C)
Model Line for this Datasheet
- LTC6261HDC#PBF LTC6261HDC#TRMPBF LTC6261HDC#TRPBF LTC6261HS6#PBF LTC6261HS6#TRMPBF LTC6261HS6#TRPBF LTC6261IDC#PBF LTC6261IDC#TRMPBF LTC6261IDC#TRPBF LTC6261IS6#PBF LTC6261IS6#TRMPBF LTC6261IS6#TRPBF
- LTC6262HDC#PBF LTC6262HDC#TRMPBF LTC6262HDC#TRPBF LTC6262HMS#PBF LTC6262HMS#TRPBF LTC6262HMS8#PBF LTC6262HMS8#TRPBF LTC6262HTS8#PBF LTC6262HTS8#TRMPBF LTC6262HTS8#TRPBF LTC6262IDC#PBF LTC6262IDC#TRMPBF LTC6262IDC#TRPBF LTC6262IMS#PBF LTC6262IMS#TRPBF LTC6262IMS8#PBF LTC6262IMS8#TRPBF LTC6262ITS8#PBF LTC6262ITS8#TRMPBF LTC6262ITS8#TRPBF
Text Version of Document
LTC6261/LTC6262/LTC6263

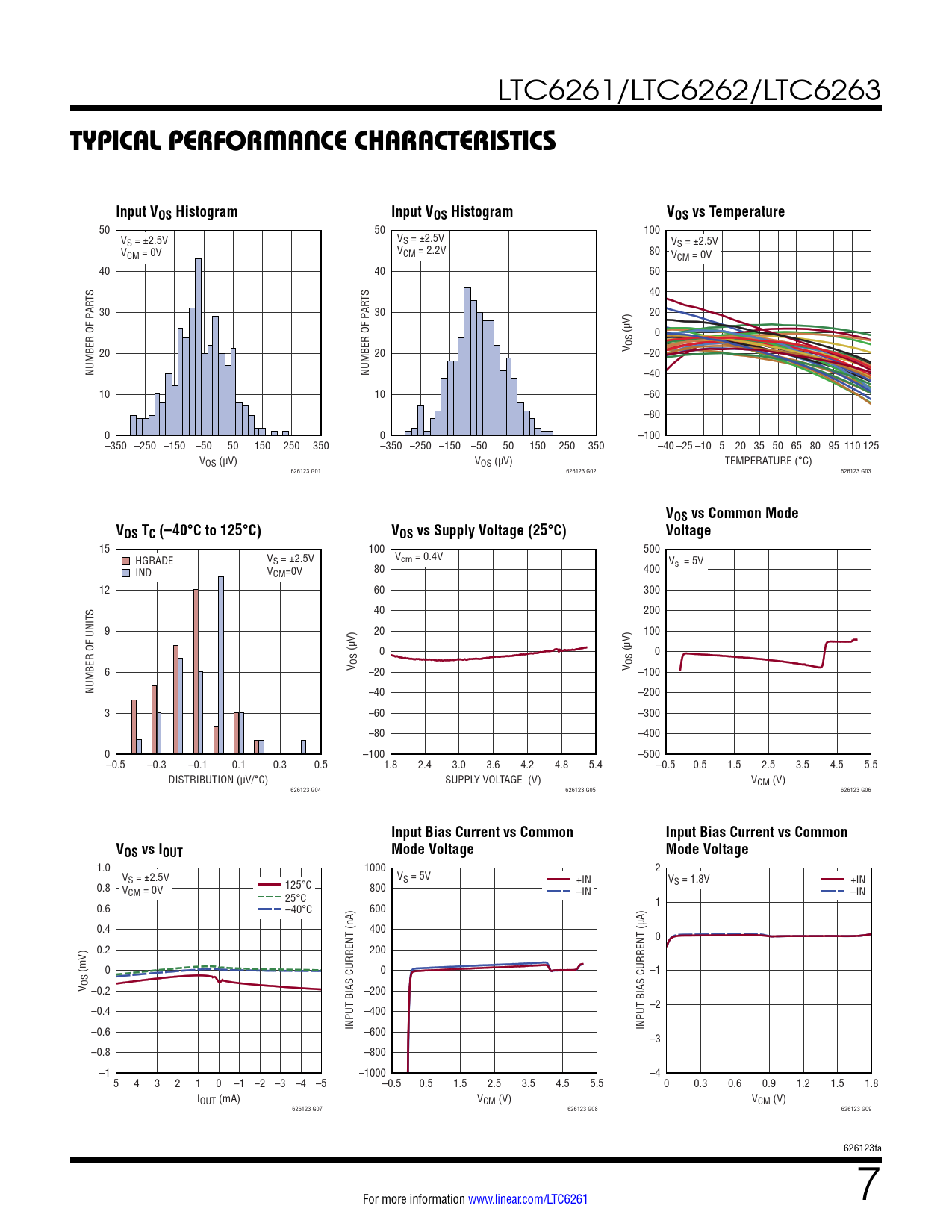

typicAl perForMAnce chArActeristics Input VOS Histogram Input VOS Histogram VOS vs Temperature
50 50 100 VS = ±2.5V VS = ±2.5V VS = ±2.5V VCM = 0V VCM = 2.2V 80 VCM = 0V 40 40 60 TS TS 40 AR 30 AR 30 20 V) (µ 0 20 20 V OS –20 NUMBER OF P NUMBER OF P –40 10 10 –60 –80 0 0 –100 –350 –250 –150 –50 50 150 250 350 –350 –250 –150 –50 50 150 250 350 –40 –25 –10 5 20 35 50 65 80 95 110 125 VOS (µV) VOS (µV) TEMPERATURE (°C) 626123 G01 626123 G02 626123 G03
VOS vs Common Mode VOS TC (–40°C to 125°C) VOS vs Supply Voltage (25°C) Voltage
15 100 500 HGRADE VS = ±2.5V Vcm = 0.4V Vs = 5V IND VCM=0V 80 400 12 60 300 40 200 9 20 100 V) V) (µ 0 (µ 0 6 V OS –20 V OS –100 NUMBER OF UNITS –40 –200 3 –60 –300 –80 –400 0 –100 –500 –0.5 –0.3 –0.1 0.1 0.3 0.5 1.8 2.4 3.0 3.6 4.2 4.8 5.4 –0.5 0.5 1.5 2.5 3.5 4.5 5.5 DISTRIBUTION (µV/°C) SUPPLY VOLTAGE (V) VCM (V) 626123 G04 626123 G05 626123 G06
Input Bias Current vs Common Input Bias Current vs Common VOS vs IOUT Mode Voltage Mode Voltage
1.0 1000 2 VS = ±2.5V VS = 5V +IN V 0.8 S = 1.8V +IN VCM = 0V 125°C 800 25°C –IN –IN 1 0.6 –40°C 600 0.4 400 0 0.2 200 (mV) 0 0 –1 V OS –0.2 –200 –2 –0.4 –400 –0.6 INPUT BIAS CURRENT (nA) –600 INPUT BIAS CURRENT (µA) –3 –0.8 –800 –1 –1000 –4 5 4 3 2 1 0 –1 –2 –3 –4 –5 –0.5 0.5 1.5 2.5 3.5 4.5 5.5 0 0.3 0.6 0.9 1.2 1.5 1.8 IOUT (mA) VCM (V) VCM (V) 626123 G07 626123 G08 626123 G09 626123fa For more information www.linear.com/LTC6261 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
