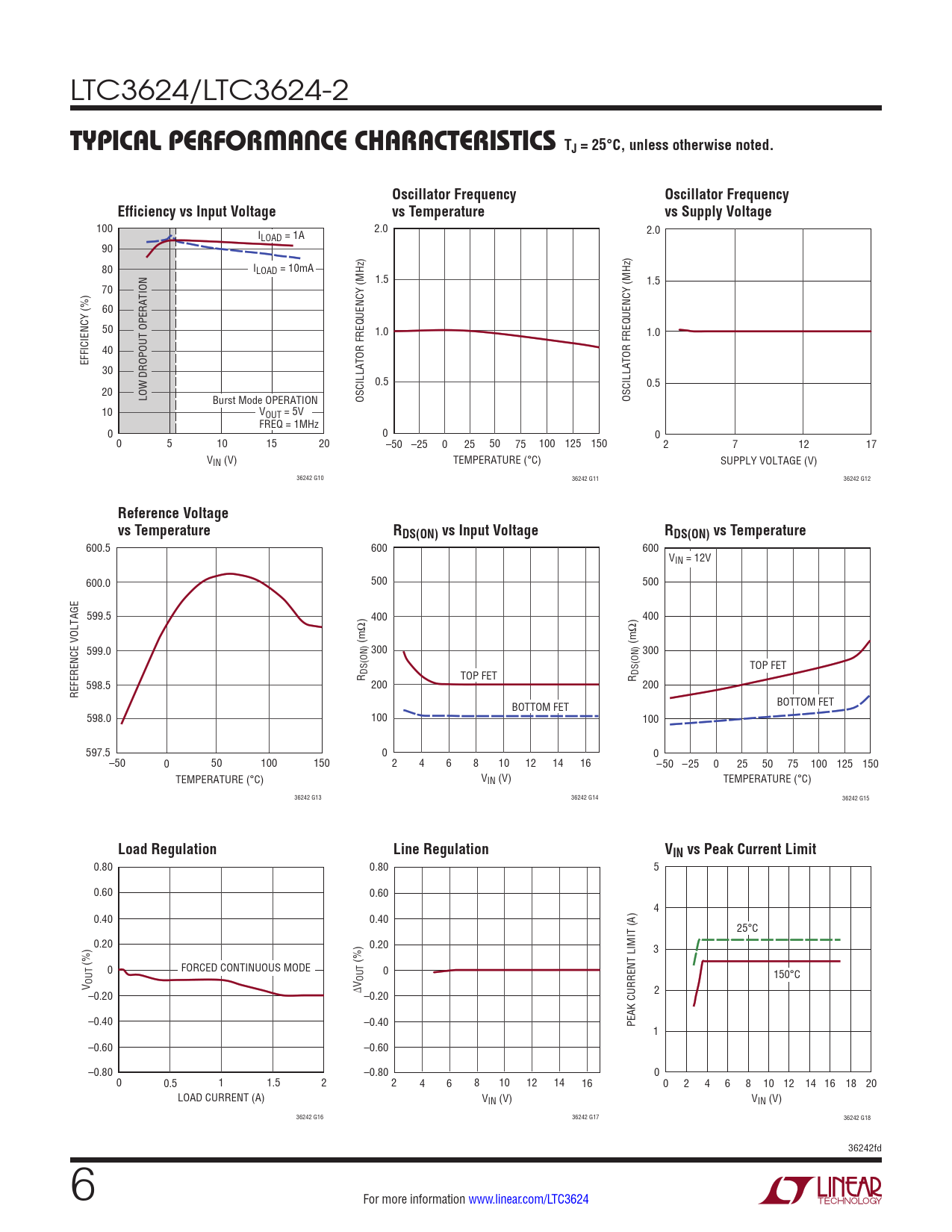

Typical perForMance characTerisTics TJ = 25°C, unless otherwise noted. Oscillator Frequency. Efficiency vs Input Voltage
