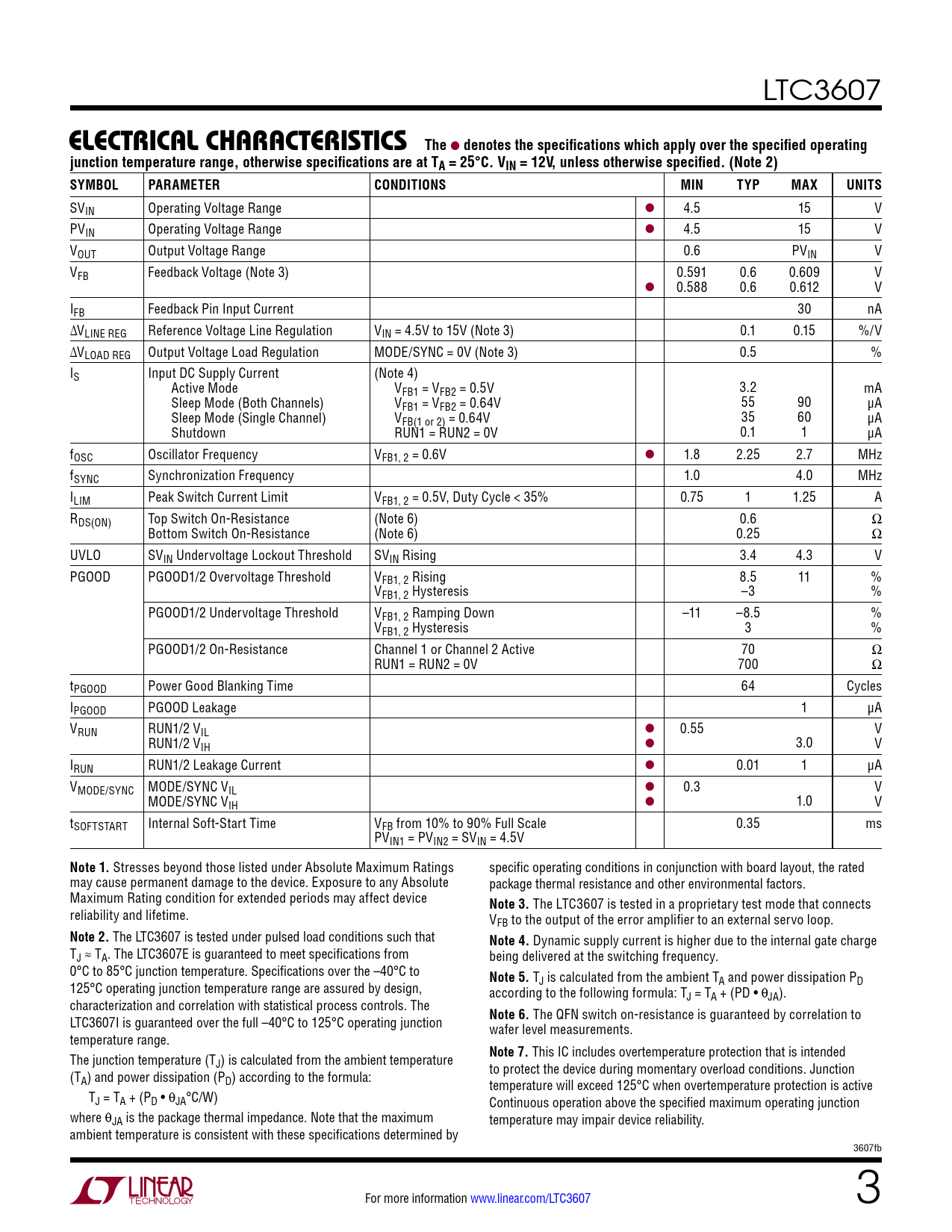

LTC3607
elecTrical characTerisTics The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, unless otherwise specified. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SVIN Operating Voltage Range l 4.5 15 V PVIN Operating Voltage Range l 4.5 15 V VOUT Output Voltage Range 0.6 PVIN V VFB Feedback Voltage (Note 3) 0.591 0.6 0.609 V l 0.588 0.6 0.612 V IFB Feedback Pin Input Current 30 nA ΔVLINE REG Reference Voltage Line Regulation VIN = 4.5V to 15V (Note 3) 0.1 0.15 %/V ΔVLOAD REG Output Voltage Load Regulation MODE/SYNC = 0V (Note 3) 0.5 % IS Input DC Supply Current (Note 4) Active Mode VFB1 = VFB2 = 0.5V 3.2 mA Sleep Mode (Both Channels) VFB1 = VFB2 = 0.64V 55 90 µA Sleep Mode (Single Channel) VFB(1 or 2) = 0.64V 35 60 µA Shutdown RUN1 = RUN2 = 0V 0.1 1 µA fOSC Oscillator Frequency VFB1, 2 = 0.6V l 1.8 2.25 2.7 MHz fSYNC Synchronization Frequency 1.0 4.0 MHz ILIM Peak Switch Current Limit VFB1, 2 = 0.5V, Duty Cycle < 35% 0.75 1 1.25 A RDS(ON) Top Switch On-Resistance (Note 6) 0.6 Ω Bottom Switch On-Resistance (Note 6) 0.25 Ω UVLO SVIN Undervoltage Lockout Threshold SVIN Rising 3.4 4.3 V PGOOD PGOOD1/2 Overvoltage Threshold VFB1, 2 Rising 8.5 11 % VFB1, 2 Hysteresis –3 % PGOOD1/2 Undervoltage Threshold VFB1, 2 Ramping Down –11 –8.5 % VFB1, 2 Hysteresis 3 % PGOOD1/2 On-Resistance Channel 1 or Channel 2 Active 70 Ω RUN1 = RUN2 = 0V 700 Ω tPGOOD Power Good Blanking Time 64 Cycles IPGOOD PGOOD Leakage 1 µA VRUN RUN1/2 VIL l 0.55 V RUN1/2 VIH l 3.0 V IRUN RUN1/2 Leakage Current l 0.01 1 µA VMODE/SYNC MODE/SYNC VIL l 0.3 V MODE/SYNC VIH l 1.0 V tSOFTSTART Internal Soft-Start Time VFB from 10% to 90% Full Scale 0.35 ms PVIN1 = PVIN2 = SVIN = 4.5V
