LTC3616

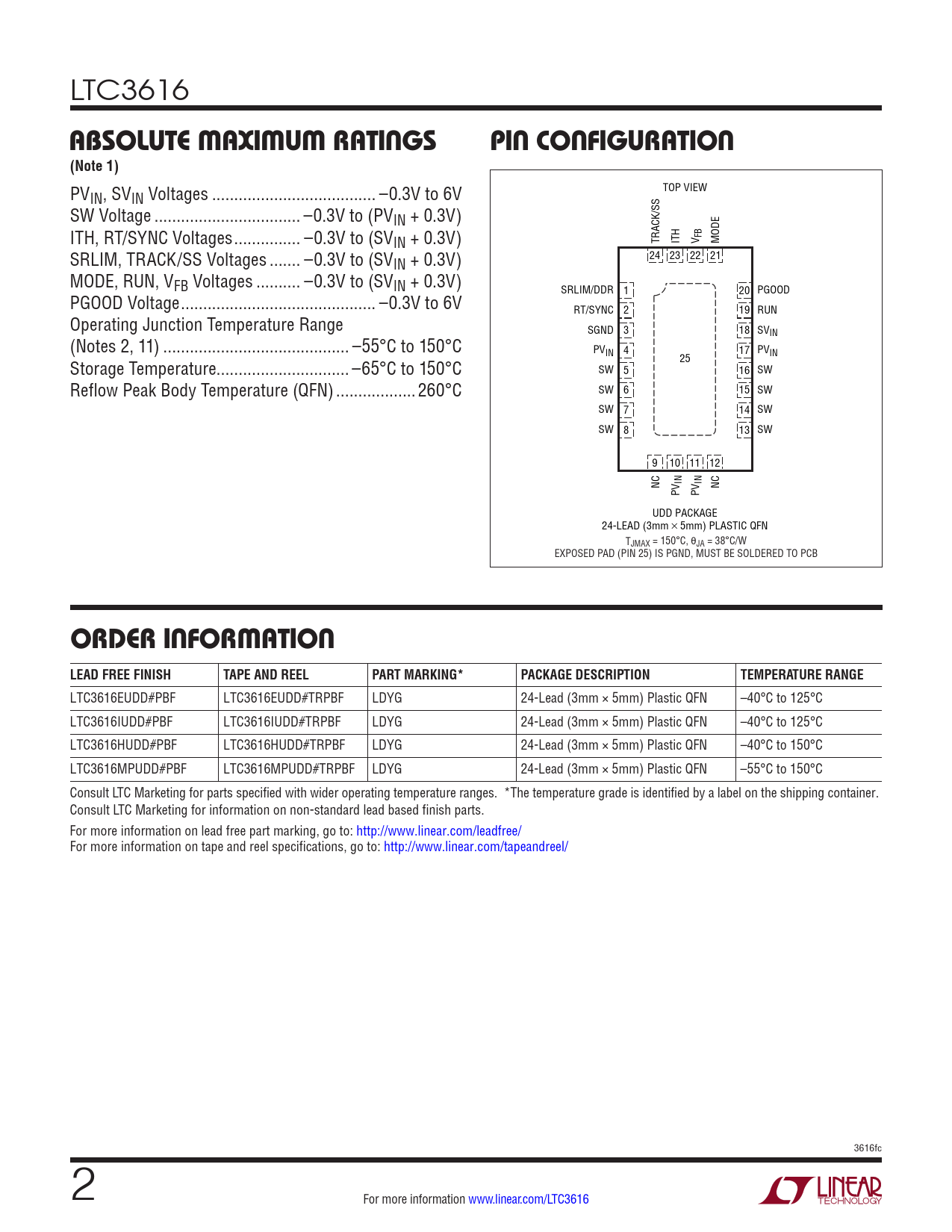

absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
PV TOP VIEW IN, SVIN Voltages ... –0.3V to 6V SW Voltage ... –0.3V to (PVIN + 0.3V) ITH, RT/SYNC Voltages ... –0.3V to (SVIN + 0.3V) TRACK/SS ITH V FB MODE SRLIM, TRACK/SS Voltages ... –0.3V to (SVIN + 0.3V) 24 23 22 21 MODE, RUN, VFB Voltages .. –0.3V to (SVIN + 0.3V) SRLIM/DDR 1 20 PGOOD PGOOD Voltage .. –0.3V to 6V RT/SYNC 2 19 RUN Operating Junction Temperature Range SGND 3 18 SVIN (Notes 2, 11) .. –55°C to 150°C PVIN 4 17 PVIN Storage Temperature.. –65°C to 150°C 25 SW 5 16 SW Reflow Peak Body Temperature (QFN) ..260°C SW 6 15 SW SW 7 14 SW SW 8 13 SW 9 10 11 12 NC IN IN NC PV PV UDD PACKAGE 24-LEAD (3mm × 5mm) PLASTIC QFN TJMAX = 150°C, θJA = 38°C/W EXPOSED PAD (PIN 25) IS PGND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3616EUDD#PBF LTC3616EUDD#TRPBF LDYG 24-Lead (3mm × 5mm) Plastic QFN –40°C to 125°C LTC3616IUDD#PBF LTC3616IUDD#TRPBF LDYG 24-Lead (3mm × 5mm) Plastic QFN –40°C to 125°C LTC3616HUDD#PBF LTC3616HUDD#TRPBF LDYG 24-Lead (3mm × 5mm) Plastic QFN –40°C to 150°C LTC3616MPUDD#PBF LTC3616MPUDD#TRPBF LDYG 24-Lead (3mm × 5mm) Plastic QFN –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3616fc 2 For more information www.linear.com/LTC3616 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
