Datasheet LTC3616 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 6A, 4MHz Monolithic Synchronous Step-Down DC/DC Converter |
| Pages / Page | 28 / 3 — e lecTrical characTerisTics The. denotes the specifications which apply … |
| File Format / Size | PDF / 541 Kb |
| Document Language | English |
e lecTrical characTerisTics The. denotes the specifications which apply over the specified operating
Model Line for this Datasheet
Text Version of Document
LTC3616
e lecTrical characTerisTics The
l

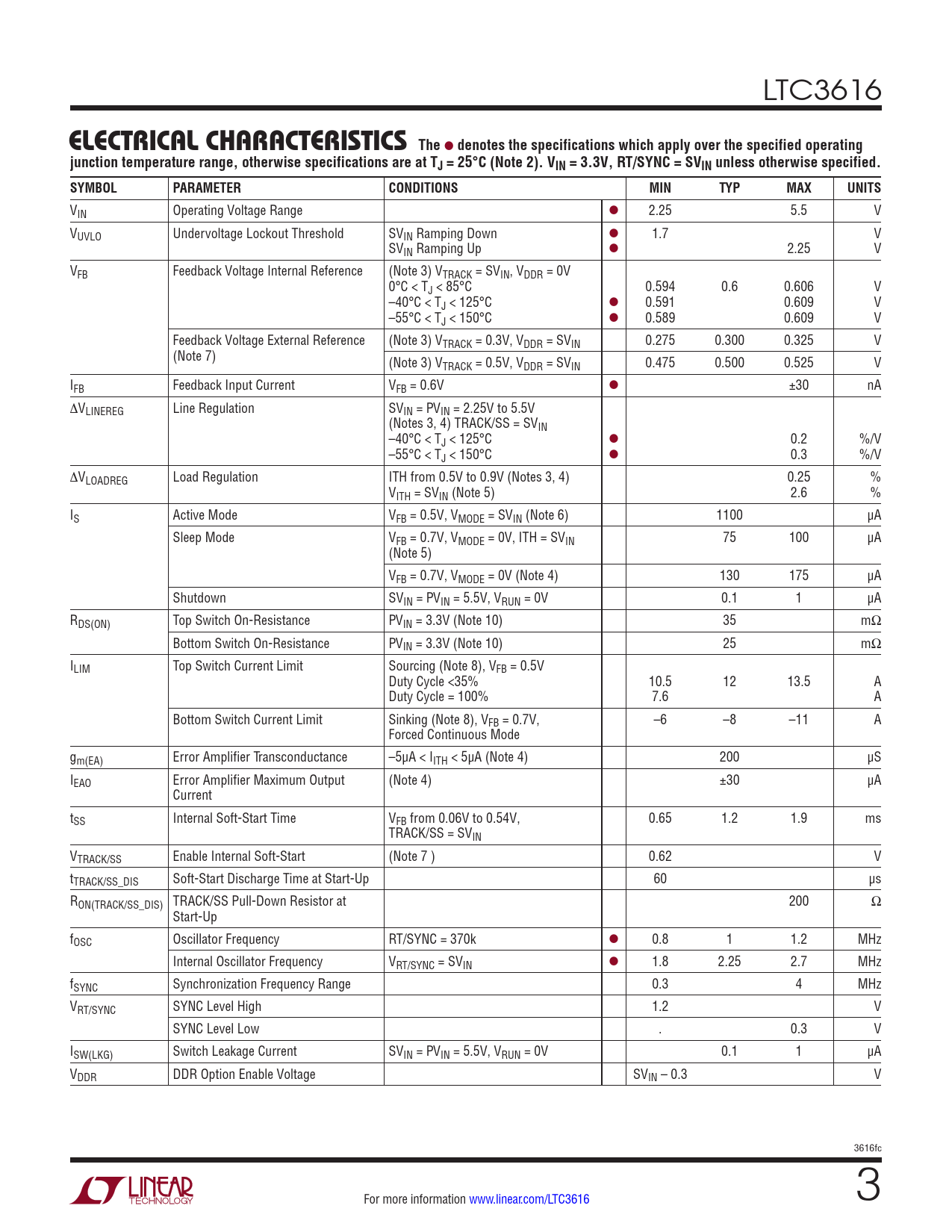

denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TJ = 25°C (Note 2). VIN = 3.3V, RT/SYNC = SVIN unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Operating Voltage Range l 2.25 5.5 V VUVLO Undervoltage Lockout Threshold SVIN Ramping Down l 1.7 V SVIN Ramping Up l 2.25 V VFB Feedback Voltage Internal Reference (Note 3) VTRACK = SVIN, VDDR = 0V 0°C < TJ < 85°C 0.594 0.6 0.606 V –40°C < TJ < 125°C l 0.591 0.609 V –55°C < TJ < 150°C l 0.589 0.609 V Feedback Voltage External Reference (Note 3) VTRACK = 0.3V, VDDR = SVIN 0.275 0.300 0.325 V (Note 7) (Note 3) VTRACK = 0.5V, VDDR = SVIN 0.475 0.500 0.525 V IFB Feedback Input Current VFB = 0.6V l ±30 nA ∆VLINEREG Line Regulation SVIN = PVIN = 2.25V to 5.5V (Notes 3, 4) TRACK/SS = SVIN –40°C < TJ < 125°C l 0.2 %/V –55°C < TJ < 150°C l 0.3 %/V ∆VLOADREG Load Regulation ITH from 0.5V to 0.9V (Notes 3, 4) 0.25 % VITH = SVIN (Note 5) 2.6 % IS Active Mode VFB = 0.5V, VMODE = SVIN (Note 6) 1100 µA Sleep Mode VFB = 0.7V, VMODE = 0V, ITH = SVIN 75 100 µA (Note 5) VFB = 0.7V, VMODE = 0V (Note 4) 130 175 µA Shutdown SVIN = PVIN = 5.5V, VRUN = 0V 0.1 1 µA RDS(ON) Top Switch On-Resistance PVIN = 3.3V (Note 10) 35 mΩ Bottom Switch On-Resistance PVIN = 3.3V (Note 10) 25 mΩ ILIM Top Switch Current Limit Sourcing (Note 8), VFB = 0.5V Duty Cycle <35% 10.5 12 13.5 A Duty Cycle = 100% 7.6 A Bottom Switch Current Limit Sinking (Note 8), VFB = 0.7V, –6 –8 –11 A Forced Continuous Mode gm(EA) Error Amplifier Transconductance –5µA < IITH < 5µA (Note 4) 200 µS IEAO Error Amplifier Maximum Output (Note 4) ±30 µA Current tSS Internal Soft-Start Time VFB from 0.06V to 0.54V, 0.65 1.2 1.9 ms TRACK/SS = SVIN VTRACK/SS Enable Internal Soft-Start (Note 7 ) 0.62 V tTRACK/SS_DIS Soft-Start Discharge Time at Start-Up 60 µs RON(TRACK/SS_DIS) TRACK/SS Pull-Down Resistor at 200 Ω Start-Up fOSC Oscillator Frequency RT/SYNC = 370k l 0.8 1 1.2 MHz Internal Oscillator Frequency VRT/SYNC = SVIN l 1.8 2.25 2.7 MHz fSYNC Synchronization Frequency Range 0.3 4 MHz VRT/SYNC SYNC Level High 1.2 V SYNC Level Low . 0.3 V ISW(LKG) Switch Leakage Current SVIN = PVIN = 5.5V, VRUN = 0V 0.1 1 µA VDDR DDR Option Enable Voltage SVIN – 0.3 V 3616fc For more information www.linear.com/LTC3616 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
