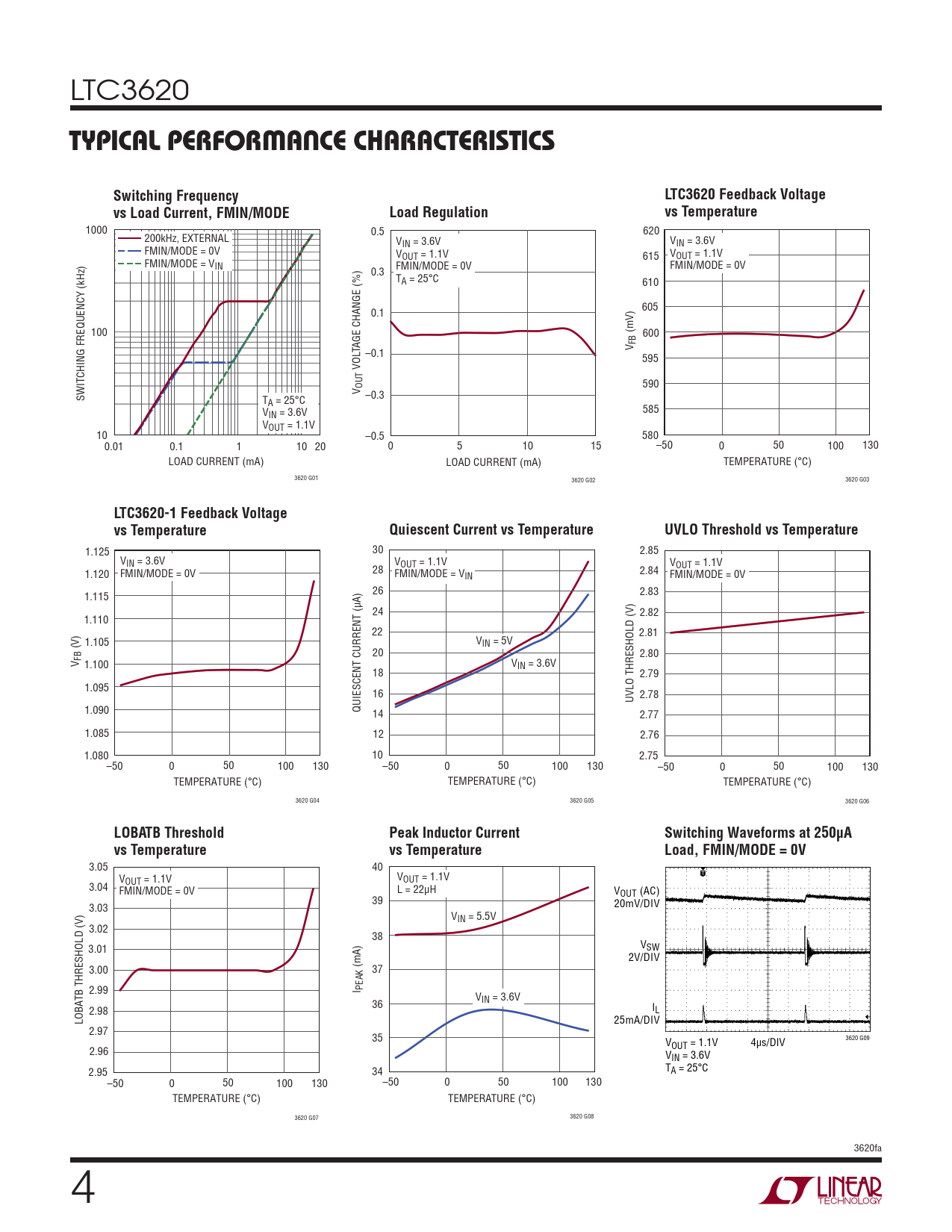

TYPICAL PERFORMANCE CHARACTERISTICS. Switching Frequency. LTC3620 Feedback Voltage. vs Load Current, FMIN/MODE. Load Regulation
