Datasheet LTC3620 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Ultralow Power 15mA Synchronous Step-Down Switching Regulator |
| Pages / Page | 18 / 8 — BLOCK DIAGRAM |
| File Format / Size | PDF / 331 Kb |
| Document Language | English |
BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
LTC3620

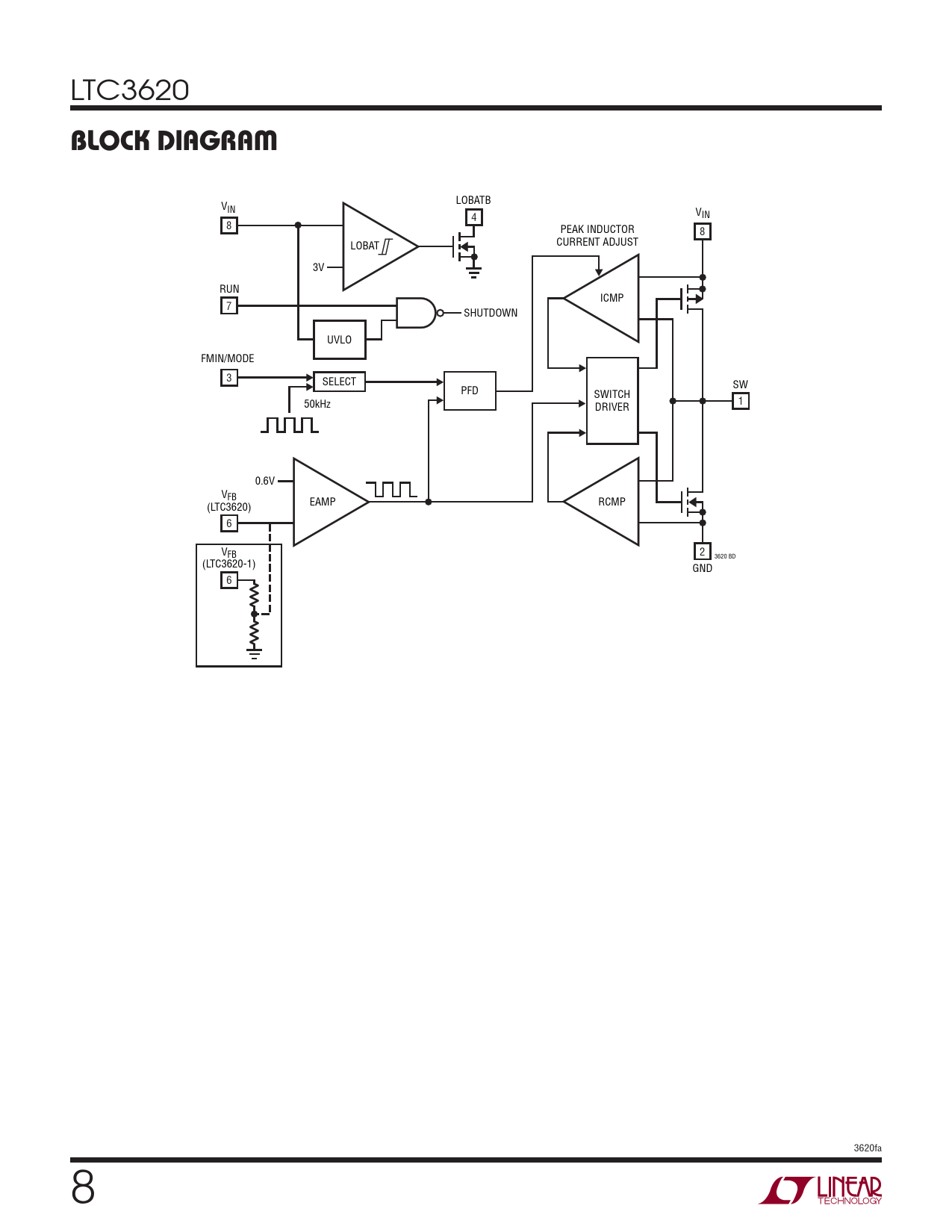

BLOCK DIAGRAM
LOBATB VIN VIN 4 8 PEAK INDUCTOR 8 CURRENT ADJUST LOBAT 3V RUN ICMP 7 SHUTDOWN UVLO FMIN/MODE 3 SELECT SW PFD SWITCH 50kHz 1 DRIVER 0.6V VFB EAMP RCMP (LTC3620) 6 V 2 FB 3620 BD (LTC3620-1) GND 6 3620fa 8 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATIONS RELATED PARTS
