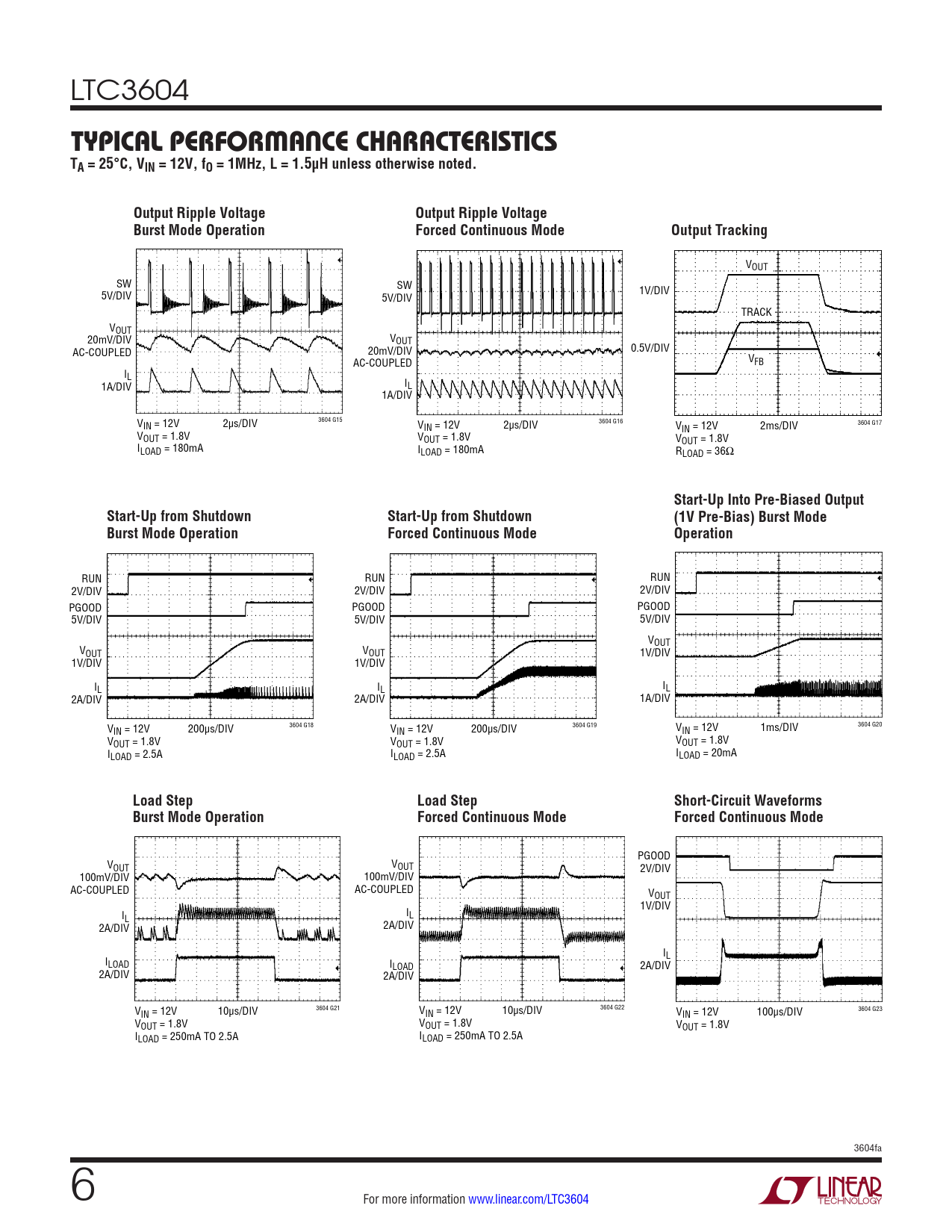

TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, VIN = 12V, fO = 1MHz, L = 1.5µH unless otherwise noted
