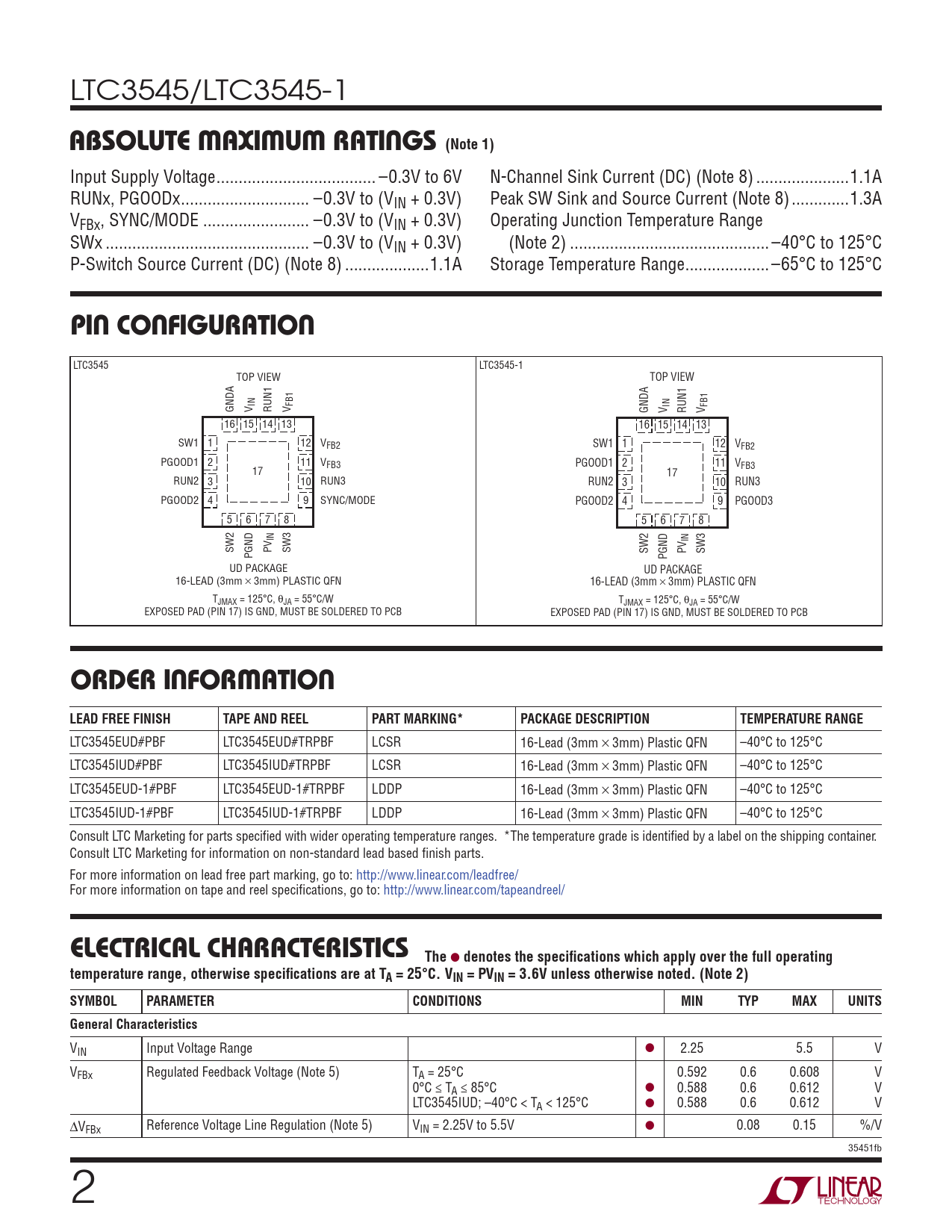

LTC3545/LTC3545-1 ABSOLUTE MAXIMUM RATINGS (Note 1) Input Supply Voltage .. –0.3V to 6V N-Channel Sink Current (DC) (Note 8) ...1.1A RUNx, PGOODx ... –0.3V to (VIN + 0.3V) Peak SW Sink and Source Current (Note 8) ...1.3A VFBx, SYNC/MODE .. –0.3V to (VIN + 0.3V) Operating Junction Temperature Range SWx .. –0.3V to (VIN + 0.3V) (Note 2) ... –40°C to 125°C P-Switch Source Current (DC) (Note 8) ...1.1A Storage Temperature Range ... –65°C to 125°C PIN CONFIGURATION LTC3545 LTC3545-1 TOP VIEW TOP VIEW IN FB1 IN FB1 GNDA V RUN1 V GNDA V RUN1 V 16 15 14 13 16 15 14 13 SW1 1 12 VFB2 SW1 1 12 VFB2 PGOOD1 2 11 VFB3 PGOOD1 2 11 VFB3 17 17 RUN2 3 10 RUN3 RUN2 3 10 RUN3 PGOOD2 4 9 SYNC/MODE PGOOD2 4 9 PGOOD3 5 6 7 8 5 6 7 8 IN IN SW2 PV SW3 PV PGND SW2 SW3 PGND UD PACKAGE UD PACKAGE 16-LEAD (3mm s 3mm) PLASTIC QFN 16-LEAD (3mm s 3mm) PLASTIC QFN TJMAX = 125°C, θJA = 55°C/W TJMAX = 125°C, θJA = 55°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB ORDER INFORMATIONLEAD FREE FINISHTAPE AND REELPART MARKING*PACKAGE DESCRIPTIONTEMPERATURE RANGE LTC3545EUD#PBF LTC3545EUD#TRPBF LCSR 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C LTC3545IUD#PBF LTC3545IUD#TRPBF LCSR 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C LTC3545EUD-1#PBF LTC3545EUD-1#TRPBF LDDP 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C LTC3545IUD-1#PBF LTC3545IUD-1#TRPBF LDDP 16-Lead (3mm × 3mm) Plastic QFN –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ ELECTRICAL CHARACTERISTICSThe ● denotes the specifi cations which apply over the full operatingtemperature range, otherwise specifi cations are at TA = 25°C. VIN = PVIN = 3.6V unless otherwise noted. (Note 2)SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITSGeneral Characteristics VIN Input Voltage Range ● 2.25 5.5 V VFBx Regulated Feedback Voltage (Note 5) TA = 25°C 0.592 0.6 0.608 V 0°C ≤ TA ≤ 85°C ● 0.588 0.6 0.612 V LTC3545IUD; –40°C < TA < 125°C ● 0.588 0.6 0.612 V ΔVFBx Reference Voltage Line Regulation (Note 5) VIN = 2.25V to 5.5V ● 0.08 0.15 %/V 35451fb 2
