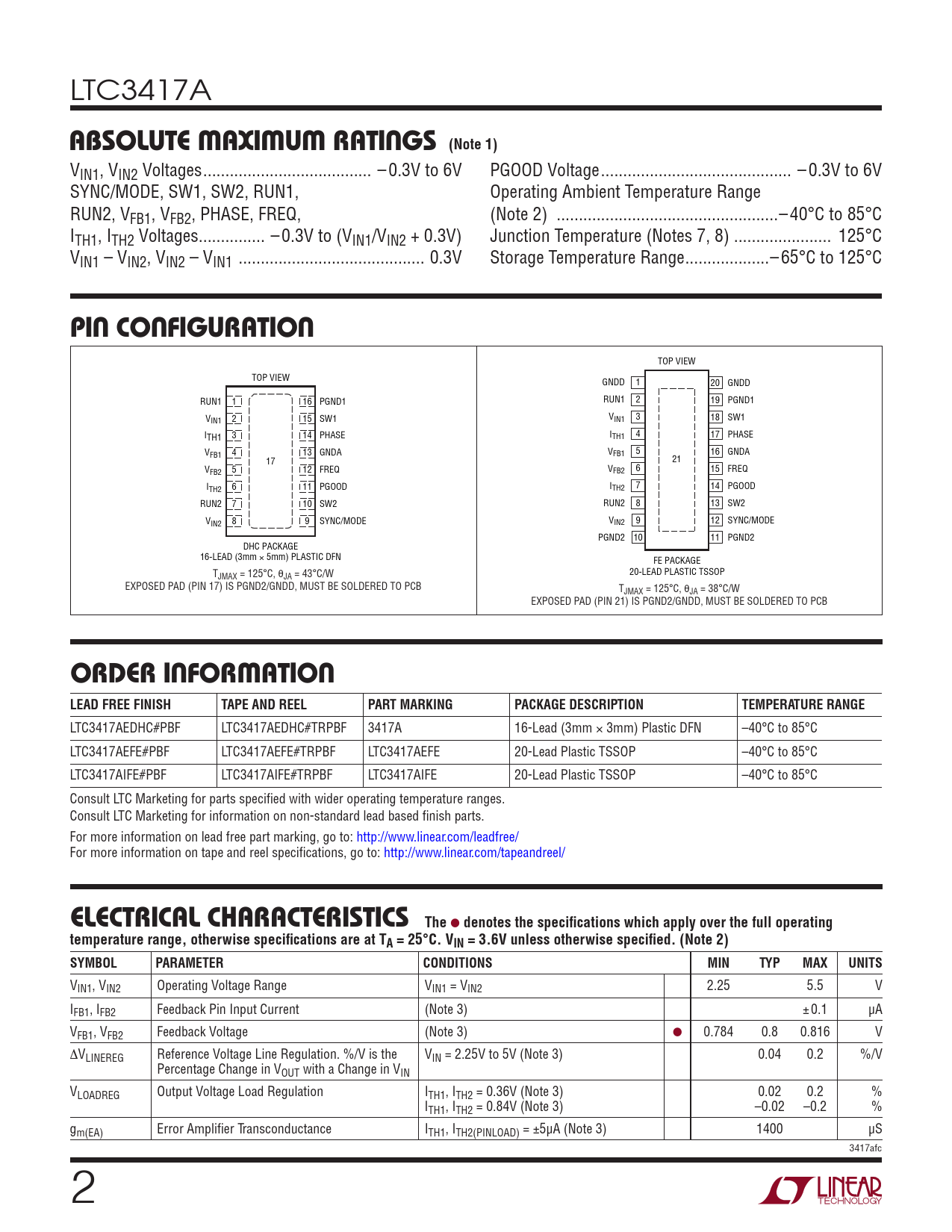

LTC3417A
absoluTe MaxiMuM raTings (Note 1)
VIN1, VIN2 Voltages .. –0.3V to 6V PGOOD Voltage ... –0.3V to 6V SYNC/MODE, SW1, SW2, RUN1, Operating Ambient Temperature Range RUN2, VFB1, VFB2, PHASE, FREQ, (Note 2) ..–40°C to 85°C ITH1, ITH2 Voltages... –0.3V to (VIN1/VIN2 + 0.3V) Junction Temperature (Notes 7, 8) .. 125°C VIN1 – VIN2, VIN2 – VIN1 .. 0.3V Storage Temperature Range ...–65°C to 125°C
pin conFiguraTion
TOP VIEW TOP VIEW GNDD 1 20 GNDD RUN1 1 16 PGND1 RUN1 2 19 PGND1 VIN1 2 15 SW1 VIN1 3 18 SW1 ITH1 3 14 PHASE ITH1 4 17 PHASE VFB1 4 13 GNDA VFB1 5 16 GNDA 17 21 VFB2 5 12 FREQ VFB2 6 15 FREQ ITH2 6 11 PGOOD ITH2 7 14 PGOOD RUN2 7 10 SW2 RUN2 8 13 SW2 VIN2 8 9 SYNC/MODE VIN2 9 12 SYNC/MODE PGND2 10 11 PGND2 DHC PACKAGE 16-LEAD (3mm × 5mm) PLASTIC DFN FE PACKAGE TJMAX = 125°C, θJA = 43°C/W 20-LEAD PLASTIC TSSOP EXPOSED PAD (PIN 17) IS PGND2/GNDD, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 38°C/W EXPOSED PAD (PIN 21) IS PGND2/GNDD, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3417AEDHC#PBF LTC3417AEDHC#TRPBF 3417A 16-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC3417AEFE#PBF LTC3417AEFE#TRPBF LTC3417AEFE 20-Lead Plastic TSSOP –40°C to 85°C LTC3417AIFE#PBF LTC3417AIFE#TRPBF LTC3417AIFE 20-Lead Plastic TSSOP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 3.6V unless otherwise specified. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN1, VIN2 Operating Voltage Range VIN1 = VIN2 2.25 5.5 V IFB1, IFB2 Feedback Pin Input Current (Note 3) ±0.1 µA VFB1, VFB2 Feedback Voltage (Note 3) ● 0.784 0.8 0.816 V ∆VLINEREG Reference Voltage Line Regulation. %/V is the VIN = 2.25V to 5V (Note 3) 0.04 0.2 %/V Percentage Change in VOUT with a Change in VIN VLOADREG Output Voltage Load Regulation ITH1, ITH2 = 0.36V (Note 3) 0.02 0.2 % ITH1, ITH2 = 0.84V (Note 3) –0.02 –0.2 % gm(EA) Error Amplifier Transconductance ITH1, ITH2(PINLOAD) = ±5µA (Note 3) 1400 µS 3417afc 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Package Description Revision History Related Parts
