LT1941

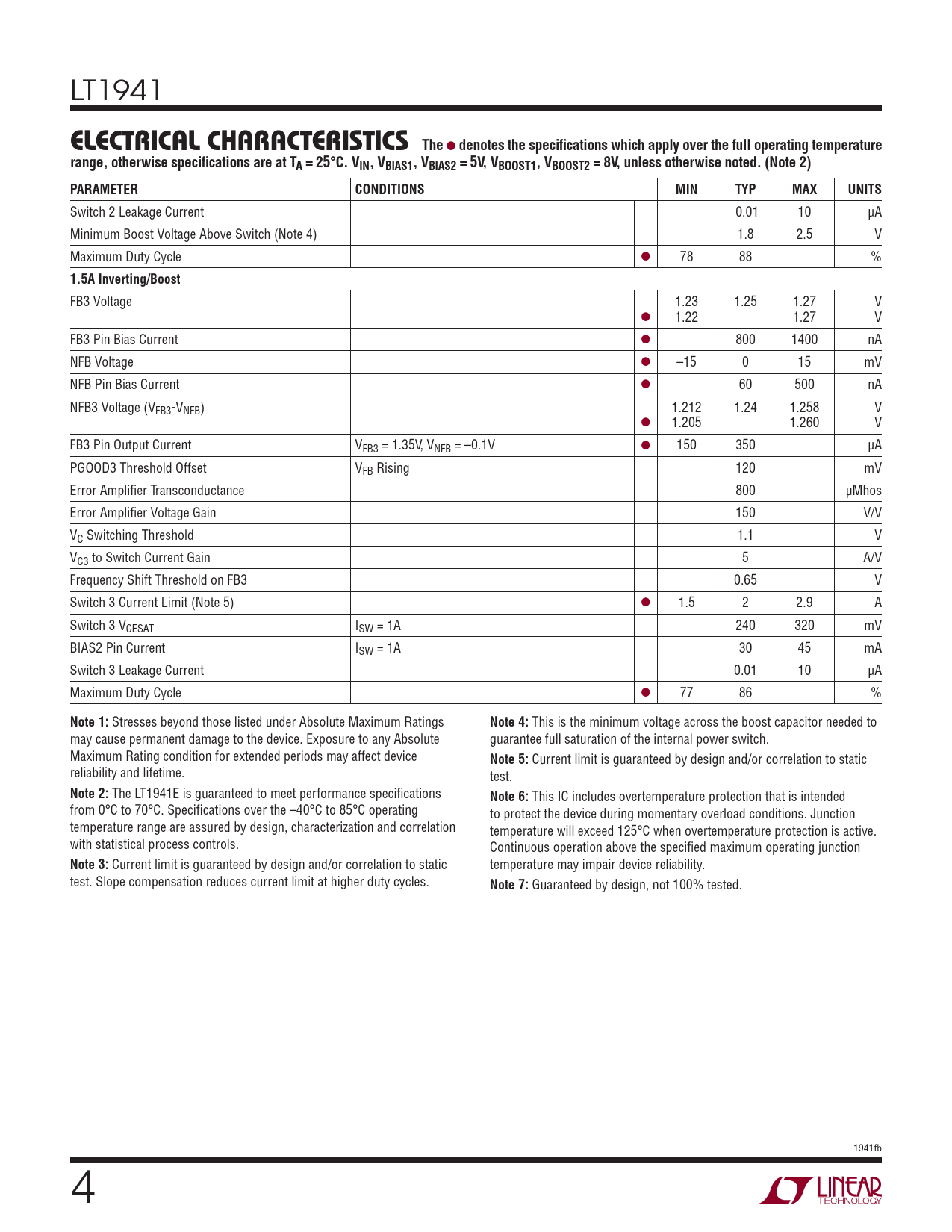

The ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN, VBIAS1, VBIAS2 = 5V, VBOOST1, VBOOST2 = 8V, unless otherwise noted. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Switch 2 Leakage Current 0.01 10 μA Minimum Boost Voltage Above Switch (Note 4) 1.8 2.5 V Maximum Duty Cycle l 78 88 %
1.5A Inverting/Boost
FB3 Voltage 1.23 1.25 1.27 V l 1.22 1.27 V FB3 Pin Bias Current l 800 1400 nA NFB Voltage l –15 0 15 mV NFB Pin Bias Current l 60 500 nA NFB3 Voltage (VFB3-VNFB) 1.212 1.24 1.258 V l 1.205 1.260 V FB3 Pin Output Current VFB3 = 1.35V, VNFB = –0.1V l 150 350 μA PGOOD3 Threshold Offset VFB Rising 120 mV Error Amplifi er Transconductance 800 μMhos Error Amplifi er Voltage Gain 150 V/V VC Switching Threshold 1.1 V VC3 to Switch Current Gain 5 A/V Frequency Shift Threshold on FB3 0.65 V Switch 3 Current Limit (Note 5) l 1.5 2 2.9 A Switch 3 VCESAT ISW = 1A 240 320 mV BIAS2 Pin Current ISW = 1A 30 45 mA Switch 3 Leakage Current 0.01 10 μA Maximum Duty Cycle l 77 86 %
