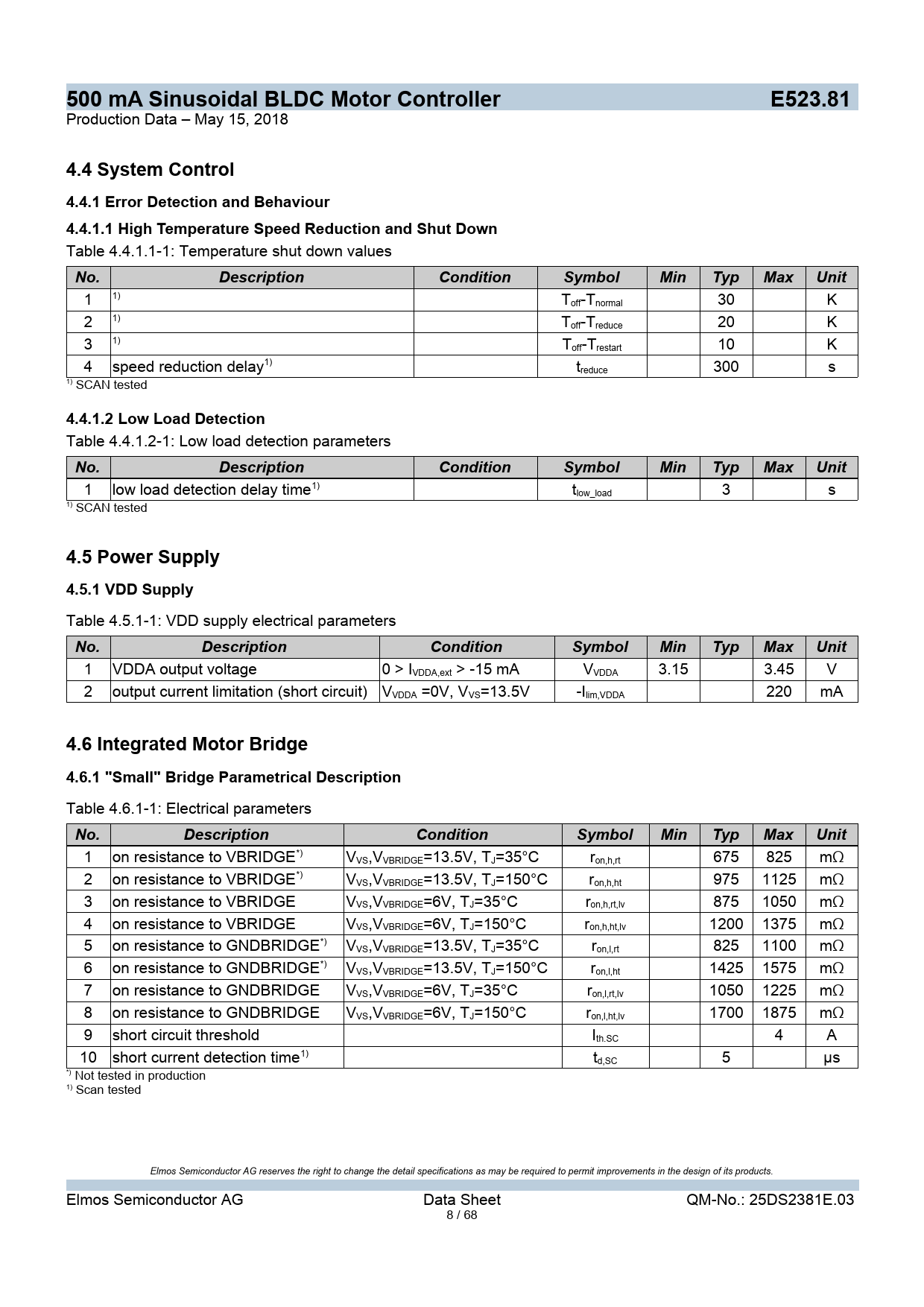

Datasheet E523.81 (Elmos) - 8

500 mA Sinusoidal BLDC Motor Controller E523.81
Production Data – May 15, 2018
4.4 System Control 4.4.1 Error Detection and Behaviour 4.4.1.1 High Temperature Speed Reduction and Shut Down
Table 4.4.1.1-1: Temperature shut down values
No. Description Condition Symbol Min Typ Max Unit
1 1) Toff-Tnormal 30 K 2 1) Toff-Treduce 20 K 3 1) Toff-Trestart 10 K 4 speed reduction delay1) treduce 300 s 1) SCAN tested
4.4.1.2 Low Load Detection
Table 4.4.1.2-1: Low load detection parameters
No. Description Condition Symbol Min Typ Max Unit
1 low load detection delay time1) tlow_load 3 s 1) SCAN tested
4.5 Power Supply 4.5.1 VDD Supply
Table 4.5.1-1: VDD supply electrical parameters
No. Description Condition Symbol Min Typ Max Unit
1 VDDA output voltage 0 > IVDDA,ext > -15 mA VVDDA 3.15 3.45 V 2 output current limitation (short circuit) VVDDA =0V, VVS=13.5V -Ilim,VDDA 220 mA
