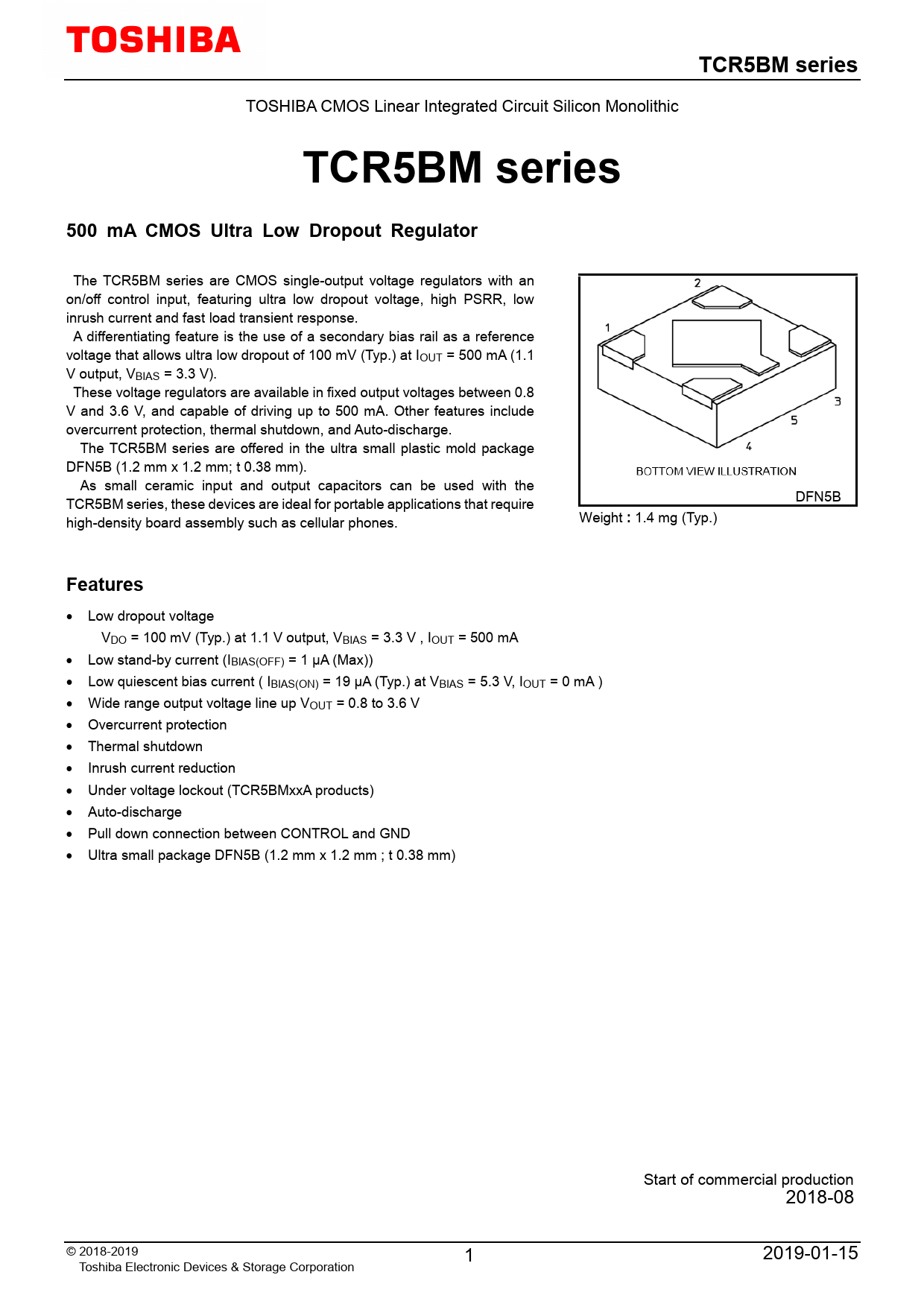

TCR5BM series
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TCR5BM series 500 mA CMOS Ultra Low Dropout Regulator
The TCR5BM series are CMOS single-output voltage regulators with an on/off control input, featuring ultra low dropout voltage, high PSRR, low inrush current and fast load transient response. A differentiating feature is the use of a secondary bias rail as a reference voltage that allows ultra low dropout of 100 mV (Typ.) at IOUT = 500 mA (1.1 V output, VBIAS = 3.3 V). These voltage regulators are available in fixed output voltages between 0.8 V and 3.6 V, and capable of driving up to 500 mA. Other features include overcurrent protection, thermal shutdown, and Auto-discharge. The TCR5BM series are offered in the ultra small plastic mold package DFN5B (1.2 mm x 1.2 mm; t 0.38 mm). As smal ceramic input and output capacitors can be used with the TCR5BM series, these devices are ideal for portable applications that require DFN5B high-density board assembly such as cellular phones. Weight
:
1.4 mg (Typ.)
Features
• Low dropout voltage VDO = 100 mV (Typ.) at 1.1 V output, VBIAS = 3.3 V , IOUT = 500 mA • Low stand-by current (IBIAS(OFF) = 1 μA (Max)) • Low quiescent bias current ( IBIAS(ON) = 19 μA (Typ.) at VBIAS = 5.3 V, IOUT = 0 mA ) • Wide range output voltage line up VOUT = 0.8 to 3.6 V • Overcurrent protection • Thermal shutdown • Inrush current reduction • Under voltage lockout (TCR5BMxxA products) • Auto-discharge • Pull down connection between CONTROL and GND • Ultra small package DFN5B (1.2 mm x 1.2 mm ; t 0.38 mm) Start of commercial production 2018-08 © 2018-2019 1 2019-01-15 Toshiba Electronic Devices & Storage Corporation
