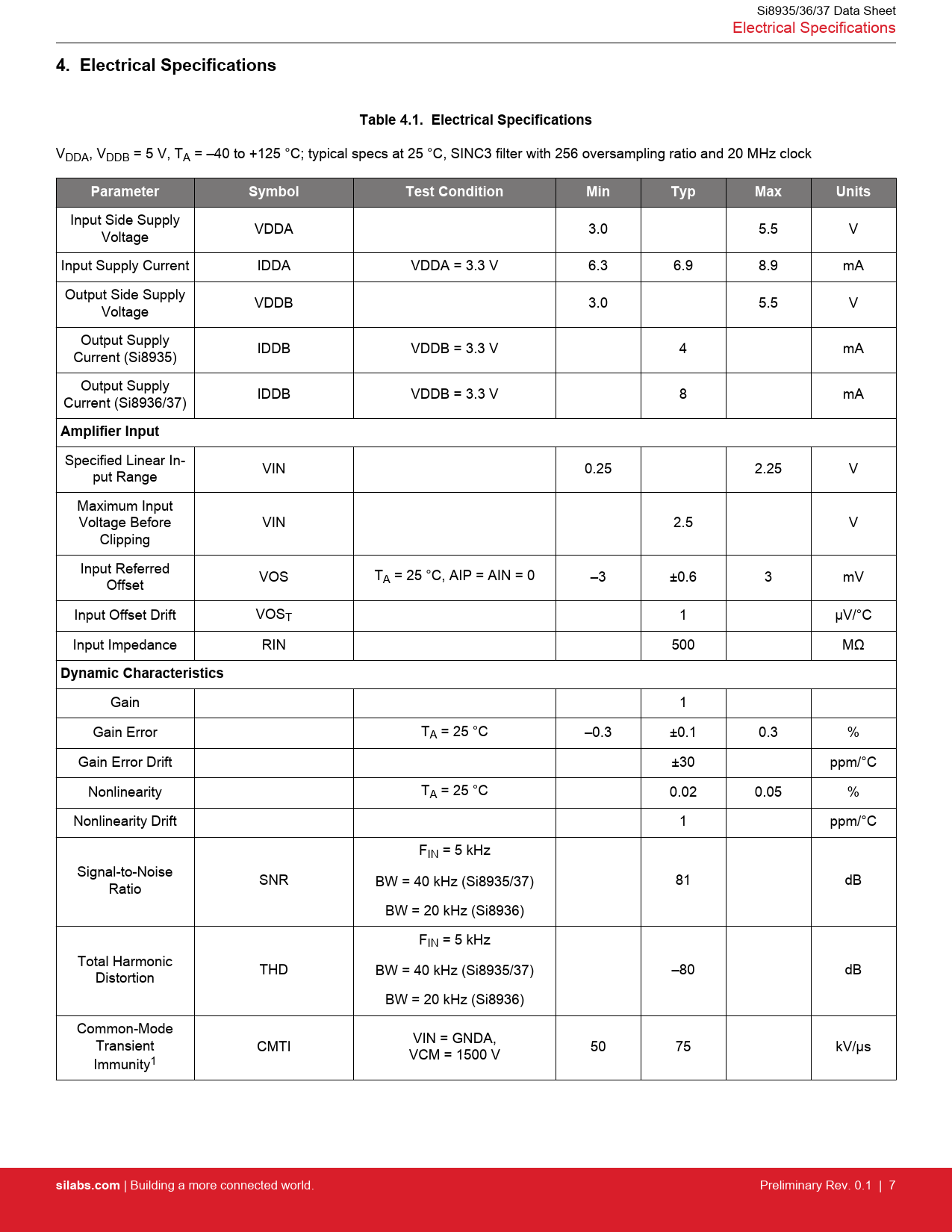

link to page 8 Si8935/36/37 Data Sheet Electrical Specifications
4. Electrical Specifications Table 4.1. Electrical Specifications
VDDA, VDDB = 5 V, TA = –40 to +125 °C; typical specs at 25 °C, SINC3 filter with 256 oversampling ratio and 20 MHz clock
Parameter Symbol Test Condition Min Typ Max Units
Input Side Supply VDDA 3.0 5.5 V Voltage Input Supply Current IDDA VDDA = 3.3 V 6.3 6.9 8.9 mA Output Side Supply VDDB 3.0 5.5 V Voltage Output Supply IDDB VDDB = 3.3 V 4 mA Current (Si8935) Output Supply IDDB VDDB = 3.3 V 8 mA Current (Si8936/37)
Amplifier Input
Specified Linear In- VIN 0.25 2.25 V put Range Maximum Input Voltage Before VIN 2.5 V Clipping Input Referred VOS T Offset A = 25 °C, AIP = AIN = 0 –3 ±0.6 3 mV Input Offset Drift VOST 1 µV/°C Input Impedance RIN 500 MΩ
Dynamic Characteristics
Gain 1 Gain Error TA = 25 °C –0.3 ±0.1 0.3 % Gain Error Drift ±30 ppm/°C Nonlinearity TA = 25 °C 0.02 0.05 % Nonlinearity Drift 1 ppm/°C FIN = 5 kHz Signal-to-Noise SNR 81 dB Ratio BW = 40 kHz (Si8935/37) BW = 20 kHz (Si8936) FIN = 5 kHz Total Harmonic THD –80 dB Distortion BW = 40 kHz (Si8935/37) BW = 20 kHz (Si8936) Common-Mode Transient VIN = GNDA, CMTI 50 75 kV/µs VCM = 1500 V Immunity1
silabs.com
