Recommended Operation Conditions. Figure 6: Recommended Operation Conditions of AS6500. Symbol. Pin. Description. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Document Feedback AS6500 Recommended Operation Conditions
5 Recommended Operation Conditions
Recommended operating ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. Test conditions for guaranteed specification are expressly denoted.

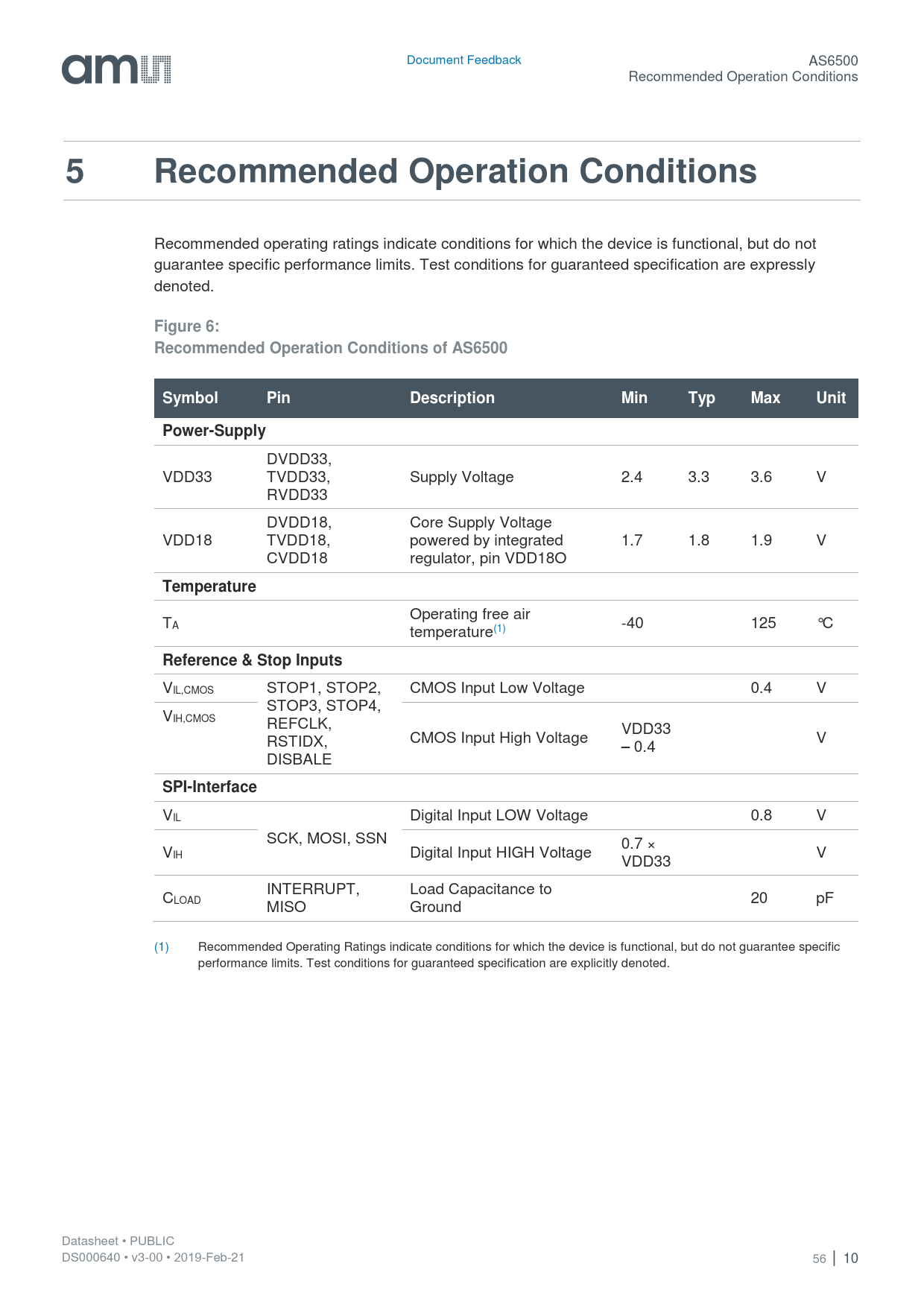

Figure 6: Recommended Operation Conditions of AS6500 Symbol Pin Description Min Typ Max Unit Power-Supply
DVDD33, VDD33 TVDD33, Supply Voltage 2.4 3.3 3.6 V RVDD33 DVDD18, Core Supply Voltage VDD18 TVDD18, powered by integrated 1.7 1.8 1.9 V CVDD18 regulator, pin VDD18O
