Datasheet VOT8123AB, VOT8123AD, VOT8123AG (Vishay)
| Manufacturer | Vishay |
| Description | Optocoupler, Phototriac Output, Non-Zero Crossing, High dV/dt, Low Input Current |
| Pages / Page | 11 / 1 — VOT8123AB, VOT8123AD, VOT8123AG. Optocoupler, Phototriac Output, Non-Zero … |
| Revision | 1.1 |
| File Format / Size | PDF / 186 Kb |
| Document Language | English |
VOT8123AB, VOT8123AD, VOT8123AG. Optocoupler, Phototriac Output, Non-Zero Crossing,. High dV/dt, Low Input Current. FEATURES
Model Line for this Datasheet
Text Version of Document

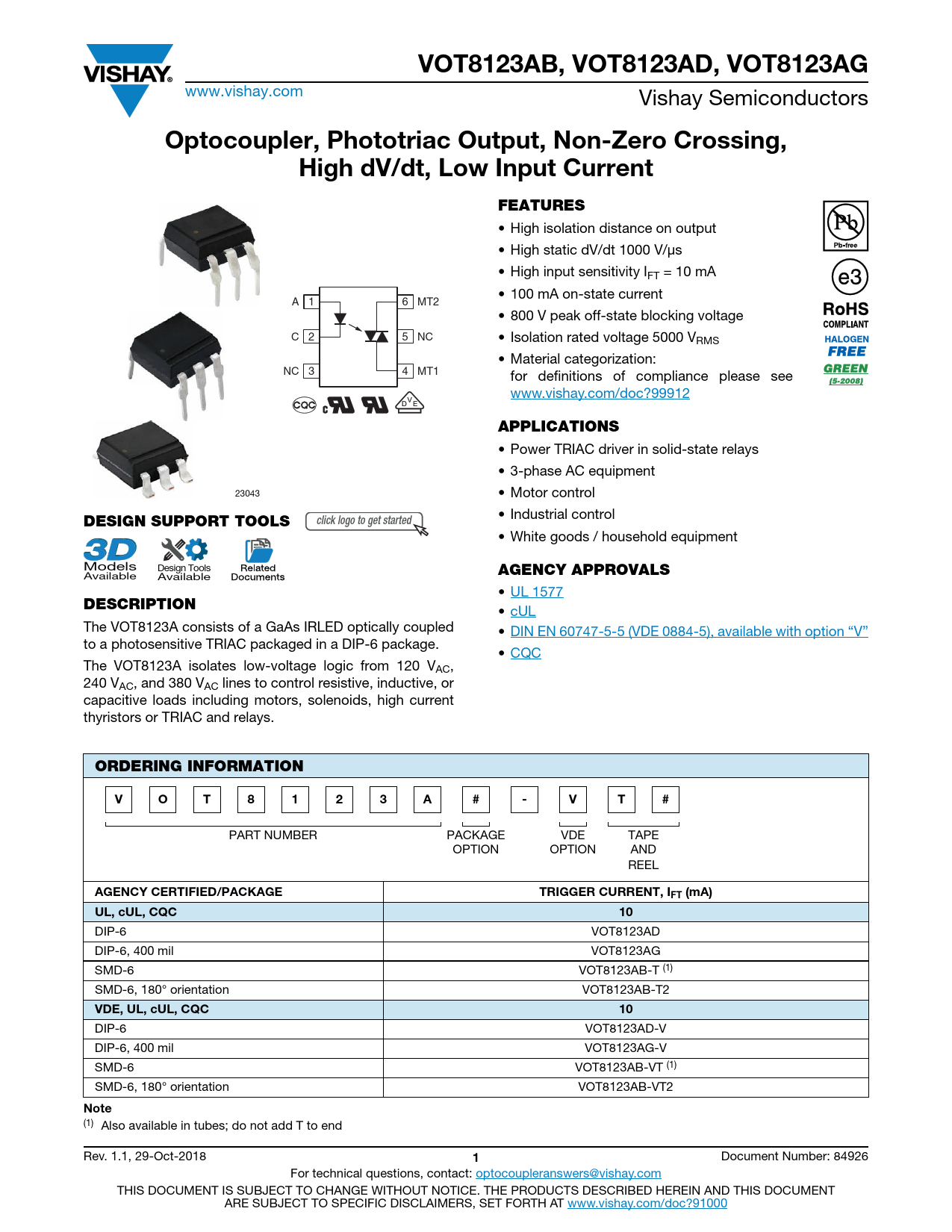

VOT8123AB, VOT8123AD, VOT8123AG
www.vishay.com Vishay Semiconductors
Optocoupler, Phototriac Output, Non-Zero Crossing, High dV/dt, Low Input Current FEATURES
• High isolation distance on output • High static dV/dt 1000 V/μs • High input sensitivity IFT = 10 mA • 100 mA on-state current A 1 6 MT2 • 800 V peak off-state blocking voltage C 2 5 NC • Isolation rated voltage 5000 VRMS • Material categorization: NC 3 4 MT1 for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Power TRIAC driver in solid-state relays • 3-phase AC equipment 23043 • Motor control
DESIGN SUPPORT TOOLS
• Industrial control click logo to get started • White goods / household equipment Models Design Tools Available Available
AGENCY APPROVALS
• UL 1577
DESCRIPTION
• cUL The VOT8123A consists of a GaAs IRLED optically coupled • DIN EN 60747-5-5 (VDE 0884-5), available with option “V” to a photosensitive TRIAC packaged in a DIP-6 package. • CQC The VOT8123A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.
ORDERING INFORMATION V O T 8 1 2 3 A # - V T #
PART NUMBER PACKAGE VDE TAPE OPTION OPTION AND REEL
AGENCY CERTIFIED/PACKAGE TRIGGER CURRENT, IFT (mA) UL, cUL, CQC 10
DIP-6 VOT8123AD DIP-6, 400 mil VOT8123AG SMD-6 VOT8123AB-T (1) SMD-6, 180° orientation VOT8123AB-T2
VDE, UL, cUL, CQC 10
DIP-6 VOT8123AD-V DIP-6, 400 mil VOT8123AG-V SMD-6 VOT8123AB-VT (1) SMD-6, 180° orientation VOT8123AB-VT2
Note
(1) Also available in tubes; do not add T to end Rev. 1.1, 29-Oct-2018
1
Document Number: 84926 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
Optocoupler, Phototriac Output, Non-Zero Crossing, High dV/dt, Low Input Current FEATURES
• High isolation distance on output • High static dV/dt 1000 V/μs • High input sensitivity IFT = 10 mA • 100 mA on-state current A 1 6 MT2 • 800 V peak off-state blocking voltage C 2 5 NC • Isolation rated voltage 5000 VRMS • Material categorization: NC 3 4 MT1 for definitions of compliance please see www.vishay.com/doc?99912
APPLICATIONS
• Power TRIAC driver in solid-state relays • 3-phase AC equipment 23043 • Motor control
DESIGN SUPPORT TOOLS
• Industrial control click logo to get started • White goods / household equipment Models Design Tools Available Available
AGENCY APPROVALS
• UL 1577
DESCRIPTION
• cUL The VOT8123A consists of a GaAs IRLED optically coupled • DIN EN 60747-5-5 (VDE 0884-5), available with option “V” to a photosensitive TRIAC packaged in a DIP-6 package. • CQC The VOT8123A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.
ORDERING INFORMATION V O T 8 1 2 3 A # - V T #
PART NUMBER PACKAGE VDE TAPE OPTION OPTION AND REEL
AGENCY CERTIFIED/PACKAGE TRIGGER CURRENT, IFT (mA) UL, cUL, CQC 10
DIP-6 VOT8123AD DIP-6, 400 mil VOT8123AG SMD-6 VOT8123AB-T (1) SMD-6, 180° orientation VOT8123AB-T2
VDE, UL, cUL, CQC 10
DIP-6 VOT8123AD-V DIP-6, 400 mil VOT8123AG-V SMD-6 VOT8123AB-VT (1) SMD-6, 180° orientation VOT8123AB-VT2
Note
(1) Also available in tubes; do not add T to end Rev. 1.1, 29-Oct-2018
1
Document Number: 84926 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
