Datasheet 2N5210 (NTE Electronics) - 2
| Manufacturer | NTE Electronics |
| Description | Silicon NPN Transistor Audio Amplifier, Switch TO−92 Type Package |
| Pages / Page | 2 / 2 — Electrical Characteristics (Cont’d):. Parameter. Symbol. Test Conditions. … |
| File Format / Size | PDF / 64 Kb |
| Document Language | English |
Electrical Characteristics (Cont’d):. Parameter. Symbol. Test Conditions. Min Typ Max. Unit. Small−Signal Characteristics
Model Line for this Datasheet
Text Version of Document

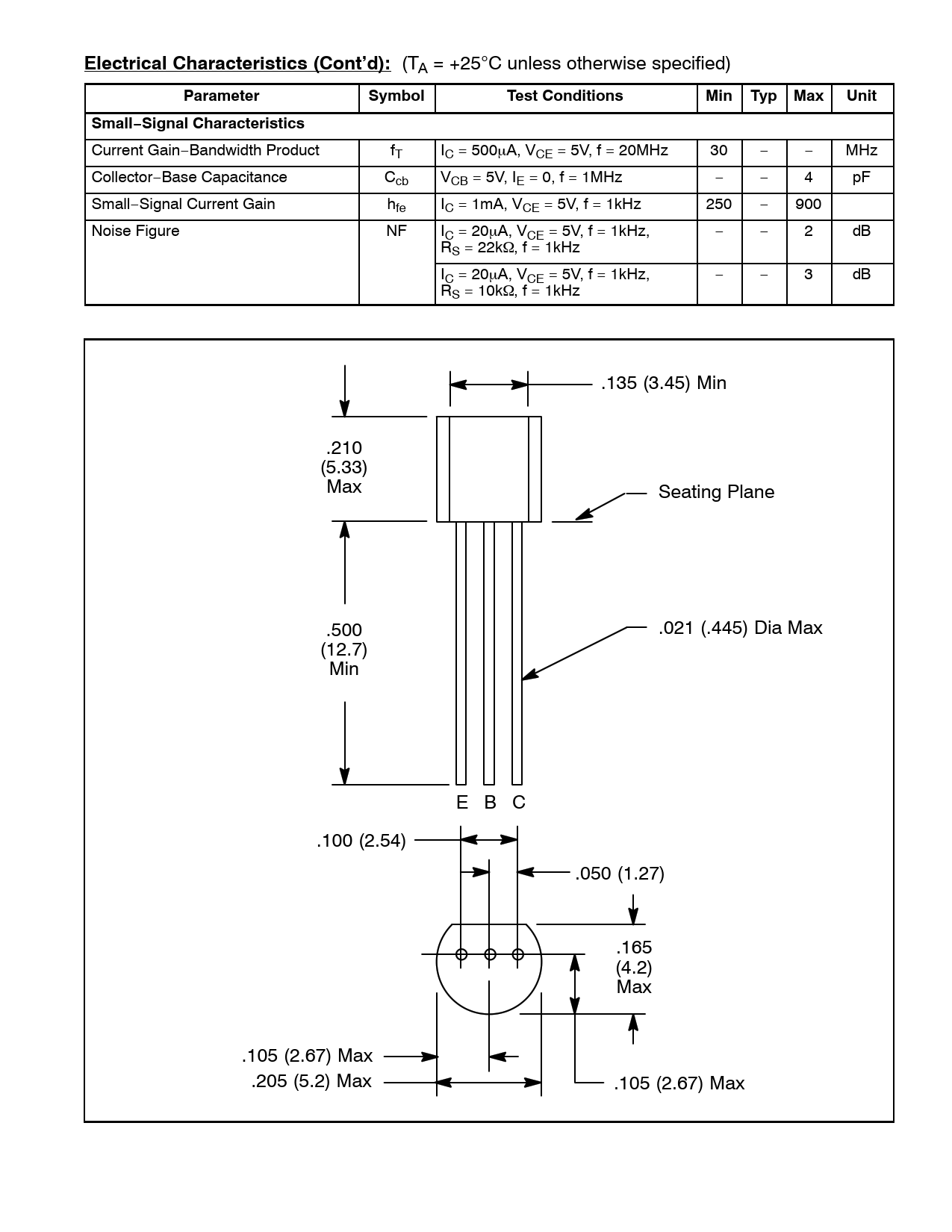

Electrical Characteristics (Cont’d):
(TA = +25C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit Small−Signal Characteristics
Current Gain−Bandwidth Product fT IC = 500A, VCE = 5V, f = 20MHz 30 − − MHz Collector−Base Capacitance Ccb VCB = 5V, IE = 0, f = 1MHz − − 4 pF Small−Signal Current Gain hfe IC = 1mA, VCE = 5V, f = 1kHz 250 − 900 Noise Figure NF IC = 20A, VCE = 5V, f = 1kHz, − − 2 dB RS = 22k, f = 1kHz IC = 20A, VCE = 5V, f = 1kHz, − − 3 dB RS = 10k, f = 1kHz .135 (3.45) Min .210 (5.33) Max Seating Plane .500 .021 (.445) Dia Max (12.7) Min E B C .100 (2.54) .050 (1.27) .165 (4.2) Max .105 (2.67) Max .205 (5.2) Max .105 (2.67) Max
(TA = +25C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit Small−Signal Characteristics
Current Gain−Bandwidth Product fT IC = 500A, VCE = 5V, f = 20MHz 30 − − MHz Collector−Base Capacitance Ccb VCB = 5V, IE = 0, f = 1MHz − − 4 pF Small−Signal Current Gain hfe IC = 1mA, VCE = 5V, f = 1kHz 250 − 900 Noise Figure NF IC = 20A, VCE = 5V, f = 1kHz, − − 2 dB RS = 22k, f = 1kHz IC = 20A, VCE = 5V, f = 1kHz, − − 3 dB RS = 10k, f = 1kHz .135 (3.45) Min .210 (5.33) Max Seating Plane .500 .021 (.445) Dia Max (12.7) Min E B C .100 (2.54) .050 (1.27) .165 (4.2) Max .105 (2.67) Max .205 (5.2) Max .105 (2.67) Max
