Datasheet BC547B (Multicomp)
| Manufacturer | Multicomp |
| Description | NPN general purpose transistor |
| Pages / Page | 4 / 1 — Features:. TO-92 Plastic Package. Dimensions. Minimum. Maximum. Pin … |
| Revision | 1.1 |
| File Format / Size | PDF / 186 Kb |
| Document Language | English |
Features:. TO-92 Plastic Package. Dimensions. Minimum. Maximum. Pin Configuration:
Model Line for this Datasheet
Text Version of Document

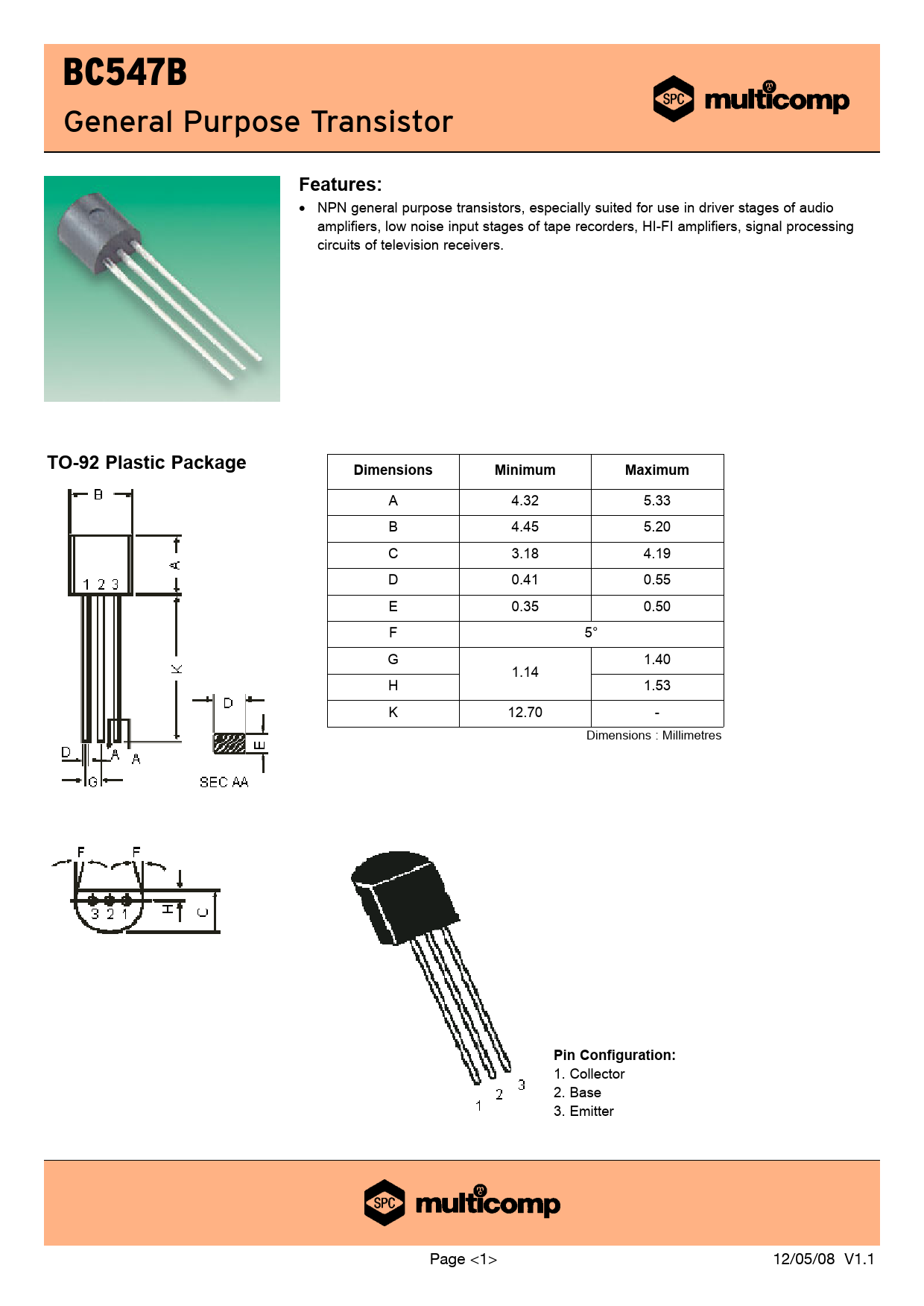

BC547B General Purpose Transistor
Features:
• NPN general purpose transistors, especially suited for use in driver stages of audio amplifiers, low noise input stages of tape recorders, HI-FI amplifiers, signal processing circuits of television receivers.
TO-92 Plastic Package Dimensions Minimum Maximum
A 4.32 5.33 B 4.45 5.20 C 3.18 4.19 D 0.41 0.55 E 0.35 0.50 F 5° G 1.40 1.14 H 1.53 K 12.70 - Dimensions : Millimetres
Pin Configuration:
1. Collector 2. Base 3. Emitter Page <1> 12/05/08 V1.1
Features:
• NPN general purpose transistors, especially suited for use in driver stages of audio amplifiers, low noise input stages of tape recorders, HI-FI amplifiers, signal processing circuits of television receivers.
TO-92 Plastic Package Dimensions Minimum Maximum
A 4.32 5.33 B 4.45 5.20 C 3.18 4.19 D 0.41 0.55 E 0.35 0.50 F 5° G 1.40 1.14 H 1.53 K 12.70 - Dimensions : Millimetres
Pin Configuration:
1. Collector 2. Base 3. Emitter Page <1> 12/05/08 V1.1
