Datasheet ADL5602 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 50 MHz TO 4.0 GHz RF/IF Gain Block |
| Pages / Page | 16 / 3 — Data Sheet. ADL5602. SPECIFICATIONS. Table 1. Parameter. Conditions. Min. … |
| Revision | A |
| File Format / Size | PDF / 310 Kb |
| Document Language | English |

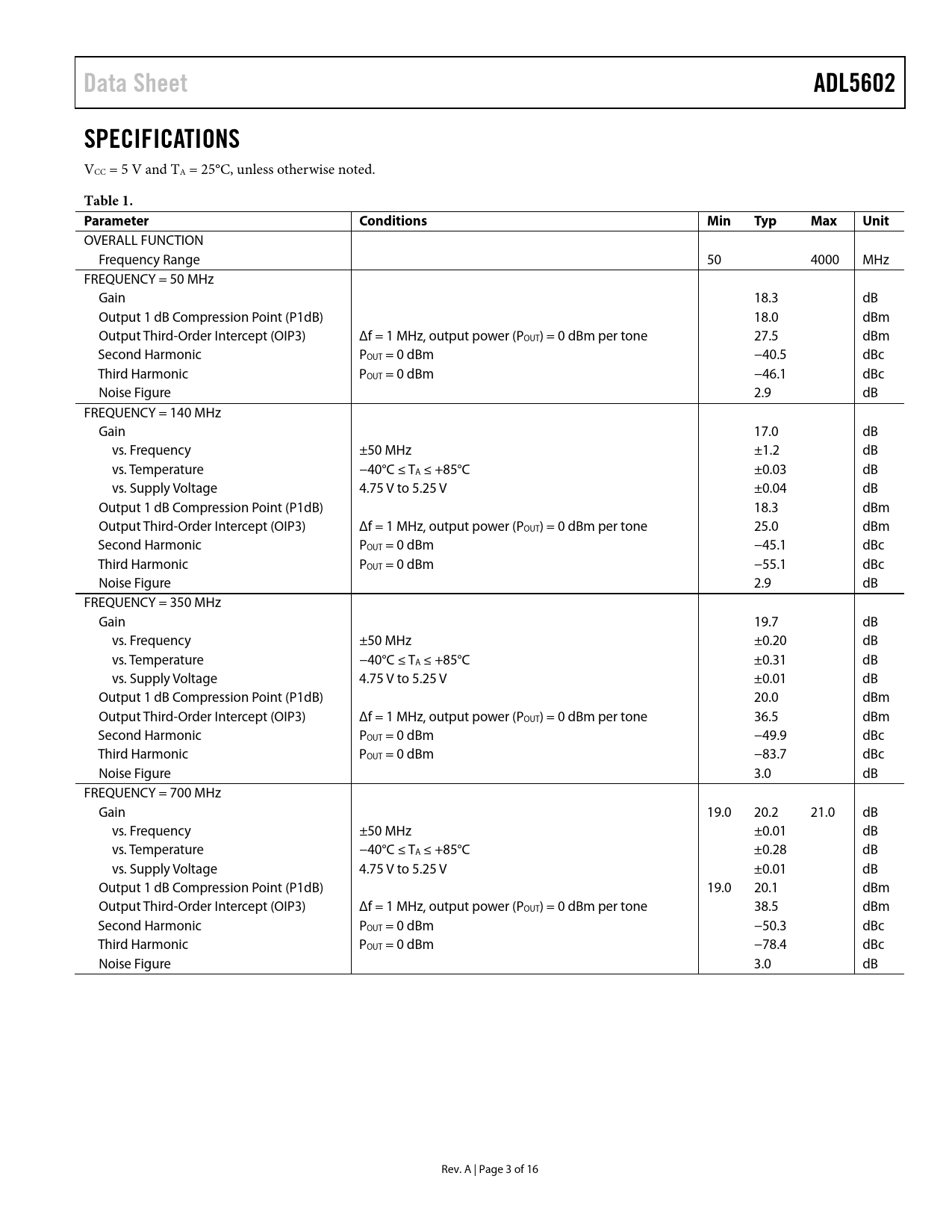

Data Sheet. ADL5602. SPECIFICATIONS. Table 1. Parameter. Conditions. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5602 SPECIFICATIONS
VCC = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION Frequency Range 50 4000 MHz FREQUENCY = 50 MHz Gain 18.3 dB Output 1 dB Compression Point (P1dB) 18.0 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 27.5 dBm Second Harmonic POUT = 0 dBm −40.5 dBc Third Harmonic POUT = 0 dBm −46.1 dBc Noise Figure 2.9 dB FREQUENCY = 140 MHz Gain 17.0 dB vs. Frequency ±50 MHz ±1.2 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.03 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.04 dB Output 1 dB Compression Point (P1dB) 18.3 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 25.0 dBm Second Harmonic POUT = 0 dBm −45.1 dBc Third Harmonic POUT = 0 dBm −55.1 dBc Noise Figure 2.9 dB FREQUENCY = 350 MHz Gain 19.7 dB vs. Frequency ±50 MHz ±0.20 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.31 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.01 dB Output 1 dB Compression Point (P1dB) 20.0 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 36.5 dBm Second Harmonic POUT = 0 dBm −49.9 dBc Third Harmonic POUT = 0 dBm −83.7 dBc Noise Figure 3.0 dB FREQUENCY = 700 MHz Gain 19.0 20.2 21.0 dB vs. Frequency ±50 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.28 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.01 dB Output 1 dB Compression Point (P1dB) 19.0 20.1 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 38.5 dBm Second Harmonic POUT = 0 dBm −50.3 dBc Third Harmonic POUT = 0 dBm −78.4 dBc Noise Figure 3.0 dB Rev. A | Page 3 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
