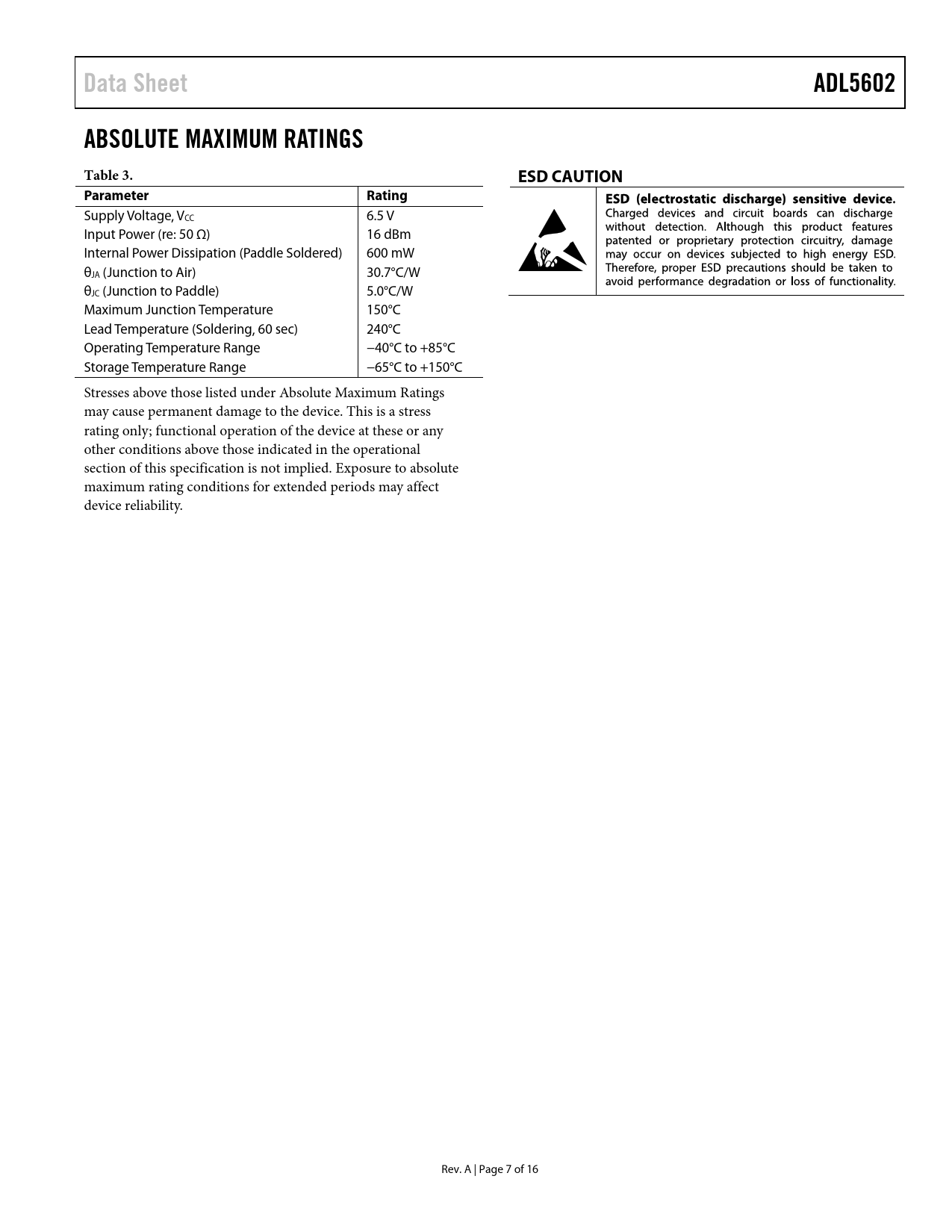

Data Sheet. ADL5602. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5602 ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION Parameter Rating
Supply Voltage, VCC 6.5 V Input Power (re: 50 Ω) 16 dBm Internal Power Dissipation (Paddle Soldered) 600 mW θ JA (Junction to Air) 30.7°C/W θ JC (Junction to Paddle) 5.0°C/W Maximum Junction Temperature 150°C Lead Temperature (Soldering, 60 sec) 240°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 7 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
