Datasheet HMC740ST89E (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | InGaP HBT Active Bias MMIC Amplifier, 0.05 - 3 GHz |
| Pages / Page | 8 / 6 — HMC740ST89E. InGaP HBT ACTIVE BIAS. MMIC AMPLIFIER, 0.05 – 3 GHz. … |
| File Format / Size | PDF / 675 Kb |
| Document Language | English |

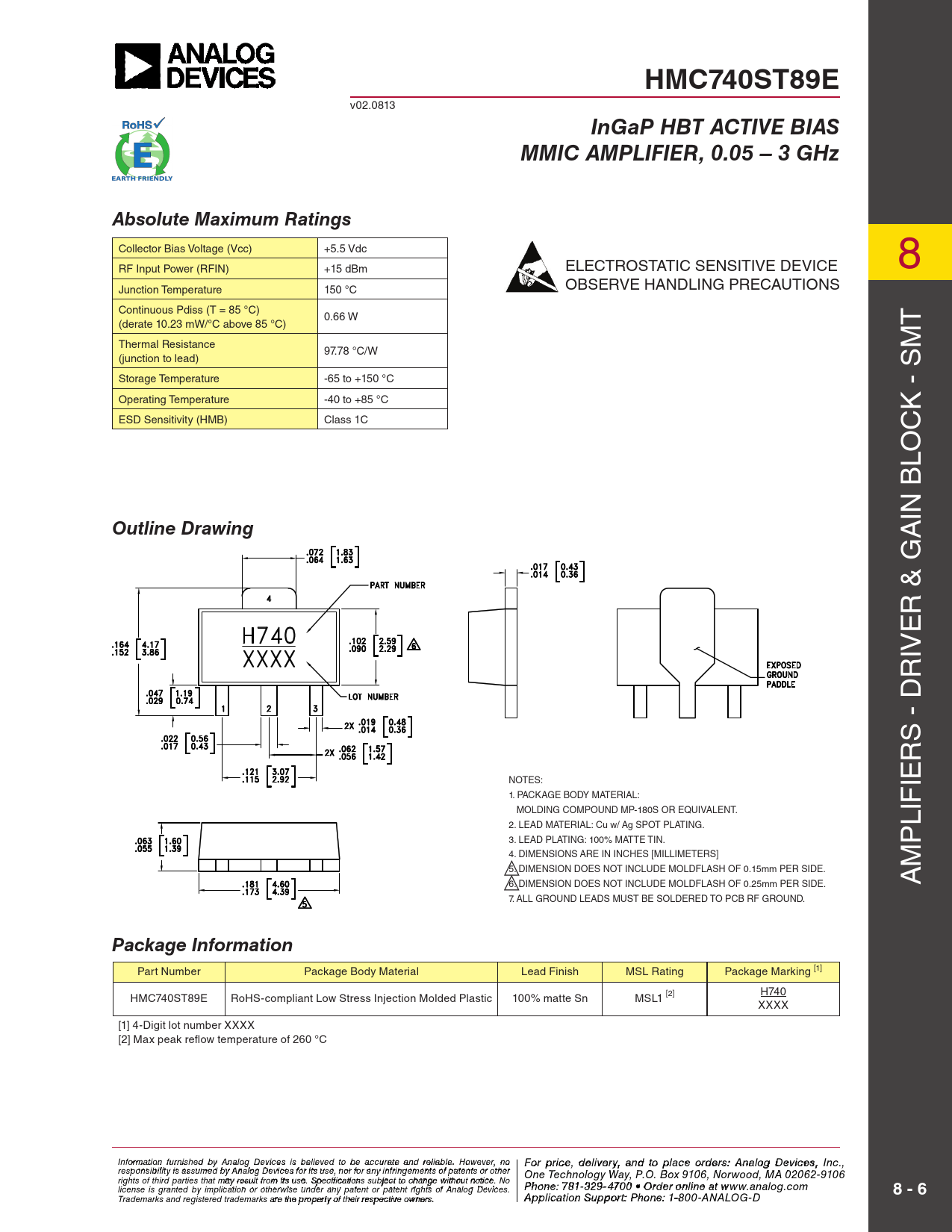

HMC740ST89E. InGaP HBT ACTIVE BIAS. MMIC AMPLIFIER, 0.05 – 3 GHz. Absolute Maximum Ratings. Outline Drawing. Package Information
Model Line for this Datasheet
Text Version of Document
HMC740ST89E
v02.0813
InGaP HBT ACTIVE BIAS MMIC AMPLIFIER, 0.05 – 3 GHz Absolute Maximum Ratings
Collector Bias Voltage (Vcc) +5.5 Vdc RF Input Power (RFIN) +15 dBm ELECTROSTATIC SENSITIVE DEVICE 8 Junction Temperature 150 °C OBSERVE HANDLING PRECAUTIONS Continuous Pdiss (T = 85 °C) 0.66 W (derate 10.23 mW/°C above 85 °C) T Thermal Resistance M 97.78 °C/W (junction to lead) Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C K - S ESD Sensitivity (HMB) Class 1C C LO IN B
Outline Drawing
A R & G E IV R S - D R NOTES: IE 1. PACKAGE BODY MATERIAL: MOLDING COMPOUND MP-180S OR EQUIVALENT. 2. LEAD MATERIAL: Cu w/ Ag SPOT PLATING. LIF 3. LEAD PLATING: 100% MATTE TIN. P 4. DIMENSIONS ARE IN INCHES [MILLIMETERS] 5. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE. M 6. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE. A 7. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [1] HMC740ST89E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 [2] H740 XXXX [1] 4-Digit lot number XXXX [2] Max peak reflow temperature of 260 °C Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e Anry a alog n D d t evic o p es is la be clie o eved rd to e b r e sa: H ccur iattte itae M nd reliic a r bl o e w . H a o v wee C ver, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
8 - 6
Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 o pplic r a atio pp n S s u @ p h por ittti : Pte ho.c n o e m : 1-800-ANALOG-D
