Datasheet ADL5542 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | 20 MHz to 6 GHz RF/IF Gain Block |
| Pages / Page | 13 / 1 — 20 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5542. FEATURES. … |
| Revision | C |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |

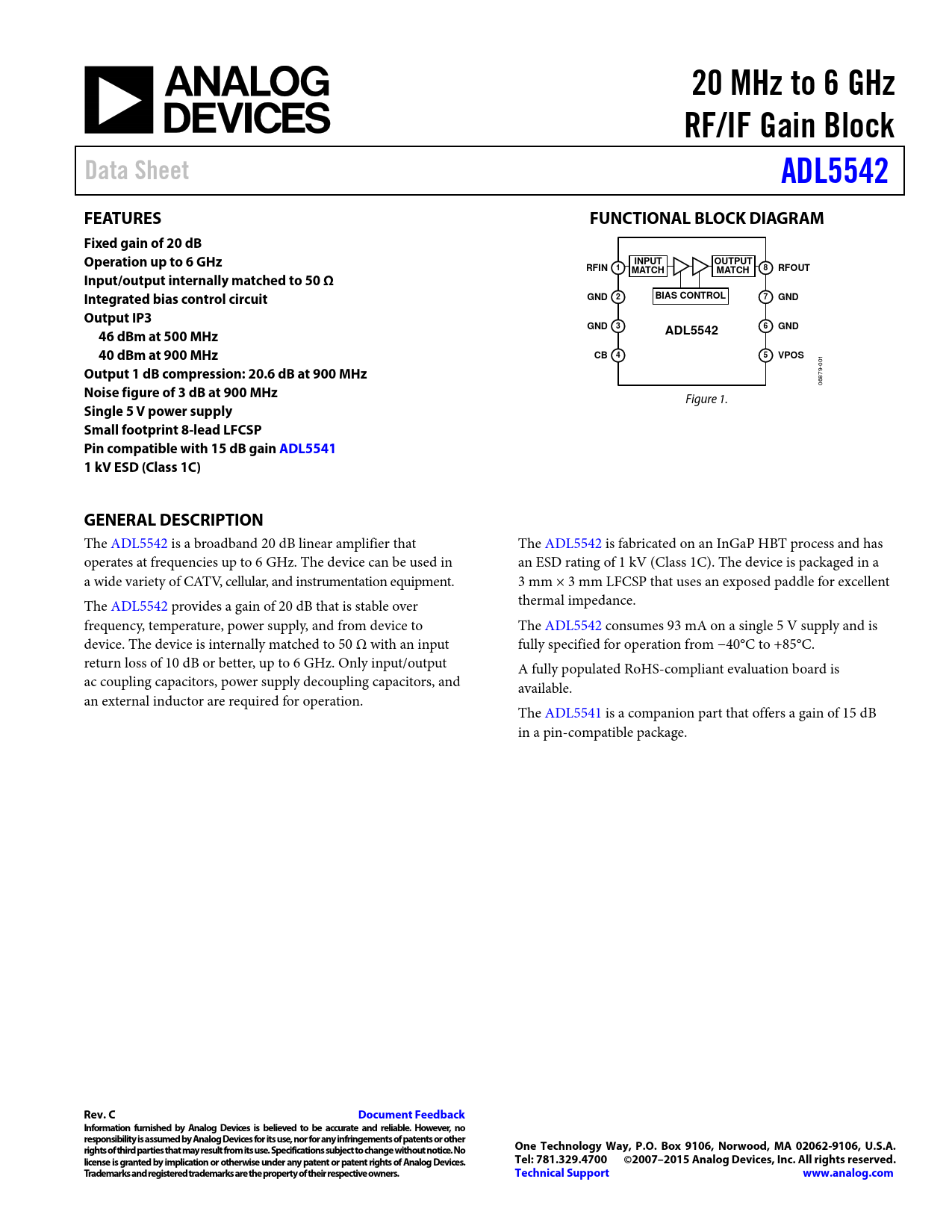

20 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5542. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
20 MHz to 6 GHz RF/IF Gain Block Data Sheet ADL5542 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 20 dB Operation up to 6 GHz INPUT OUTPUT RFIN 1 8 RFOUT MATCH MATCH Input/output internally matched to 50 Ω Integrated bias control circuit GND 2 BIAS CONTROL 7 GND Output IP3 GND 3 6 GND 46 dBm at 500 MHz ADL5542 40 dBm at 900 MHz CB 4 5 VPOS
001
Output 1 dB compression: 20.6 dB at 900 MHz
06879-
Noise figure of 3 dB at 900 MHz
Figure 1.
Single 5 V power supply Small footprint 8-lead LFCSP Pin compatible with 15 dB gain ADL5541 1 kV ESD (Class 1C) GENERAL DESCRIPTION
The ADL5542 is a broadband 20 dB linear amplifier that The ADL5542 is fabricated on an InGaP HBT process and has operates at frequencies up to 6 GHz. The device can be used in an ESD rating of 1 kV (Class 1C). The device is packaged in a a wide variety of CATV, cellular, and instrumentation equipment. 3 mm × 3 mm LFCSP that uses an exposed paddle for excel ent The ADL5542 provides a gain of 20 dB that is stable over thermal impedance. frequency, temperature, power supply, and from device to The ADL5542 consumes 93 mA on a single 5 V supply and is device. The device is internally matched to 50 Ω with an input ful y specified for operation from −40°C to +85°C. return loss of 10 dB or better, up to 6 GHz. Only input/output A fully populated RoHS-compliant evaluation board is ac coupling capacitors, power supply decoupling capacitors, and available. an external inductor are required for operation. The ADL5541 is a companion part that offers a gain of 15 dB in a pin-compatible package.
