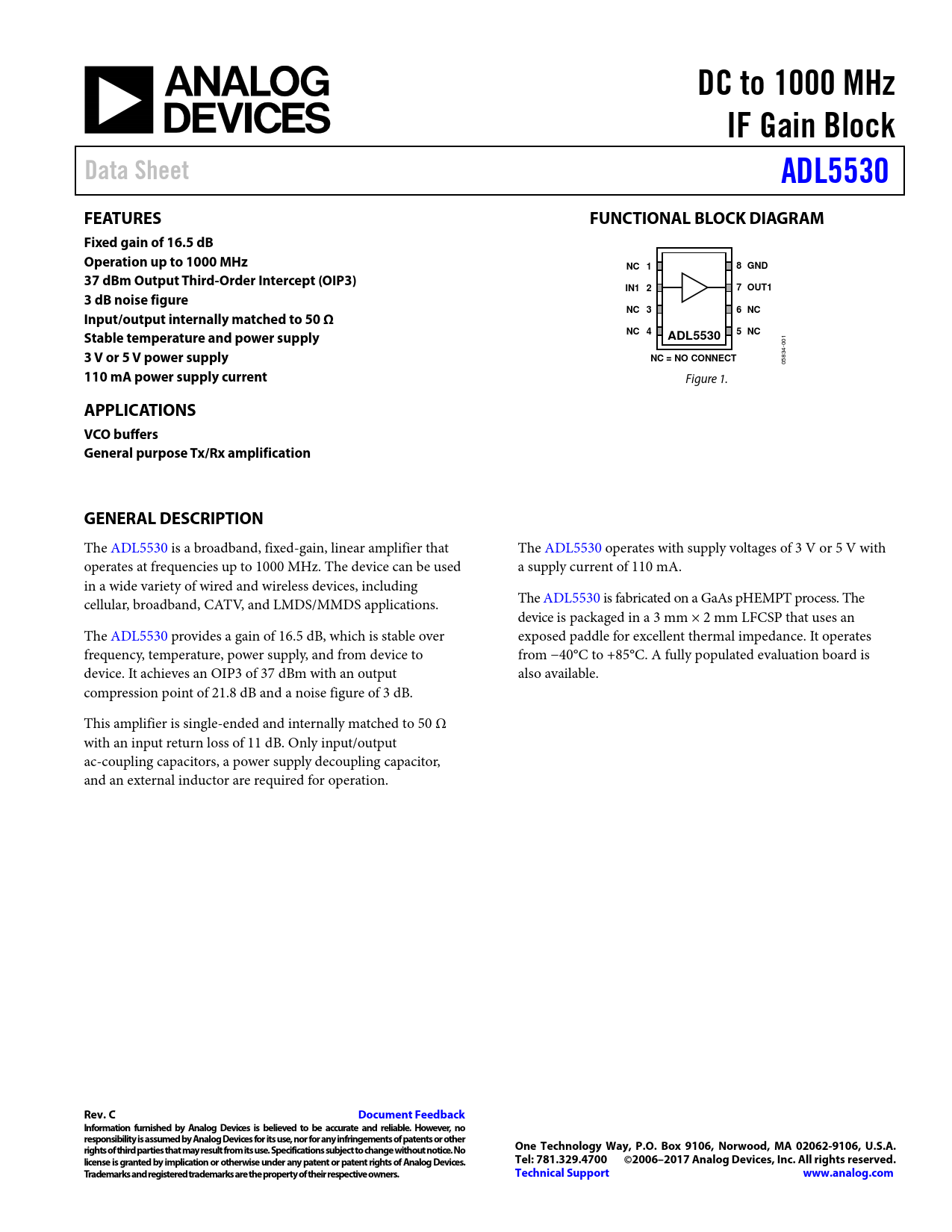

DC to 1000 MHz. IF Gain Block. Data Sheet. ADL5530. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
DC to 1000 MHz IF Gain Block Data Sheet ADL5530 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 16.5 dB Operation up to 1000 MHz NC 1 8 GND 37 dBm Output Third-Order Intercept (OIP3) IN1 2 7 OUT1 3 dB noise figure NC 3 6 NC Input/output internally matched to 50 Ω Stable temperature and power supply NC 4 5 NC ADL5530
001
3 V or 5 V power supply NC = NO CONNECT
05834-
110 mA power supply current
Figure 1.
APPLICATIONS VCO buffers General purpose Tx/Rx amplification GENERAL DESCRIPTION
The ADL5530 is a broadband, fixed-gain, linear amplifier that The ADL5530 operates with supply voltages of 3 V or 5 V with operates at frequencies up to 1000 MHz. The device can be used a supply current of 110 mA. in a wide variety of wired and wireless devices, including cellular, broadband, CATV, and LMDS/MMDS applications. The ADL5530 is fabricated on a GaAs pHEMPT process. The device is packaged in a 3 mm × 2 mm LFCSP that uses an The ADL5530 provides a gain of 16.5 dB, which is stable over exposed paddle for excellent thermal impedance. It operates frequency, temperature, power supply, and from device to from −40°C to +85°C. A ful y populated evaluation board is device. It achieves an OIP3 of 37 dBm with an output also available. compression point of 21.8 dB and a noise figure of 3 dB. This amplifier is single-ended and internal y matched to 50 Ω with an input return loss of 11 dB. Only input/output ac-coupling capacitors, a power supply decoupling capacitor, and an external inductor are required for operation.
