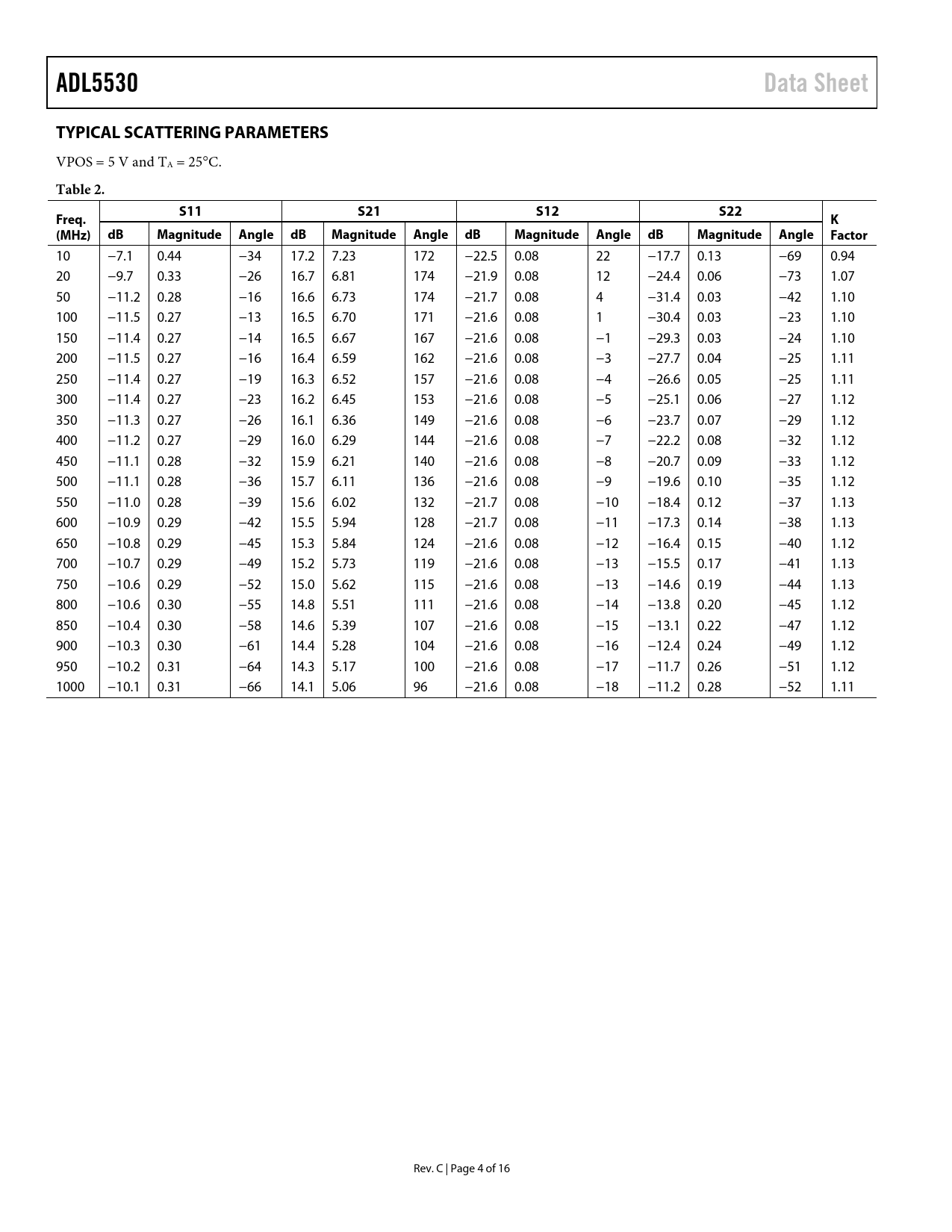

ADL5530. Data Sheet. TYPICAL SCATTERING PARAMETERS. Table 2. S11. S21. S12. S22. Freq. (MHz) dB. Magnitude Angle dB. Magnitude Angle Factor
Model Line for this Datasheet
Text Version of Document
ADL5530 Data Sheet TYPICAL SCATTERING PARAMETERS
VPOS = 5 V and TA = 25°C.
Table 2. S11 S21 S12 S22 Freq. K (MHz) dB Magnitude Angle dB Magnitude Angle dB Magnitude Angle dB Magnitude Angle Factor
10 −7.1 0.44 −34 17.2 7.23 172 −22.5 0.08 22 −17.7 0.13 −69 0.94 20 −9.7 0.33 −26 16.7 6.81 174 −21.9 0.08 12 −24.4 0.06 −73 1.07 50 −11.2 0.28 −16 16.6 6.73 174 −21.7 0.08 4 −31.4 0.03 −42 1.10 100 −11.5 0.27 −13 16.5 6.70 171 −21.6 0.08 1 −30.4 0.03 −23 1.10 150 −11.4 0.27 −14 16.5 6.67 167 −21.6 0.08 −1 −29.3 0.03 −24 1.10 200 −11.5 0.27 −16 16.4 6.59 162 −21.6 0.08 −3 −27.7 0.04 −25 1.11 250 −11.4 0.27 −19 16.3 6.52 157 −21.6 0.08 −4 −26.6 0.05 −25 1.11 300 −11.4 0.27 −23 16.2 6.45 153 −21.6 0.08 −5 −25.1 0.06 −27 1.12 350 −11.3 0.27 −26 16.1 6.36 149 −21.6 0.08 −6 −23.7 0.07 −29 1.12 400 −11.2 0.27 −29 16.0 6.29 144 −21.6 0.08 −7 −22.2 0.08 −32 1.12 450 −11.1 0.28 −32 15.9 6.21 140 −21.6 0.08 −8 −20.7 0.09 −33 1.12 500 −11.1 0.28 −36 15.7 6.11 136 −21.6 0.08 −9 −19.6 0.10 −35 1.12 550 −11.0 0.28 −39 15.6 6.02 132 −21.7 0.08 −10 −18.4 0.12 −37 1.13 600 −10.9 0.29 −42 15.5 5.94 128 −21.7 0.08 −11 −17.3 0.14 −38 1.13 650 −10.8 0.29 −45 15.3 5.84 124 −21.6 0.08 −12 −16.4 0.15 −40 1.12 700 −10.7 0.29 −49 15.2 5.73 119 −21.6 0.08 −13 −15.5 0.17 −41 1.13 750 −10.6 0.29 −52 15.0 5.62 115 −21.6 0.08 −13 −14.6 0.19 −44 1.13 800 −10.6 0.30 −55 14.8 5.51 111 −21.6 0.08 −14 −13.8 0.20 −45 1.12 850 −10.4 0.30 −58 14.6 5.39 107 −21.6 0.08 −15 −13.1 0.22 −47 1.12 900 −10.3 0.30 −61 14.4 5.28 104 −21.6 0.08 −16 −12.4 0.24 −49 1.12 950 −10.2 0.31 −64 14.3 5.17 100 −21.6 0.08 −17 −11.7 0.26 −51 1.12 1000 −10.1 0.31 −66 14.1 5.06 96 −21.6 0.08 −18 −11.2 0.28 −52 1.11 Rev. C | Page 4 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
