| Manufacturer | Analog Devices |
| Description | 1 MHz TO 2.7 GHz RF Gain Block |
| Pages / Page | 16 / 8 — AD8353. Data Sheet. P1dB AT –40°C. P1dB AT 3.3V. P1dB AT +85°C. (dBm). … |
| Revision | F |
| File Format / Size | PDF / 347 Kb |
| Document Language | English |
AD8353. Data Sheet. P1dB AT –40°C. P1dB AT 3.3V. P1dB AT +85°C. (dBm). 1dB AT 3.0V. 1dB AT 2.7V. P1dB AT +25°C. 1dB. 500. 1000. 1500. 2000. 2500
Model Line for this Datasheet
Text Version of Document
AD8353 Data Sheet 12 12 P1dB AT –40°C 10 10 P1dB AT 3.3V 8 8 P P P1dB AT +85°C (dBm) 6 1dB AT 3.0V 1dB AT 2.7V (dBm) 6 P1dB AT +25°C 1dB 1dB P P 4 4 2 2 0 0 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz)
02721-009
FREQUENCY (MHz)

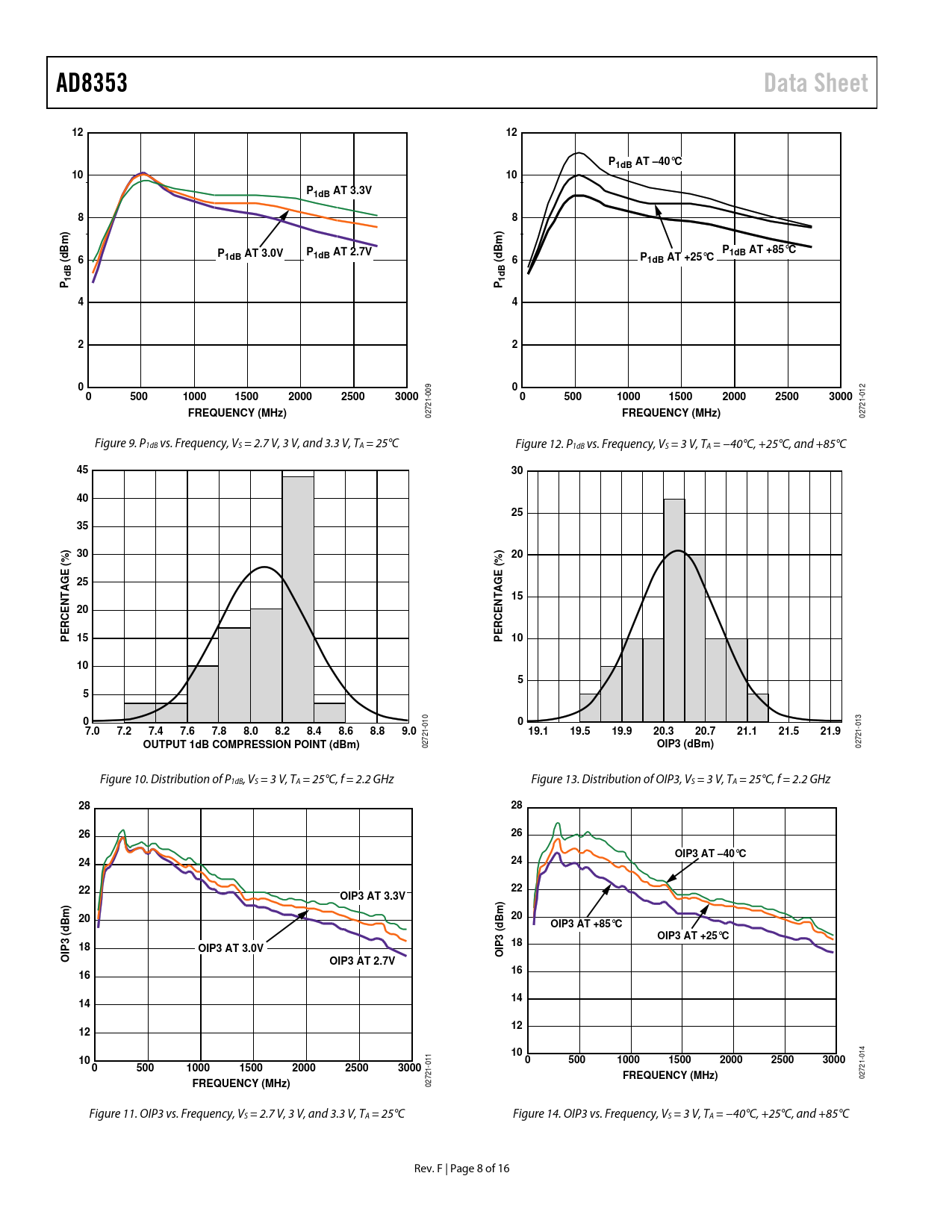

02721-012 Figure 9. P1dB vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C Figure 12. P1dB vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
45 30 40 25 35 30 20 25 15 20 PERCENTAGE (%) 15 PERCENTAGE (%) 10 10 5 5 0 0 7.0 7.2 7.4 7.6 7.8 8.0 8.2 8.4 8.6 8.8 9.0 19.1 19.5 19.9 20.3 20.7 21.1 21.5 21.9 OUTPUT 1dB COMPRESSION POINT (dBm)
02721-010
OIP3 (dBm)
02721-013 Figure 10. Distribution of P1dB, VS = 3 V, TA = 25°C, f = 2.2 GHz Figure 13. Distribution of OIP3, VS = 3 V, TA = 25°C, f = 2.2 GHz
28 28 26 26 OIP3 AT –40°C 24 24 22 22 OIP3 AT 3.3V 20 20 OIP3 AT +85°C OIP3 AT +25°C 18 18 OIP3 AT 3.0V OIP3 (dBm) OIP3 (dBm) OIP3 AT 2.7V 16 16 14 14 12 12 10 10 0 500 1000 1500 2000 2500 3000 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz)
02721-014
FREQUENCY (MHz)
02721-011 Figure 11. OIP3 vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C Figure 14. OIP3 vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C Rev. F | Page 8 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS APPLICATIONS INFORMATION LOW FREQUENCY APPLICATIONS BELOW 100 MHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
