Datasheet SM8S-Q (Bourns) - 2
| Manufacturer | Bourns |
| Description | 6600 W TVS Diodes - VWM 16~43 V - DO-218 Package - AEC-Q101 Compliant |
| Pages / Page | 8 / 2 — SM8S-Q Transient Voltage Suppressor Diode Series. Performance Graphs. … |
| File Format / Size | PDF / 523 Kb |
| Document Language | English |
SM8S-Q Transient Voltage Suppressor Diode Series. Performance Graphs. Load Dump Power Characteristics
Model Line for this Datasheet
- SM8S16A SM8S16A-Q SM8S16CA SM8S16CA-Q SM8S17A SM8S17A-Q SM8S17CA SM8S17CA-Q SM8S18A SM8S18A-Q SM8S18CA SM8S18CA-Q SM8S20A SM8S20A-Q SM8S20CA SM8S20CA-Q SM8S22A SM8S22A-Q SM8S22CA SM8S22CA-Q SM8S24A SM8S24A-Q SM8S24CA SM8S24CA-Q SM8S26A SM8S26A-Q SM8S26CA SM8S26CA-Q SM8S28A SM8S28A-Q SM8S28CA SM8S28CA-Q SM8S30A SM8S30A-Q SM8S30CA SM8S30CA-Q SM8S33A SM8S33A-Q SM8S33CA SM8S33CA-Q SM8S36A SM8S36A-Q SM8S36CA SM8S36CA-Q SM8S40A SM8S40A-Q SM8S40CA SM8S40CA-Q SM8S43A SM8S43A-Q SM8S43CA SM8S43CA-Q
Text Version of Document

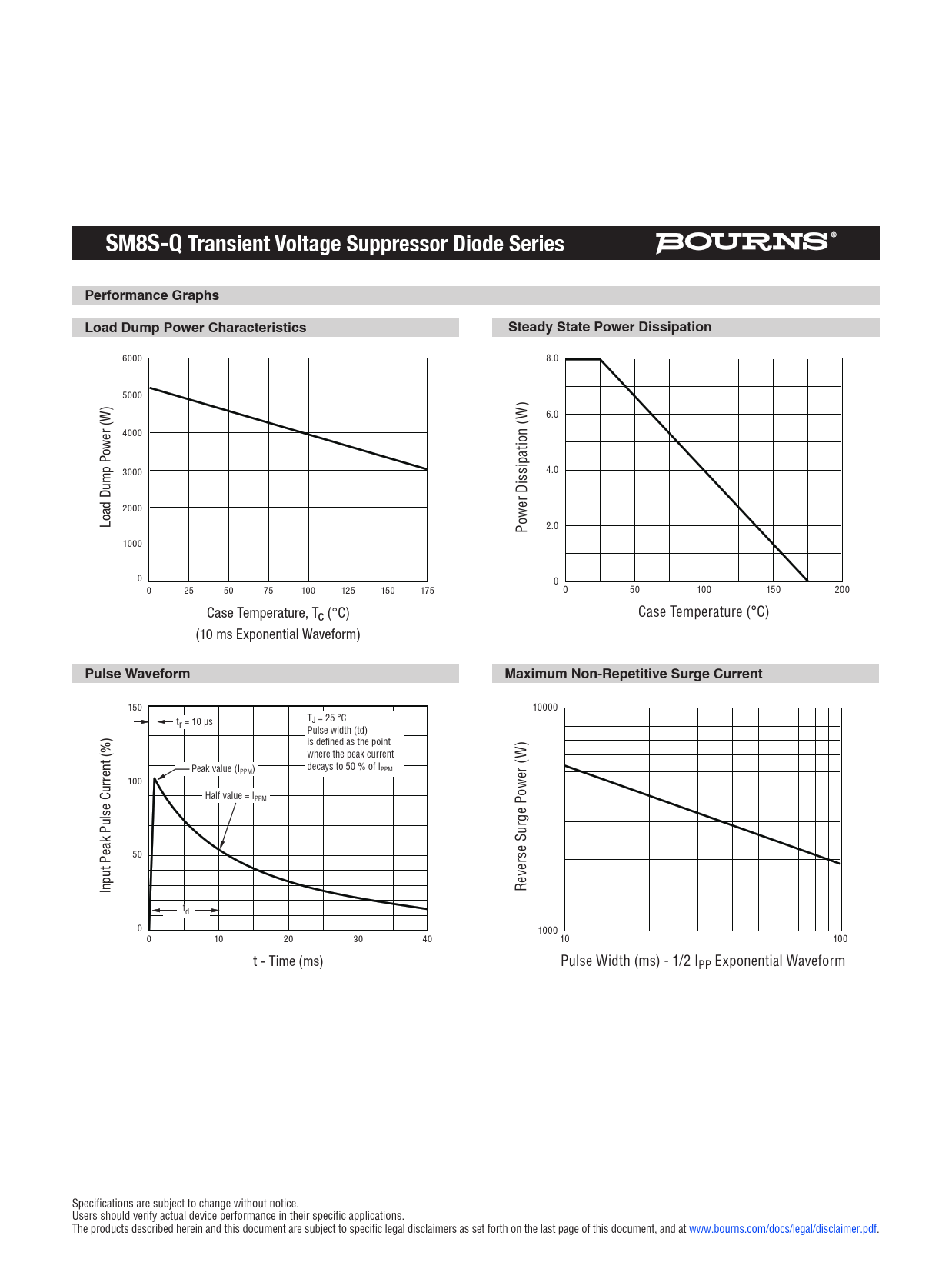

SM8S-Q Transient Voltage Suppressor Diode Series Performance Graphs Load Dump Power Characteristics Steady State Power Dissipation
6000 8.0 5000 ) W W 6.0 er ( 4000 ow p P 3000 4.0 um issipation ( er D 2000 Load D Pow 2.0 1000 0 0 0 25 50 75 100 125 150 175 0 50 100 150 200 Case Temperature, Tc (°C) Case Temperature (°C) (10 ms Exponential Waveform)
Pulse Waveform Maximum Non-Repetitive Surge Current
150 10000 t T r = 10 µs J = 25 °C ) Pulse width (td) % is defined as the point ) where the peak current W Peak value (I decays to 50 % of I PPM) PPM er ( urrent ( 100 Half value = I ow PPM ulse C urge P eak P 50 ut P everse S Inp R td 0 1000 0 10 20 30 40 10 100 t - Time (ms) Pulse Width (ms) - 1/2 IPP Exponential Waveform Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
