Datasheet SM8S-Q (Bourns) - 7
| Manufacturer | Bourns |
| Description | 6600 W TVS Diodes - VWM 16~43 V - DO-218 Package - AEC-Q101 Compliant |
| Pages / Page | 8 / 7 — CDDFN5-0504N. SM8S-Q T. - TVS/Steering. ransient V. Diode Array. oltage … |
| File Format / Size | PDF / 523 Kb |
| Document Language | English |
CDDFN5-0504N. SM8S-Q T. - TVS/Steering. ransient V. Diode Array. oltage Suppressor Diode Series. Packaging Information. Item. Symbol
Model Line for this Datasheet
- SM8S16A SM8S16A-Q SM8S16CA SM8S16CA-Q SM8S17A SM8S17A-Q SM8S17CA SM8S17CA-Q SM8S18A SM8S18A-Q SM8S18CA SM8S18CA-Q SM8S20A SM8S20A-Q SM8S20CA SM8S20CA-Q SM8S22A SM8S22A-Q SM8S22CA SM8S22CA-Q SM8S24A SM8S24A-Q SM8S24CA SM8S24CA-Q SM8S26A SM8S26A-Q SM8S26CA SM8S26CA-Q SM8S28A SM8S28A-Q SM8S28CA SM8S28CA-Q SM8S30A SM8S30A-Q SM8S30CA SM8S30CA-Q SM8S33A SM8S33A-Q SM8S33CA SM8S33CA-Q SM8S36A SM8S36A-Q SM8S36CA SM8S36CA-Q SM8S40A SM8S40A-Q SM8S40CA SM8S40CA-Q SM8S43A SM8S43A-Q SM8S43CA SM8S43CA-Q
Text Version of Document
CDDFN5-0504N SM8S-Q T - TVS/Steering ransient V Diode Array oltage Suppressor Diode Series Packaging Information

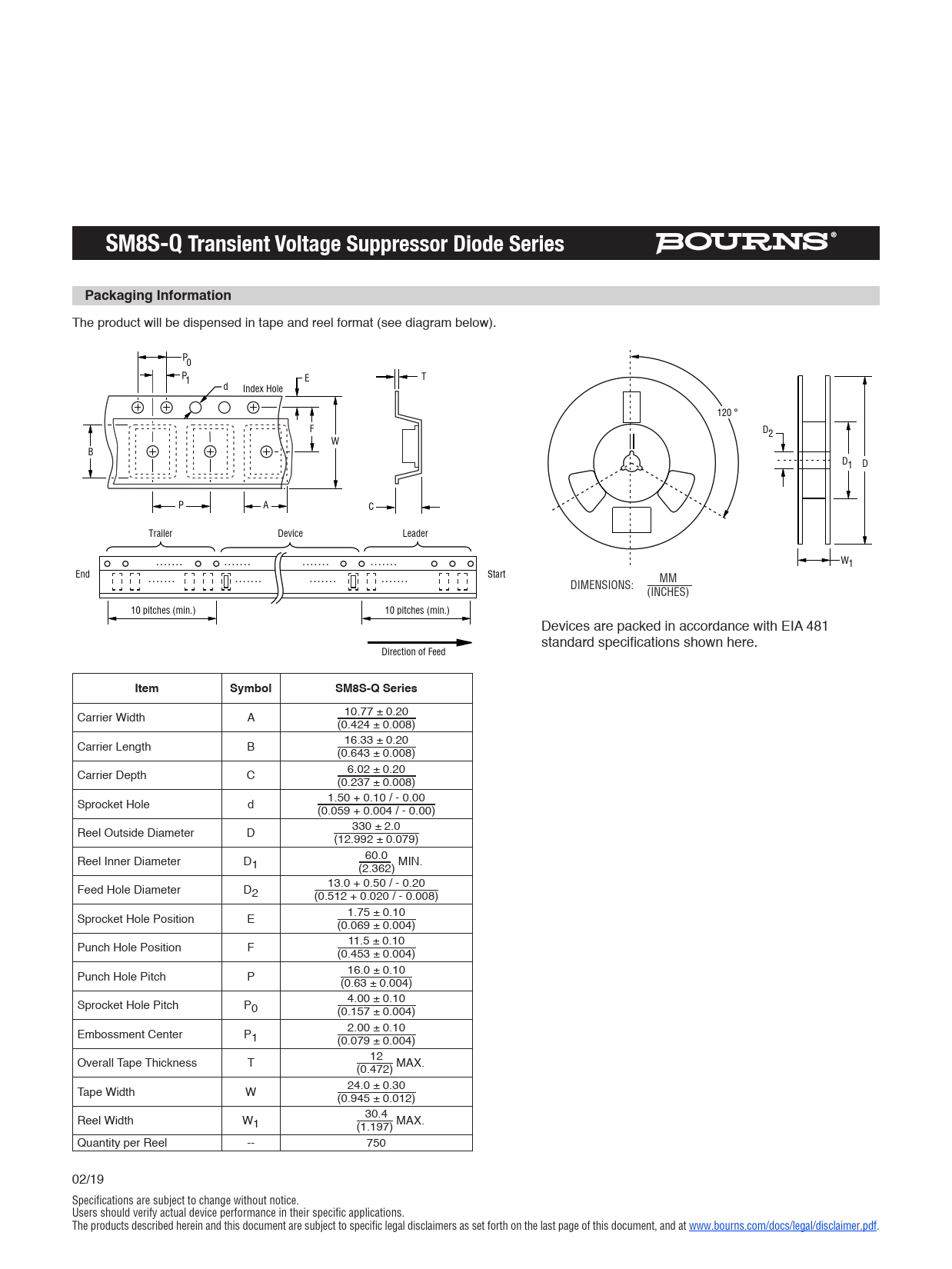

The product will be dispensed in tape and reel format (see diagram below). P0 P E T 1 d Index Hole 120 ° F D2 W B D1 D P A C Trailer Device Leader ... ... ... ... W1 End ... ... ... ... Start DIMENSIONS: MM (INCHES) 10 pitches (min.) 10 pitches (min.) Devices are packed in accordance with EIA 481 standard specifications shown here. Direction of Feed
Item Symbol SM8S-Q Series
Carrier Width A 10.77 ± 0.20 (0.424 ± 0.008) Carrier Length B 16.33 ± 0.20 (0.643 ± 0.008) Carrier Depth C 6.02 ± 0.20 (0.237 ± 0.008) Sprocket Hole d 1.50 + 0.10 / - 0.00 (0.059 + 0.004 / - 0.00) Reel Outside Diameter D 330 ± 2.0 (12.992 ± 0.079) Reel Inner Diameter D 60.0 1 (2.362) MIN. Feed Hole Diameter D 13.0 + 0.50 / - 0.20 2 (0.512 + 0.020 / - 0.008) Sprocket Hole Position E 1.75 ± 0.10 (0.069 ± 0.004) Punch Hole Position F 11.5 ± 0.10 (0.453 ± 0.004) Punch Hole Pitch P 16.0 ± 0.10 (0.63 ± 0.004) Sprocket Hole Pitch P 4.00 ± 0.10 0 (0.157 ± 0.004) Embossment Center P 2.00 ± 0.10 1 (0.079 ± 0.004) Overall Tape Thickness T 12 (0.472) MAX. Tape Width W 24.0 ± 0.30 (0.945 ± 0.012) Reel Width W 30.4 1 (1.197) MAX. Quantity per Reel -- 750 02/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
