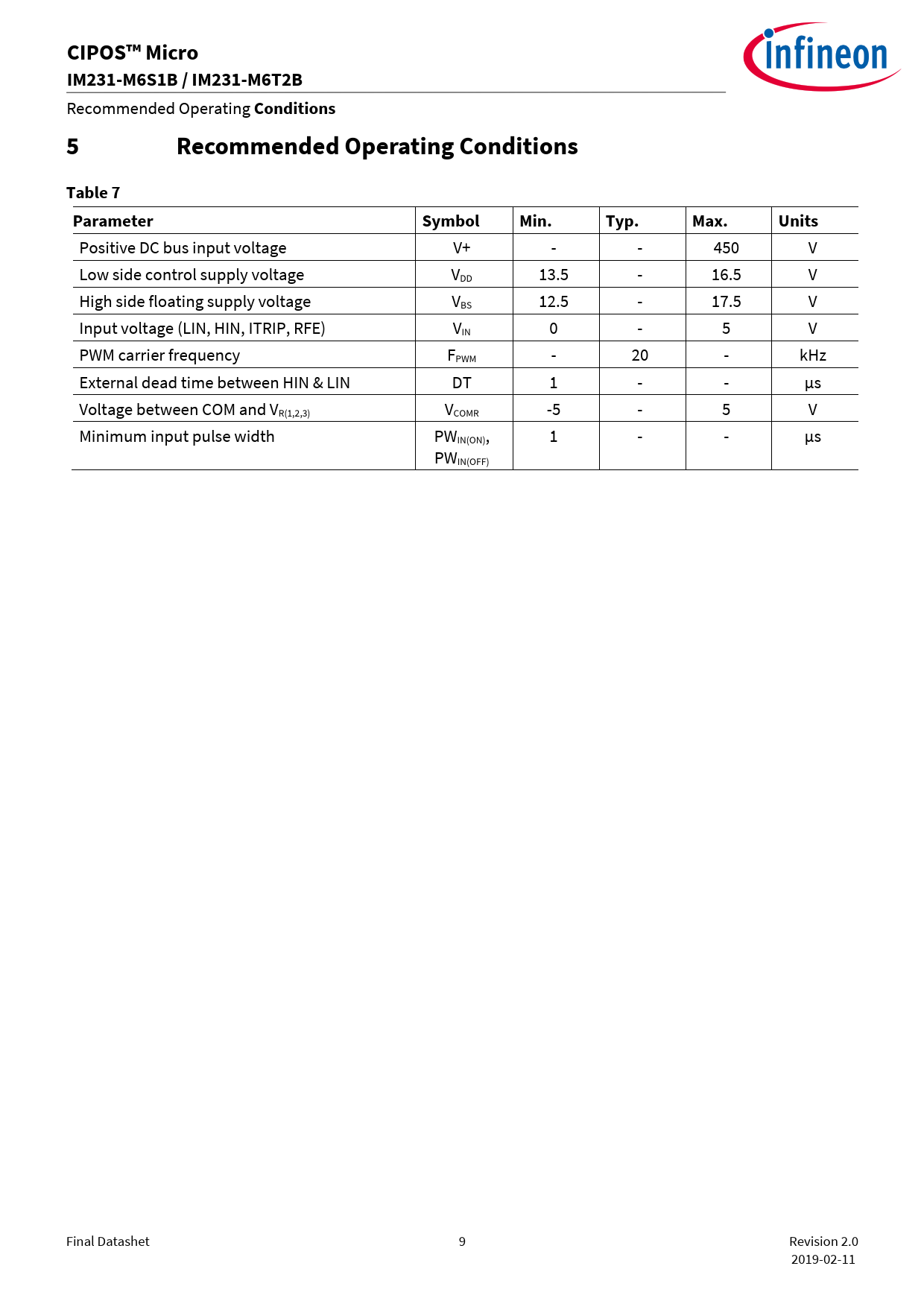

CIPOS™ Micro. IM231-M6S1B / IM231-M6T2B. Conditions 5. Recommended Operating Conditions. Table 7. Parameter. Symbol. Min. Typ. Max. Units
Model Line for this Datasheet
Text Version of Document
CIPOS™ Micro IM231-M6S1B / IM231-M6T2B
Recommended Operating
Conditions 5 Recommended Operating Conditions Table 7 Parameter Symbol Min. Typ. Max. Units
Positive DC bus input voltage V+ - - 450 V Low side control supply voltage VDD 13.5 - 16.5 V High side floating supply voltage VBS 12.5 - 17.5 V Input voltage (LIN, HIN, ITRIP, RFE) VIN 0 - 5 V PWM carrier frequency FPWM - 20 - kHz External dead time between HIN & LIN DT 1 - - µs Voltage between COM and VR(1,2,3) VCOMR -5 - 5 V Minimum input pulse width PWIN(ON), 1 - - µs PWIN(OFF) Final Datashet 9 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
Recommended Operating
Conditions 5 Recommended Operating Conditions Table 7 Parameter Symbol Min. Typ. Max. Units
Positive DC bus input voltage V+ - - 450 V Low side control supply voltage VDD 13.5 - 16.5 V High side floating supply voltage VBS 12.5 - 17.5 V Input voltage (LIN, HIN, ITRIP, RFE) VIN 0 - 5 V PWM carrier frequency FPWM - 20 - kHz External dead time between HIN & LIN DT 1 - - µs Voltage between COM and VR(1,2,3) VCOMR -5 - 5 V Minimum input pulse width PWIN(ON), 1 - - µs PWIN(OFF) Final Datashet 9 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
