BZX84 series Voltage regulator diodes. Rev. 6 — 6 March 2014. Product data sheet. 1. Product. profile. 1.1 General description
Model Line for this Datasheet
- BZX84-A10,215 BZX84-A11,215 BZX84-A12,215 BZX84-A13,215 BZX84-A15,215 BZX84-A16,215 BZX84-A20,215 BZX84-A22,215 BZX84-A22,235 BZX84-A24,215 BZX84-A27,215 BZX84-A2V4,215 BZX84-A2V4,235 BZX84-A2V7,215 BZX84-A30,215 BZX84-A33,215 BZX84-A36,215 BZX84-A39,215 BZX84-A3V0,215 BZX84-A3V3,215 BZX84-A3V6,215 BZX84-A3V9,215 BZX84-A43,215 BZX84-A4V3,215 BZX84-A4V7,215 BZX84-A51,215 BZX84-A5V1,215 BZX84-A5V1,235 BZX84-A5V6,215 BZX84-A6V2,215 BZX84-A6V8,215 BZX84-A75,215 BZX84-A7V5,215 BZX84-A8V2,215 BZX84-A9V1,215 BZX84-B10,215 BZX84-B10,235 BZX84-B11,215 BZX84-B11,235 BZX84-B12,215 BZX84-B13,215 BZX84-B13,235 BZX84-B15,215 BZX84-B15,235 BZX84-B16,215 BZX84-B18,215 BZX84-B18,235 BZX84-B20,215 BZX84-B20,235 BZX84-B22,215 BZX84-B22,235 BZX84-B24,215 BZX84-B27,215 BZX84-B27,235 BZX84-B2V4,215 BZX84-B2V7,215 BZX84-B30,215 BZX84-B33,215 BZX84-B36,215 BZX84-B39,215 BZX84-B3V0,215 BZX84-B3V0,235 BZX84-B3V3,215 BZX84-B3V6,215 BZX84-B3V6VL BZX84-B3V9,215 BZX84-B43,215 BZX84-B47,215 BZX84-B4V3,215 BZX84-B4V3,235 BZX84-B4V7,215 BZX84-B51,215 BZX84-B56,215 BZX84-B5V1,215 BZX84-B5V1,235 BZX84-B5V6,215 BZX84-B5V6,235 BZX84-B62,215 BZX84-B68,215 BZX84-B6V2,215 BZX84-B6V8,215 BZX84-B75,215 BZX84-B7V5,215 BZX84-B7V5,235 BZX84-B8V2,215 BZX84-B8V2,235 BZX84-B9V1,215 BZX84-C10,215 BZX84-C10,235 BZX84-C11,215 BZX84-C11,235 BZX84-C12,215 BZX84-C12,235 BZX84-C13,215 BZX84-C13,235 BZX84-C15,215 BZX84-C15,235 BZX84-C15/CH,235 BZX84-C15/DG,215 BZX84-C16,215 BZX84-C16,235 BZX84-C18,215 BZX84-C18,235 BZX84-C20,215 BZX84-C20,235 BZX84-C22,215 BZX84-C22,235 BZX84-C24,215 BZX84-C24,235 BZX84-C27,215 BZX84-C27,235 BZX84-C2V4,215 BZX84-C2V4,235 BZX84-C2V7,215 BZX84-C2V7,235 BZX84-C30,215 BZX84-C30,235 BZX84-C33,215 BZX84-C33,235 BZX84-C36,215 BZX84-C36,235 BZX84-C39,215 BZX84-C39,235 BZX84-C3V0,215 BZX84-C3V0,235 BZX84-C3V3,215 BZX84-C3V3,235 BZX84-C3V6,215 BZX84-C3V6,235 BZX84-C3V9,215 BZX84-C3V9,235 BZX84-C43,215 BZX84-C47,215 BZX84-C47,235 BZX84-C4V3,215 BZX84-C4V3,235 BZX84-C4V7,215 BZX84-C4V7,235 BZX84-C51,215 BZX84-C51,235 BZX84-C56,215 BZX84-C5V1,215 BZX84-C5V1,235 BZX84-C5V1/DG,215 BZX84-C5V6,215 BZX84-C5V6,235 BZX84-C5V6/CH,235 BZX84-C5V6/DG,215 BZX84-C62,215 BZX84-C62,235 BZX84-C68,215 BZX84-C68,235 BZX84-C6V2,215 BZX84-C6V2,235 BZX84-C6V8,215 BZX84-C6V8,235 BZX84-C75,215 BZX84-C75,235 BZX84-C7V5,215 BZX84-C7V5,235 BZX84-C8V2,215 BZX84-C8V2,235 BZX84-C9V1,215 BZX84-C9V1,235
Text Version of Document
link to page 1 link to page 1

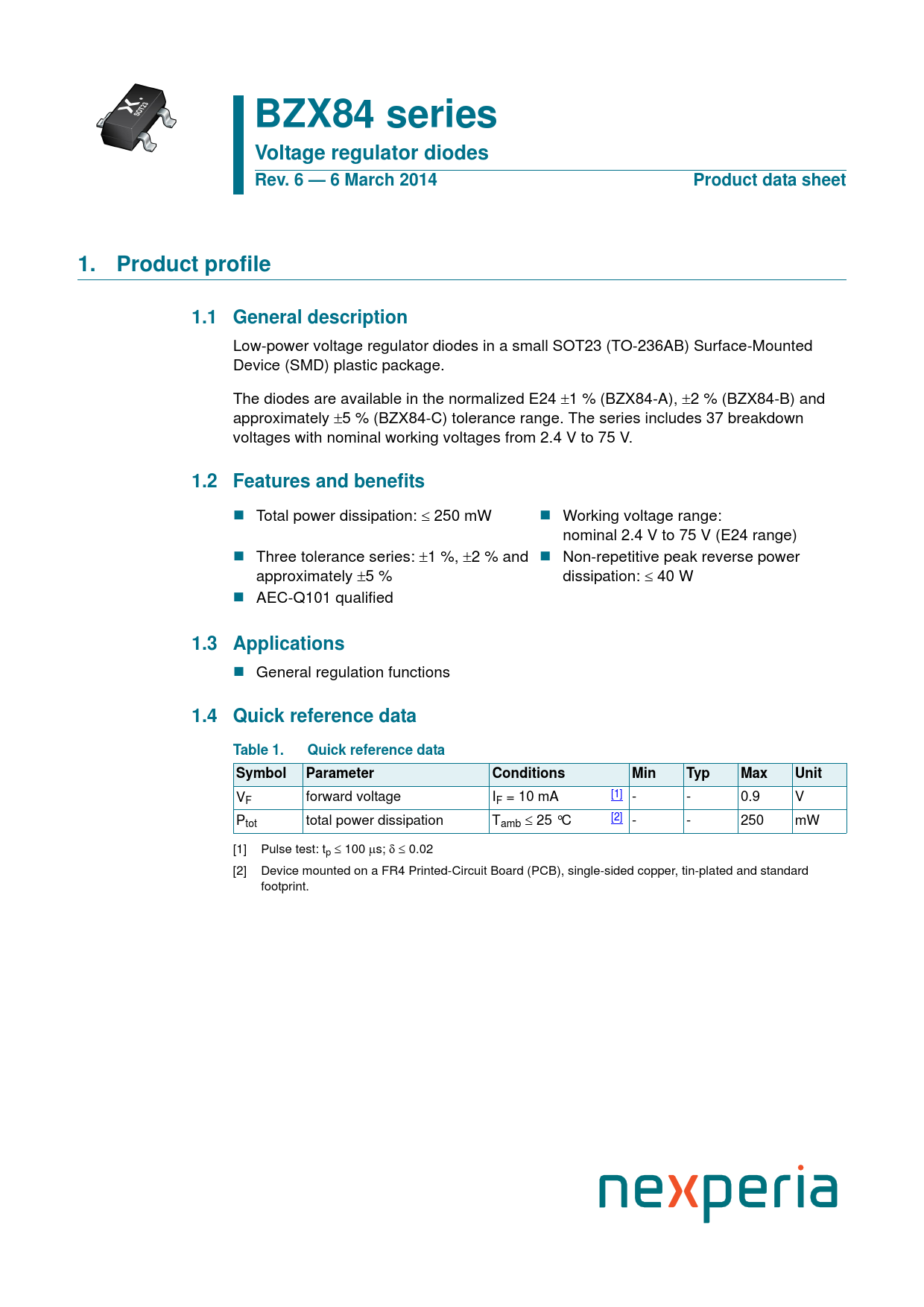

BZX84 series Voltage regulator diodes Rev. 6 — 6 March 2014 Product data sheet 1. Product profile 1.1 General description
Low-power voltage regulator diodes in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 1 % (BZX84-A), 2 % (BZX84-B) and approximately 5 % (BZX84-C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
1.2 Features and benefits
Total power dissipation: 250 mW Working voltage range: nominal 2.4 V to 75 V (E24 range) Three tolerance series: 1 %, 2 % and Non-repetitive peak reverse power approximately 5 % dissipation: 40 W AEC-Q101 qualified
1.3 Applications
General regulation functions
1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VF forward voltage IF = 10 mA [1] - - 0.9 V P tot total power dissipation Tamb 25 °C [2] - - 250 mW [1] Pulse test: t p 100 s; 0.02 [2] Device mounted on a FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
