Datasheet UT69RH051 (Aeroflex) - 4
| Manufacturer | Aeroflex |
| Description | Radiation-Hardened MicroController |
| Pages / Page | 20 / 4 — (T2). P1.0. VDD. (T2EX). P1.1. P0.0. (AD0). (ECI). P1.2. P0.1. (AD1). … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |
(T2). P1.0. VDD. (T2EX). P1.1. P0.0. (AD0). (ECI). P1.2. P0.1. (AD1). (CEX0). P1.3. P0.2. (AD2). (CEX1). P1.4. P0.3. (AD3). (CEX2). P1.5. P0.4. (AD4). (CEX3). P1.6. P0.5
Model Line for this Datasheet
- 5962F9563801QQA 5962F9563801QQC 5962F9563801QQX 5962F9563801QYA 5962F9563801QYC 5962F9563801QYX 5962F9563801VQA 5962F9563801VQC 5962F9563801VQX 5962F9563801VYA 5962F9563801VYC 5962F9563801VYX 5962G9563801QQA 5962G9563801QQC 5962G9563801QQX 5962G9563801QYA 5962G9563801QYC 5962G9563801QYX 5962G9563801VQA 5962G9563801VQC 5962G9563801VQX 5962G9563801VYA 5962G9563801VYC 5962G9563801VYX 5962H9563801QQA 5962H9563801QQC 5962H9563801QQX 5962H9563801QYA 5962H9563801QYC 5962H9563801QYX 5962H9563801VQA 5962H9563801VQC 5962H9563801VQX 5962H9563801VYA 5962H9563801VYC 5962H9563801VYX 5962R9563801QQA 5962R9563801QQC 5962R9563801QQX 5962R9563801QYA 5962R9563801QYC 5962R9563801QYX 5962R9563801VQA 5962R9563801VQC 5962R9563801VQX 5962R9563801VYA 5962R9563801VYC 5962R9563801VYX UT69RH051P-CA UT69RH051P-CC UT69RH051P-CX UT69RH051W-PA UT69RH051W-PC UT69RH051W-PX
Text Version of Document

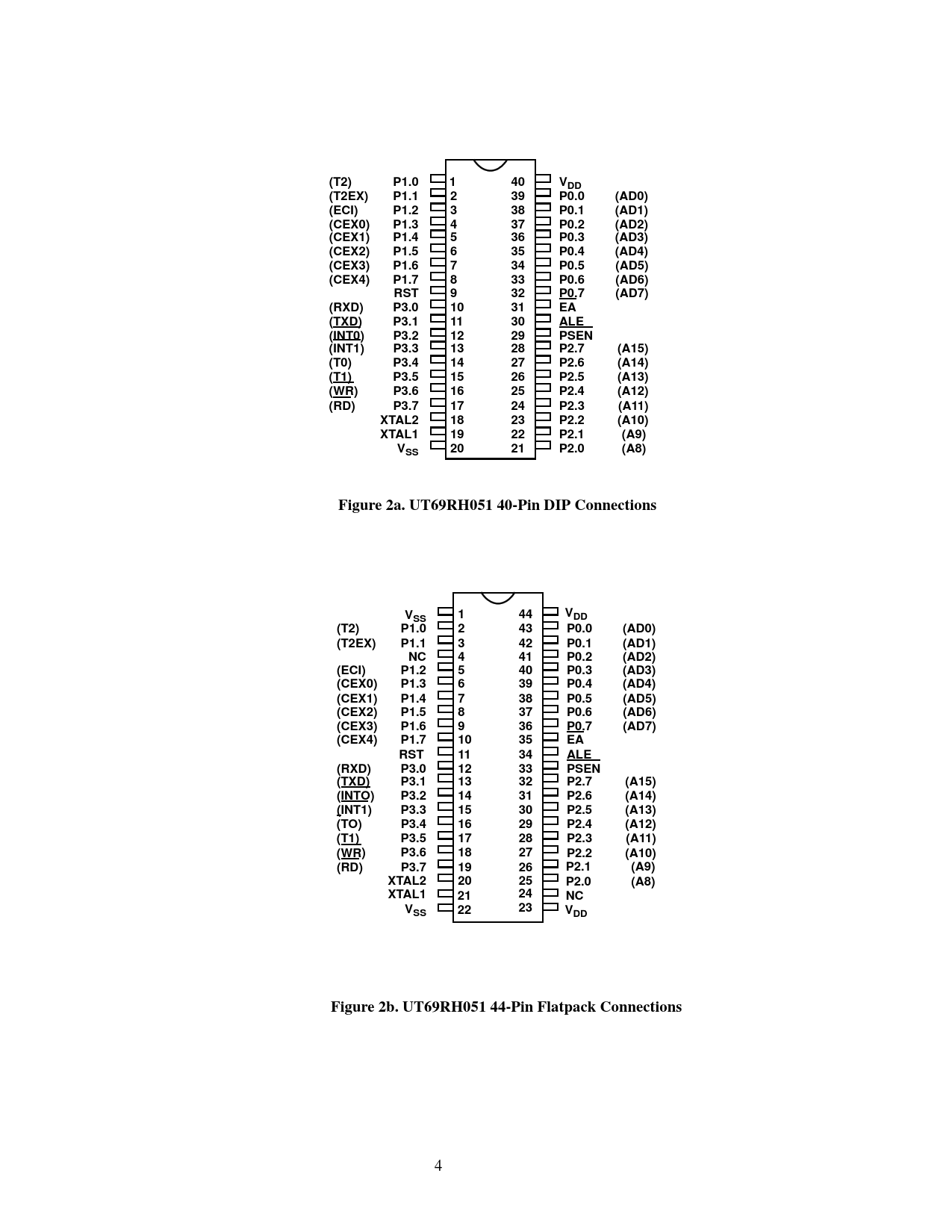

(T2) P1.0 1 40 VDD (T2EX) P1.1 2 39 P0.0 (AD0) (ECI) P1.2 3 38 P0.1 (AD1) (CEX0) P1.3 4 37 P0.2 (AD2) (CEX1) P1.4 5 36 P0.3 (AD3) (CEX2) P1.5 6 35 P0.4 (AD4) (CEX3) P1.6 7 34 P0.5 (AD5) (CEX4) P1.7 8 33 P0.6 (AD6) RST 9 32 P0.7 (AD7) (RXD) P3.0 10 31 EA (TXD) P3.1 11 30 ALE (INT0) P3.2 12 29 PSEN (INT1) P3.3 13 28 P2.7 (A15) (T0) P3.4 14 27 P2.6 (A14) (T1) P3.5 15 26 P2.5 (A13) (WR) P3.6 16 25 P2.4 (A12) (RD) P3.7 17 24 P2.3 (A11) XTAL2 18 23 P2.2 (A10) XTAL1 19 22 P2.1 (A9) VSS 20 21 P2.0 (A8) Figure 2a. UT69RH051 40-Pin DIP Connections V V SS 1 44 DD (T2) P1.0 2 43 P0.0 (AD0) (T2EX) P1.1 3 42 P0.1 (AD1) NC 4 41 P0.2 (AD2) (ECI) P1.2 5 40 P0.3 (AD3) (CEX0) P1.3 6 39 P0.4 (AD4) (CEX1) P1.4 7 38 P0.5 (AD5) (CEX2) P1.5 8 37 P0.6 (AD6) (CEX3) P1.6 9 36 P0.7 (AD7) (CEX4) P1.7 10 35 EA RST 11 34 ALE (RXD) P3.0 12 33 PSEN (TXD) P3.1 13 32 P2.7 (A15) (INTO) P3.2 14 31 P2.6 (A14) (INT1) P3.3 15 30 P2.5 (A13) (TO) P3.4 16 29 P2.4 (A12) (T1) P3.5 17 28 P2.3 (A11) (WR) P3.6 18 27 P2.2 (A10) (RD) P3.7 19 26 P2.1 (A9) XTAL2 20 25 P2.0 (A8) XTAL1 21 24 NC VSS 22 23 VDD Figure 2b. UT69RH051 44-Pin Flatpack Connections
