Datasheet AL3353 (Diodes) - 3
| Manufacturer | Diodes |
| Description | High Performance Boost LED Controller |
| Pages / Page | 15 / 3 — AL3353. Functional Block Diagram. Absolute Maximum Ratings. Symbol. … |
| File Format / Size | PDF / 368 Kb |
| Document Language | English |

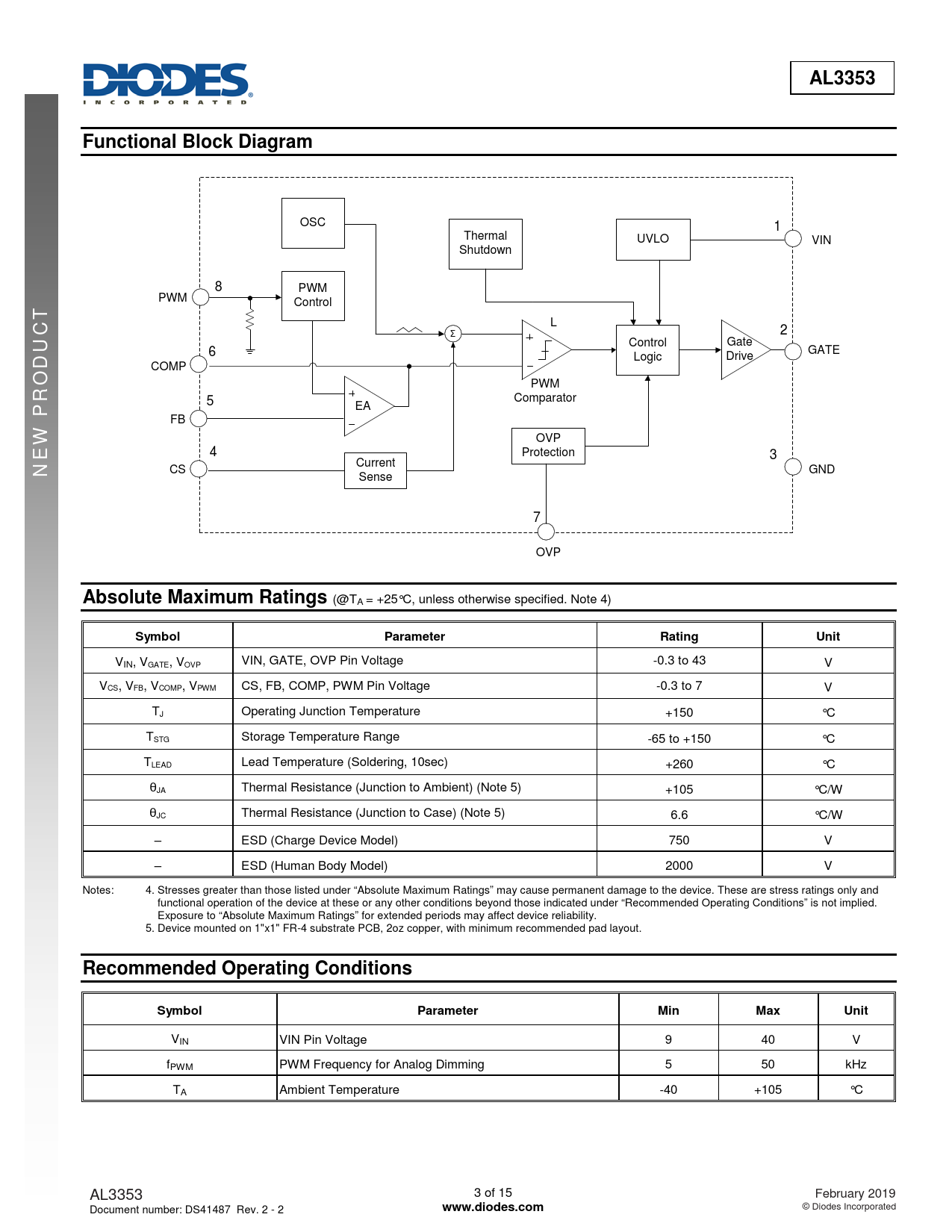

AL3353. Functional Block Diagram. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. Recommended Operating Conditions. Min. Max
Model Line for this Datasheet
Text Version of Document
AL3353 Functional Block Diagram
OSC 1 Thermal UVLO VIN Shutdown 8 PWM PWM
T
Control L 2
UC
Σ Control Gate 6 GATE Logic Drive
OD
COMP
R
PWM Comparator 5
P
EA FB
W
OVP 4 Protection 3
NE
Current CS GND Sense 7 OVP
Absolute Maximum Ratings
(@TA = +25°C, unless otherwise specified. Note 4)
Symbol Parameter Rating Unit
VIN, VGATE, VOVP VIN, GATE, OVP Pin Voltage -0.3 to 43 V VCS, VFB, VCOMP, VPWM CS, FB, COMP, PWM Pin Voltage -0.3 to 7 V TJ Operating Junction Temperature +150 °C TSTG Storage Temperature Range -65 to +150 °C TLEAD Lead Temperature (Soldering, 10sec) +260 °C θJA Thermal Resistance (Junction to Ambient) (Note 5) +105 °C/W θJC Thermal Resistance (Junction to Case) (Note 5) 6.6 °C/W – ESD (Charge Device Model) 750 V – ESD (Human Body Model) 2000 V Notes: 4. Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability. 5. Device mounted on 1"x1" FR-4 substrate PCB, 2oz copper, with minimum recommended pad layout.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VIN VIN Pin Voltage 9 40 V fPWM PWM Frequency for Analog Dimming 5 50 kHz TA Ambient Temperature -40 +105 °C AL3353 3 of 15 February 2019 Document number: DS41487 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated Document Outline Pin Assignments Description Applications Features
