ADuM3123. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 9. Maximum Continuous Working Voltage1 Parameter. Max. Unit. Constraint
Model Line for this Datasheet
Text Version of Document
link to page 14

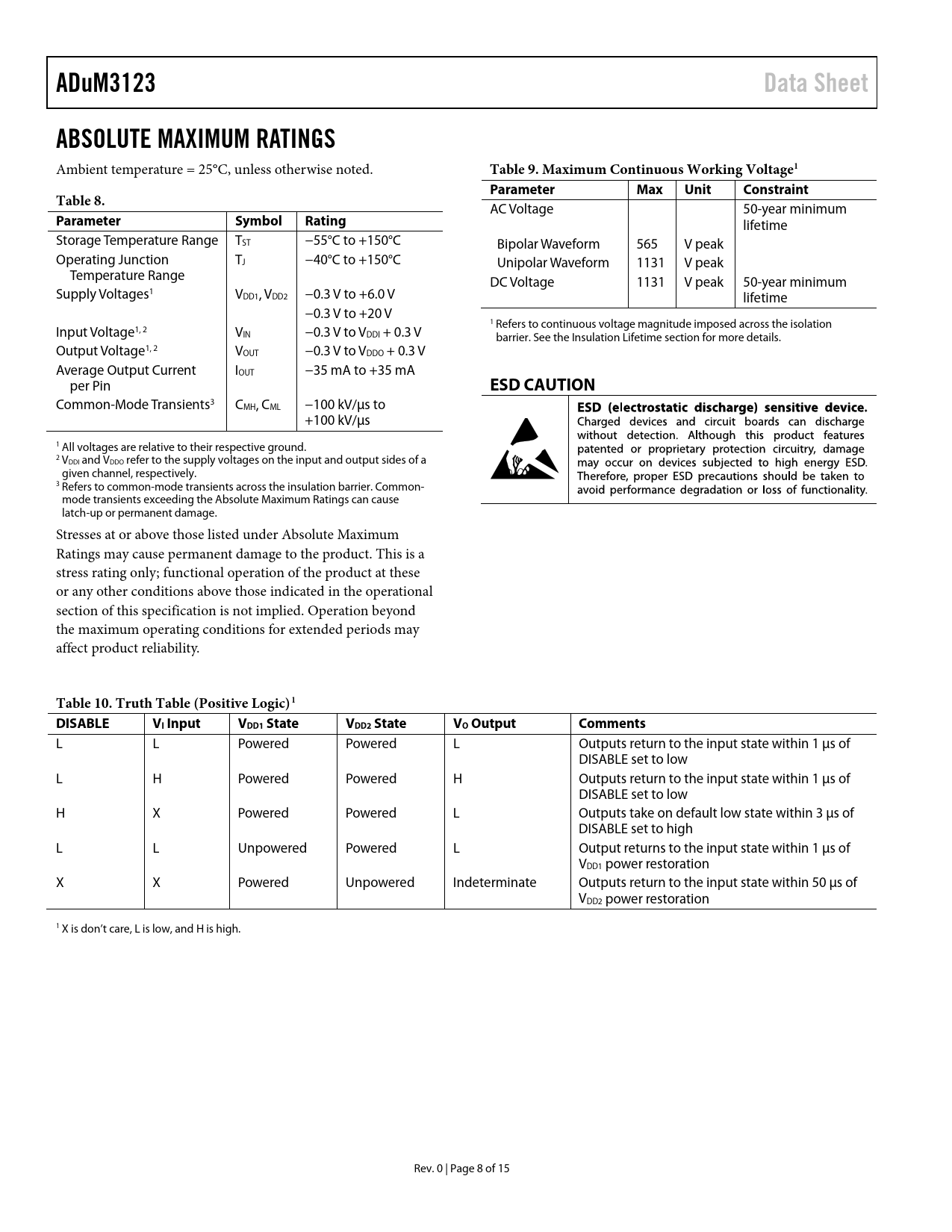

ADuM3123 Data Sheet ABSOLUTE MAXIMUM RATINGS
Ambient temperature = 25°C, unless otherwise noted.
Table 9. Maximum Continuous Working Voltage1 Parameter Max Unit Constraint Table 8.
AC Voltage 50-year minimum
Parameter Symbol Rating
lifetime Storage Temperature Range TST −55°C to +150°C Bipolar Waveform 565 V peak Operating Junction TJ −40°C to +150°C Unipolar Waveform 1131 V peak Temperature Range DC Voltage 1131 V peak 50-year minimum Supply Voltages1 VDD1, VDD2 −0.3 V to +6.0 V lifetime −0.3 V to +20 V 1 Refers to continuous voltage magnitude imposed across the isolation Input Voltage1, 2 VIN −0.3 V to VDDI + 0.3 V barrier. See the Insulation Lifetime section for more details. Output Voltage1, 2 VOUT −0.3 V to VDDO + 0.3 V Average Output Current IOUT −35 mA to +35 mA per Pin
ESD CAUTION
Common-Mode Transients3 CMH, CML −100 kV/µs to +100 kV/µs 1 All voltages are relative to their respective ground. 2 VDDI and VDDO refer to the supply voltages on the input and output sides of a given channel, respectively. 3 Refers to common-mode transients across the insulation barrier. Common- mode transients exceeding the Absolute Maximum Ratings can cause latch-up or permanent damage. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability.
Table 10. Truth Table (Positive Logic)1 DISABLE VI Input VDD1 State VDD2 State VO Output Comments
L L Powered Powered L Outputs return to the input state within 1 µs of DISABLE set to low L H Powered Powered H Outputs return to the input state within 1 µs of DISABLE set to low H X Powered Powered L Outputs take on default low state within 3 µs of DISABLE set to high L L Unpowered Powered L Output returns to the input state within 1 µs of VDD1 power restoration X X Powered Unpowered Indeterminate Outputs return to the input state within 50 µs of VDD2 power restoration 1 X is don’t care, L is low, and H is high. Rev. 0 | Page 8 of 15 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics—5 V Operation Electrical Characteristics—3.3 V Operation Package Characteristics Insulation and Safety Related Specifications Regulatory Information DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Printed Circuit Board (PCB) Layout Propagation Delay Related Parameters Thermal Limitations and Switch Load Characteristics Output Load Characteristics DC Correctness and Magnetic Field Immunity Power Consumption Insulation Lifetime Outline Dimensions Ordering Guide
