Datasheet MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G (ON Semiconductor) - 2
| Manufacturer | ON Semiconductor |
| Description | Schottky Power Rectifier, Surface Mount, 1.0 A, 100 V |
| Pages / Page | 4 / 2 — MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G. MAXIMUM RATINGS. … |
| Revision | 13 |
| File Format / Size | PDF / 56 Kb |
| Document Language | English |

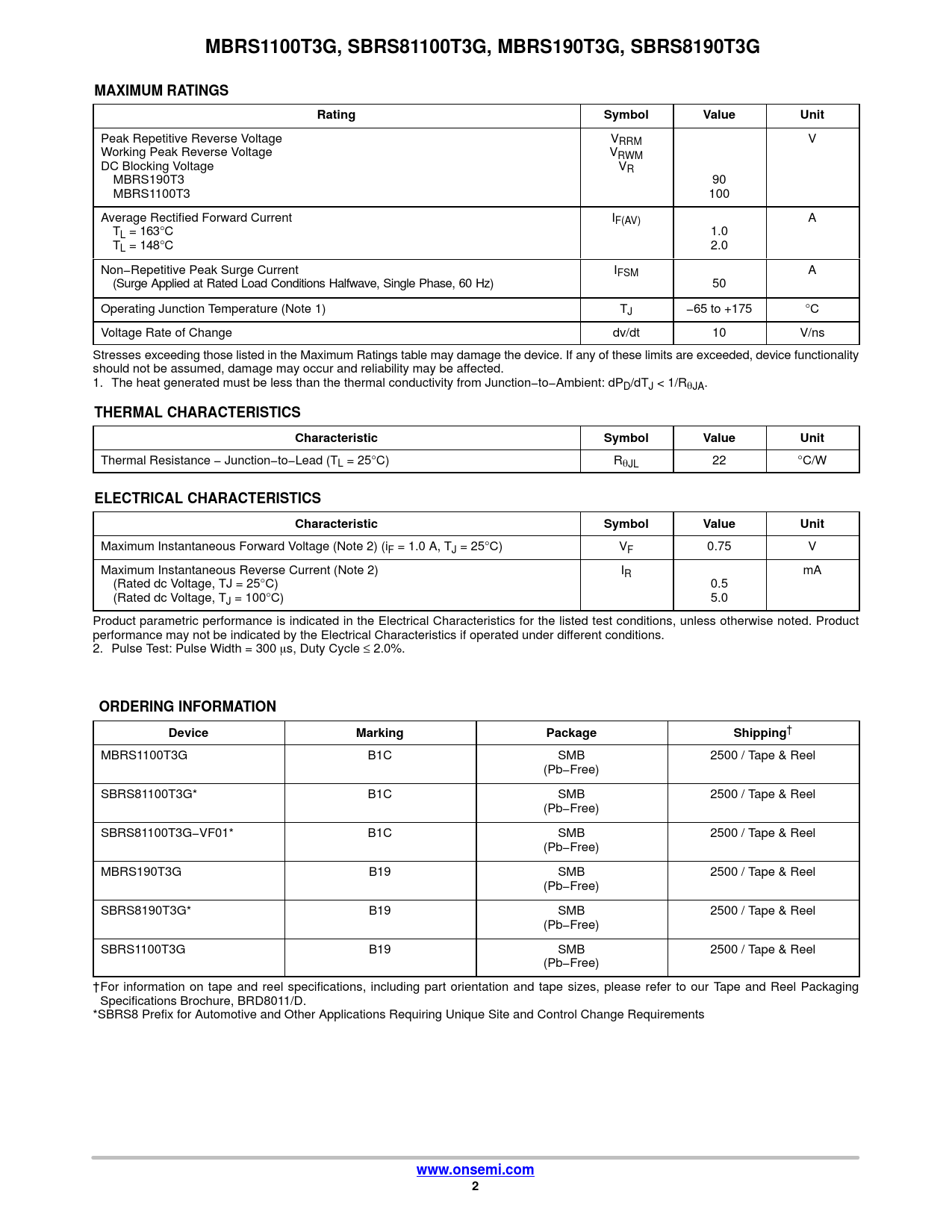

MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. THERMAL CHARACTERISTICS
Model Line for this Datasheet
Text Version of Document
link to page 2 link to page 2 link to page 2
MBRS1100T3G, SBRS81100T3G, MBRS190T3G, SBRS8190T3G MAXIMUM RATINGS Rating Symbol Value Unit
Peak Repetitive Reverse Voltage VRRM V Working Peak Reverse Voltage VRWM DC Blocking Voltage VR MBRS190T3 90 MBRS1100T3 100 Average Rectified Forward Current IF(AV) A TL = 163°C 1.0 TL = 148°C 2.0 Non−Repetitive Peak Surge Current IFSM A (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) 50 Operating Junction Temperature (Note 1) TJ −65 to +175 °C Voltage Rate of Change dv/dt 10 V/ns Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dPD/dTJ < 1/RqJA.
THERMAL CHARACTERISTICS Characteristic Symbol Value Unit
Thermal Resistance − Junction−to−Lead (TL = 25°C) RqJL 22 °C/W
ELECTRICAL CHARACTERISTICS Characteristic Symbol Value Unit
Maximum Instantaneous Forward Voltage (Note 2) (iF = 1.0 A, TJ = 25°C) VF 0.75 V Maximum Instantaneous Reverse Current (Note 2) IR mA (Rated dc Voltage, TJ = 25°C) 0.5 (Rated dc Voltage, TJ = 100°C) 5.0 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%.
ORDERING INFORMATION Device Marking Package Shipping
† MBRS1100T3G B1C SMB 2500 / Tape & Reel (Pb−Free) SBRS81100T3G* B1C SMB 2500 / Tape & Reel (Pb−Free) SBRS81100T3G−VF01* B1C SMB 2500 / Tape & Reel (Pb−Free) MBRS190T3G B19 SMB 2500 / Tape & Reel (Pb−Free) SBRS8190T3G* B19 SMB 2500 / Tape & Reel (Pb−Free) SBRS1100T3G B19 SMB 2500 / Tape & Reel (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *SBRS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
www.onsemi.com 2
