Datasheet IRF7832TRPBF (Infineon)
| Manufacturer | Infineon |
| Description | HEXFET Power MOSFET |
| Pages / Page | 10 / 1 — Applications. DSS. RDS(on) max. 30V. 4.0m. @VGS = 10V 34nC. Benefits. … |
| File Format / Size | PDF / 269 Kb |
| Document Language | English |
Applications. DSS. RDS(on) max. 30V. 4.0m. @VGS = 10V 34nC. Benefits. Absolute Maximum Ratings. Parameter. Max. Units. Thermal Resistance. Typ
Model Line for this Datasheet
Text Version of Document

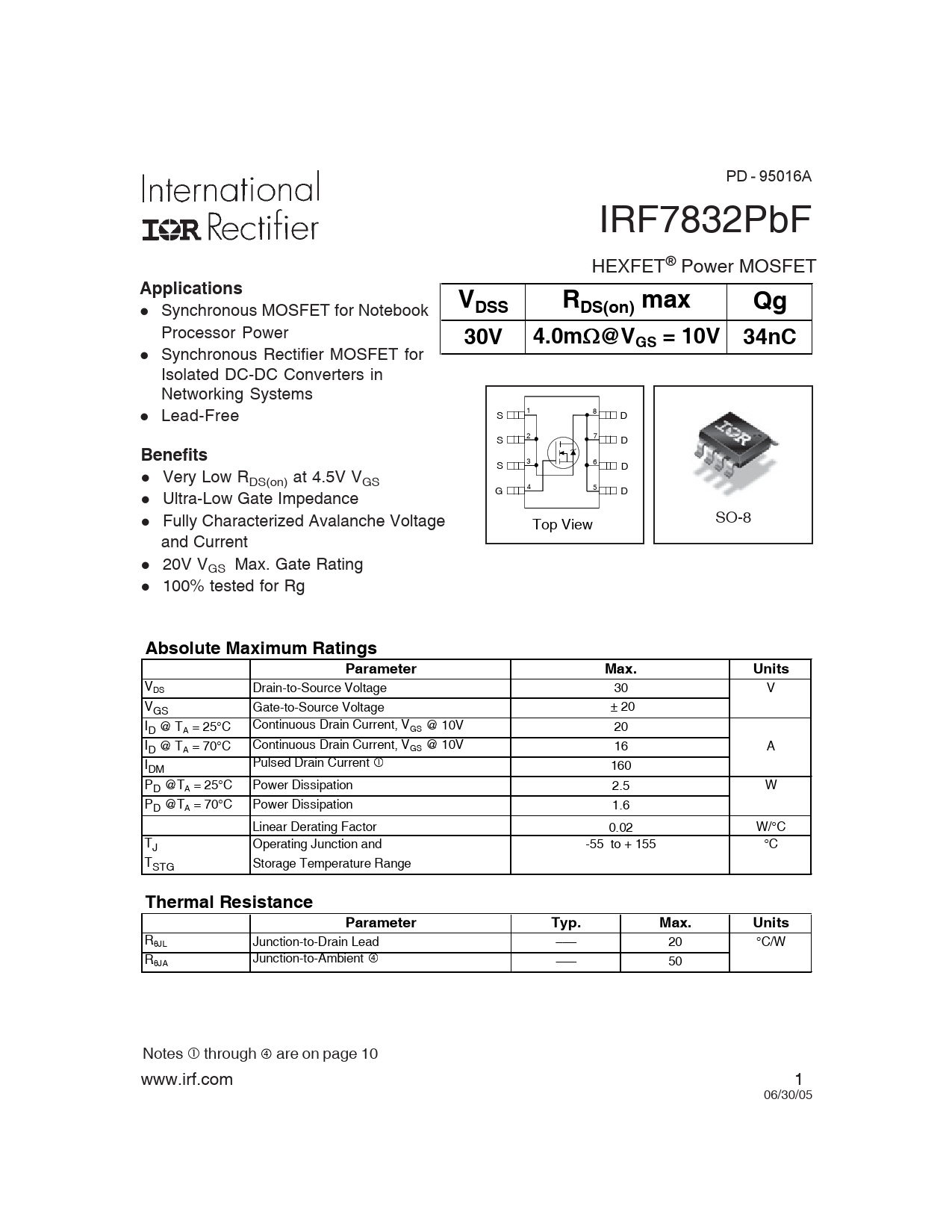

PD - 95016A IRF7832PbF HEXFET® Power MOSFET
Applications V
l Synchronous MOSFET for Notebook
DSS RDS(on) max Qg
Processor Power
30V 4.0m
:
@VGS = 10V 34nC
l Synchronous Rectifier MOSFET for Isolated DC-DC Converters in Networking Systems A A l Lead-Free 1 8 S D 2 7 S D
Benefits
3 6 S D l Very Low RDS(on) at 4.5V VGS 4 5 G D l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage Top View SO-8 and Current l 20V VGS Max. Gate Rating l 100% tested for Rg
Absolute Maximum Ratings Parameter Max. Units
VDS Drain-to-Source Voltage 30 V VGS Gate-to-Source Voltage ± 20 ID @ TA = 25°C Continuous Drain Current, VGS @ 10V 20 ID @ TA = 70°C Continuous Drain Current, VGS @ 10V 16 A I Pulsed Drain Current DM c 160 PD @TA = 25°C Power Dissipation 2.5 W PD @TA = 70°C Power Dissipation 1.6 Linear Derating Factor 0.02 W/°C TJ Operating Junction and -55 to + 155 °C TSTG Storage Temperature Range
Thermal Resistance Parameter Typ. Max. Units
RθJL Junction-to-Drain Lead ––– 20 °C/W R Junction-to-Ambient θJA f ––– 50 Notes through are on page 10 www.irf.com 1 06/30/05
