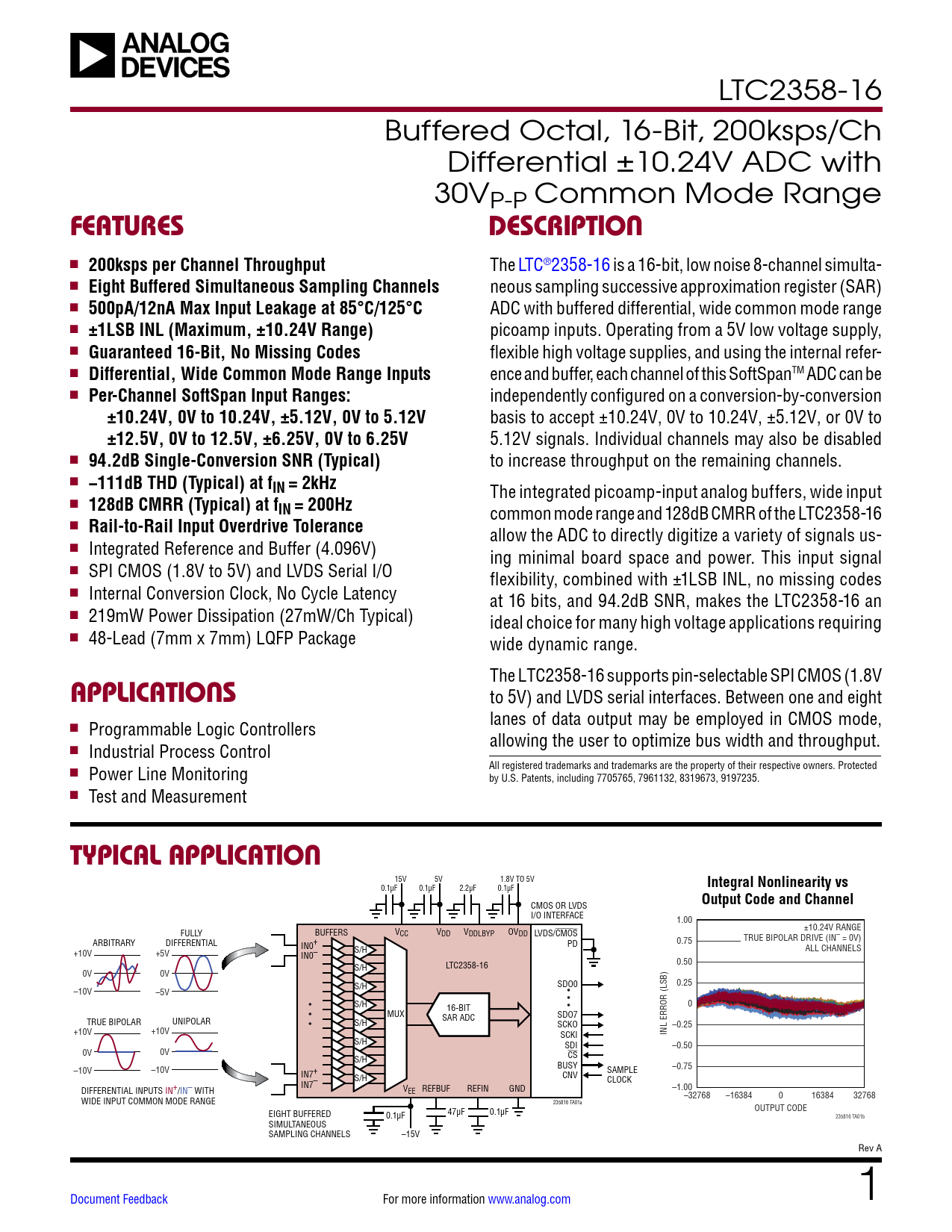

FEATURES. DESCRIPTION. 200ksps per Channel Throughput. Eight Buffered Simultaneous Sampling Channels
Model Line for this Datasheet
Text Version of Document
LTC2358-16 Buffered Octal, 16-Bit, 200ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range
FEATURES DESCRIPTION
n
200ksps per Channel Throughput
The LTC®2358-16 is a 16-bit, low noise 8-channel simulta- n
Eight Buffered Simultaneous Sampling Channels
neous sampling successive approximation register (SAR) n
500pA/12nA Max Input Leakage at 85°C/125°C
ADC with buffered differential, wide common mode range n
±1LSB INL (Maximum, ±10.24V Range)
picoamp inputs. Operating from a 5V low voltage supply, n
Guaranteed 16-Bit, No Missing Codes
flexible high voltage supplies, and using the internal refer- n
Differential, Wide Common Mode Range Inputs
ence and buffer, each channel of this SoftSpanTM ADC can be n
Per-Channel SoftSpan Input Ranges:
independently configured on a conversion-by-conversion
±10.24V, 0V to 10.24V, ±5.12V, 0V to 5.12V
basis to accept ±10.24V, 0V to 10.24V, ±5.12V, or 0V to
±12.5V, 0V to 12.5V, ±6.25V, 0V to 6.25V
5.12V signals. Individual channels may also be disabled n
94.2dB Single-Conversion SNR (Typical)
to increase throughput on the remaining channels. n
−111dB THD (Typical) at fIN = 2kHz
The integrated picoamp-input analog buffers, wide input n
128dB CMRR (Typical) at fIN = 200Hz
common mode range and 128dB CMRR of the LTC2358-16 n
Rail-to-Rail Input Overdrive Tolerance
al ow the ADC to directly digitize a variety of signals us- n Integrated Reference and Buffer (4.096V) ing minimal board space and power. This input signal n SPI CMOS (1.8V to 5V) and LVDS Serial I/O flexibility, combined with ±1LSB INL, no missing codes n Internal Conversion Clock, No Cycle Latency at 16 bits, and 94.2dB SNR, makes the LTC2358-16 an n 219mW Power Dissipation (27mW/Ch Typical) ideal choice for many high voltage applications requiring n 48-Lead (7mm x 7mm) LQFP Package wide dynamic range. The LTC2358-16 supports pin-selectable SPI CMOS (1.8V
APPLICATIONS
to 5V) and LVDS serial interfaces. Between one and eight lanes of data output may be employed in CMOS mode, n Programmable Logic Controllers allowing the user to optimize bus width and throughput. n Industrial Process Control All registered trademarks and trademarks are the property of their respective owners. Protected n Power Line Monitoring by U.S. Patents, including 7705765, 7961132, 8319673, 9197235. n Test and Measurement
TYPICAL APPLICATION
